Omnitron Systems 4395 14 Module Chassis, 19 Inch Display, The FlexPoint Powered Chassis IS A 19

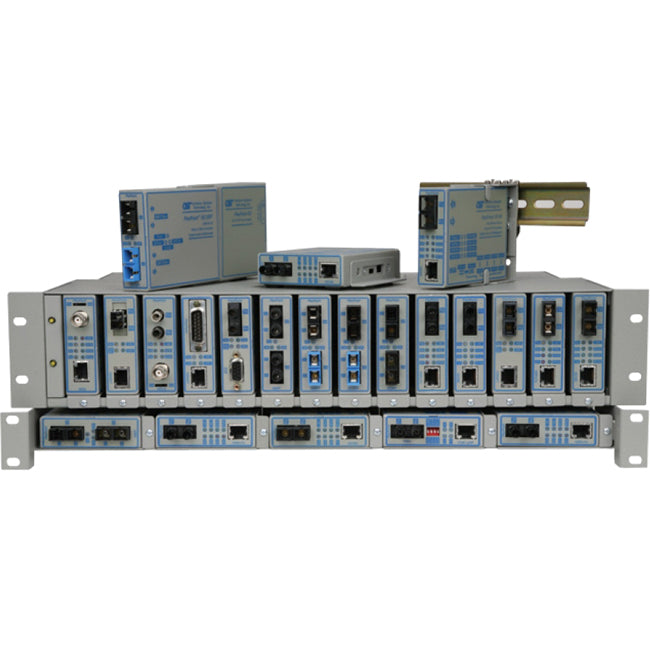

Omnitron Systems 4395 14-Module Chassis

The FlexPoint Powered Chassis is a 19" rack-mount chassis that houses up to 14 standalone FlexPoint media converter modules. The redundant power supplies are essential where reliability is important, and in mission-critical applications to ensure continuous operation.

Both of the universal AC or DC power supplies are hot-swappable and can be used in any combination. In case of a failure, a power supply can be hot-replaced while the second power supply supports the operation of the chassis.

The power control logic of the Powered Chassis provides loadsharing between the power supplies, increasing reliability and operational lifetime. The control logic provides power monitoring and an LED display for each supply in order to assist in status monitoring, rapid fault-isolation and network management.

The 14-Module Powered Chassis supports any combination of FlexPoint media converter modules which are individually secured and hot-swappable to ensure continuous operation.

• The FlexPoint Powered Chassis is a rack-mount 14-Module, power-redundant chassis for media converter modules


• Dual hot-swappable power supplies ensure continuous network operation


• LED displays provide network management with continuous power supply status monitoring


• Supports any combination of protocol-independent media converter modules and mixed media; saves space and makes installation and support easy


• Supports all FlexPoint media converter modules


• Converters are individually secured and hot-swappable for maximum connection reliability


• Standard 19" rack-mount dimensions allow spacesaving and convenient installation


• Available in AC and DC models


• Completely software independent with no installation of drivers required


• Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
