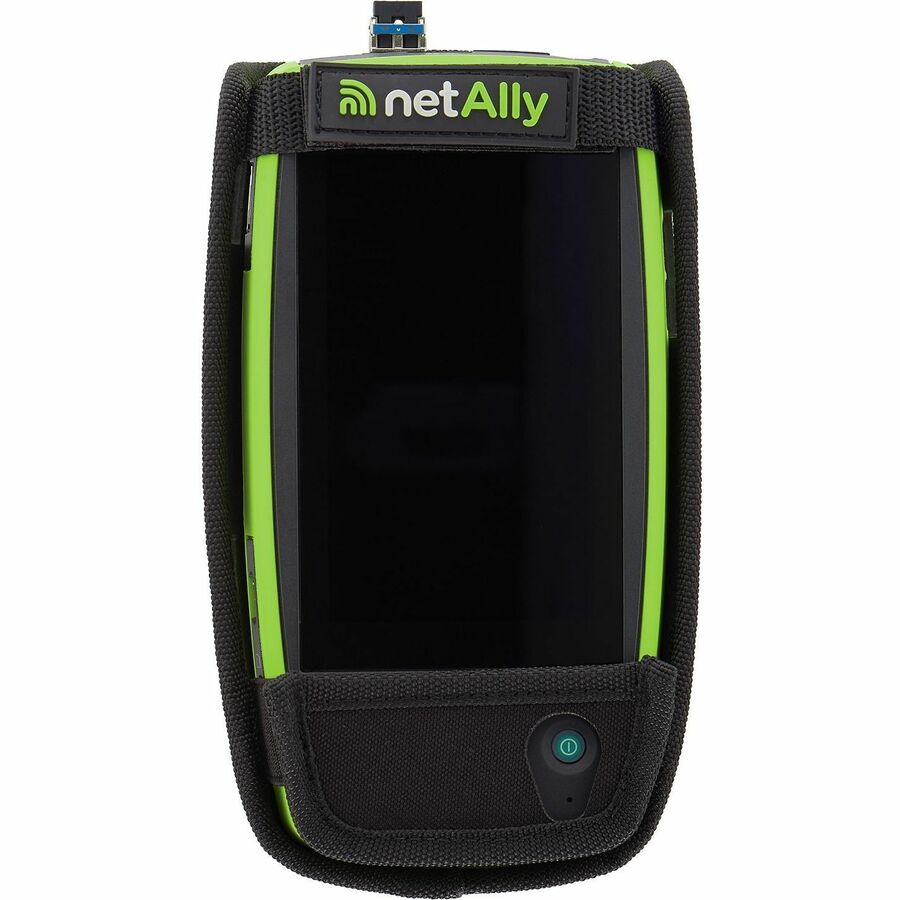

NetAlly LinkRunner LR10G-100 Network Testing Device

NetAlly LinkRunner LR10G-100 Network Testing Device

Cost-Effective, Line-Rate 10Gig Ethernet Testing

• Quickly test, verify, and troubleshoot 1Gig, Multi-Gig and 10Gig Ethernet (copper, fiber) including line-rate performance testing and packet capture


• Layer 1 - 7 AutoTest enables any technician to find network problems


• Monitor networks for intermittent issues, every minute for up to 24 hours

Overview

Introducing the new LinkRunner 10G, the most cost-effective solution for 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.

This next-generation Android-based tester delivers complete network validation and troubleshooting, from the media (copper/fiber) to the application (layers 1 - 7), accelerating deployments, speeding problem identification, and improving the efficiency and effectiveness of network installers and operations teams.

Key Features

• Install, test, verify, and troubleshoot technology upgrades, Multi-Gig (NBASE-T) and 10G networks with advanced AndroidTM-based troubleshooting apps and purpose-built test hardware


• Physical layer testing includes cable (TDR) testing, toning, wiremapping, and cable SNR (Signal-to-Noise Ratio) for multi-gig links


• Compatibility with standards compliant SFPs enables test and validation of any wired media (copper or fiber) for a variety of use models


• Validate up to 90W 802.3bt PSE with TruePower™ loaded Power over Ethernet (PoE) test

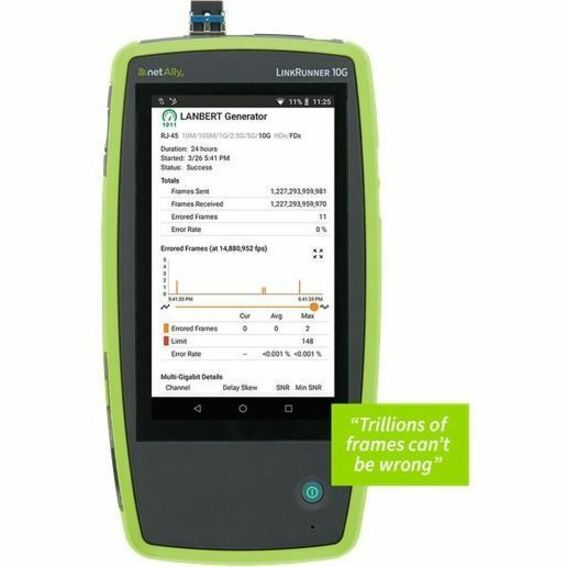

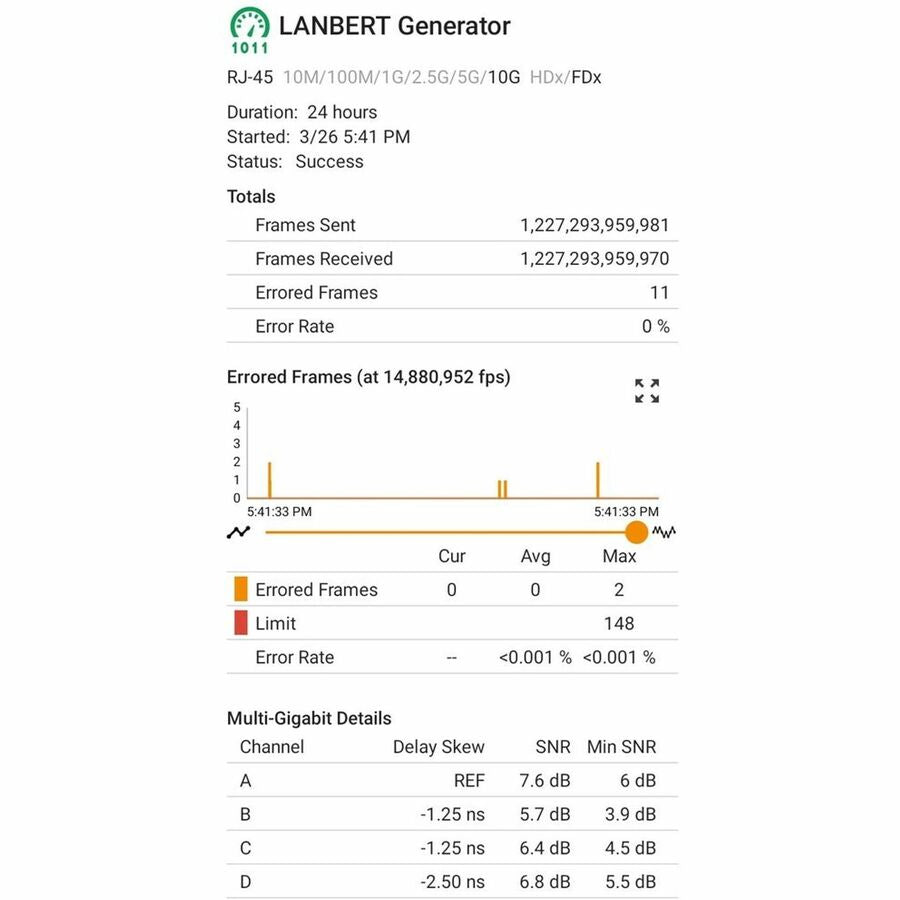

• Serves as a peer to the EtherScope nXG for line-rate performance testing to verify network capacity, performance and QoS, as well as service provider SLAs between sites


• Programmable periodic AutoTest monitors for intermittent issues with email notifications through the Link-Live cloud service


• Separate management port enables secure "out of band" remote control so centralized experts can efficiently assist technicians in the field


• Optional USB Wi-Fi/Bluetooth adapter for connectivity and remote control.


• Seamlessly consolidate and manage field test data, automate reporting, and integrate with network management systems via complimentary Link-Live Cloud Service
