MELLANOX MCP1600-C001 COMP DAC

Mellanox MCP1600-C001 Compatible TAA Compliant 100GBase-CU QSFP28 Direct Attach Cable (Passive Twinax, 1m)

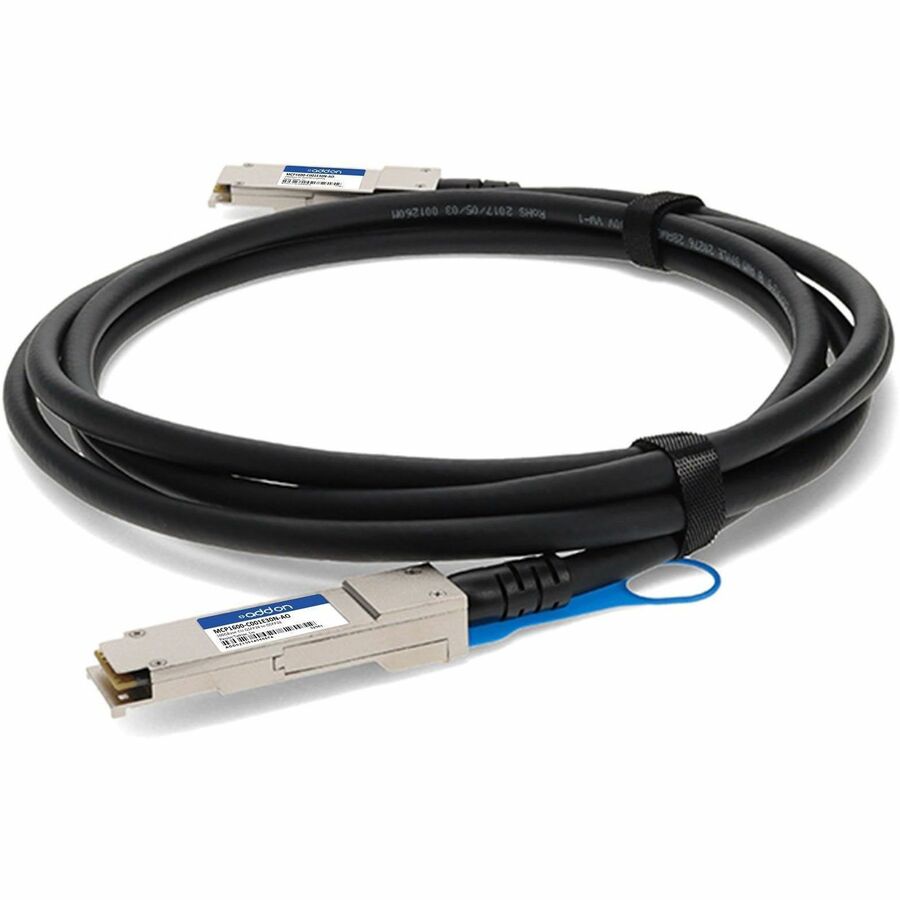

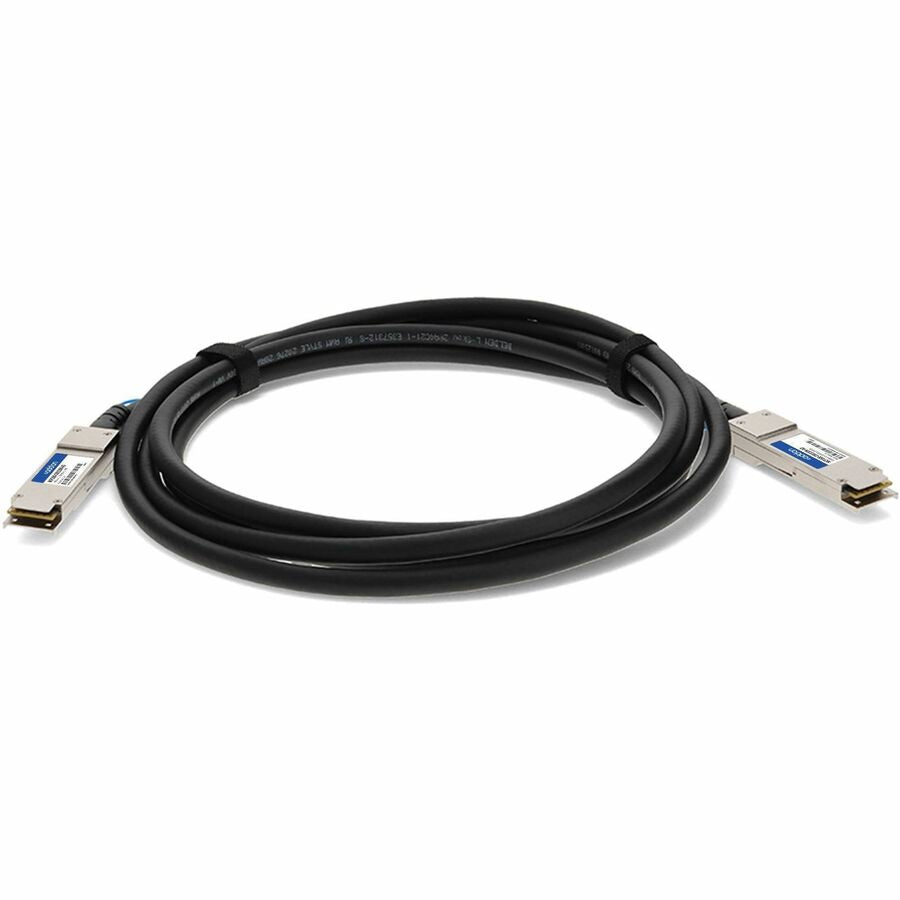

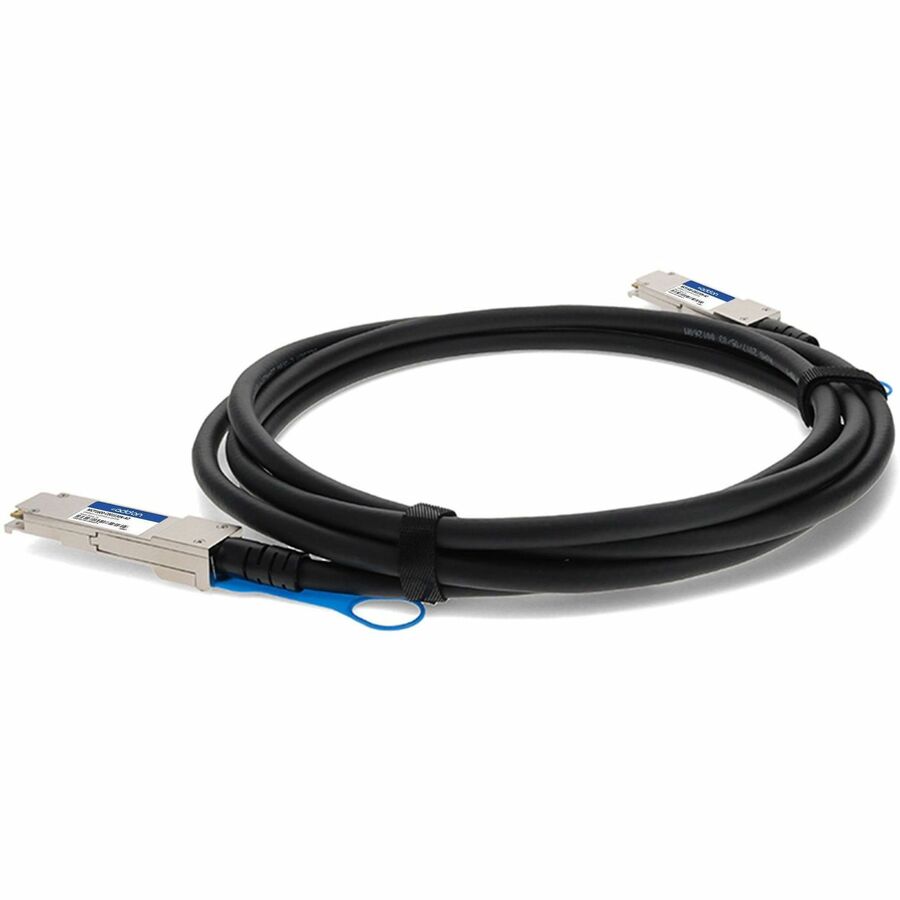

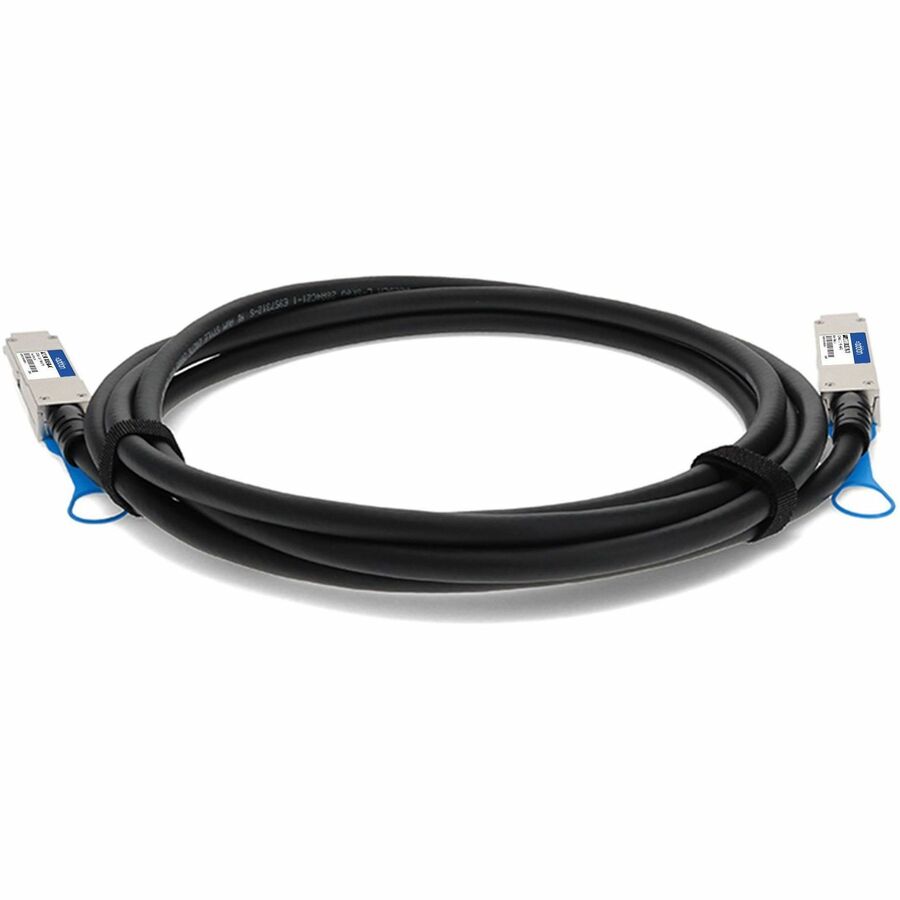

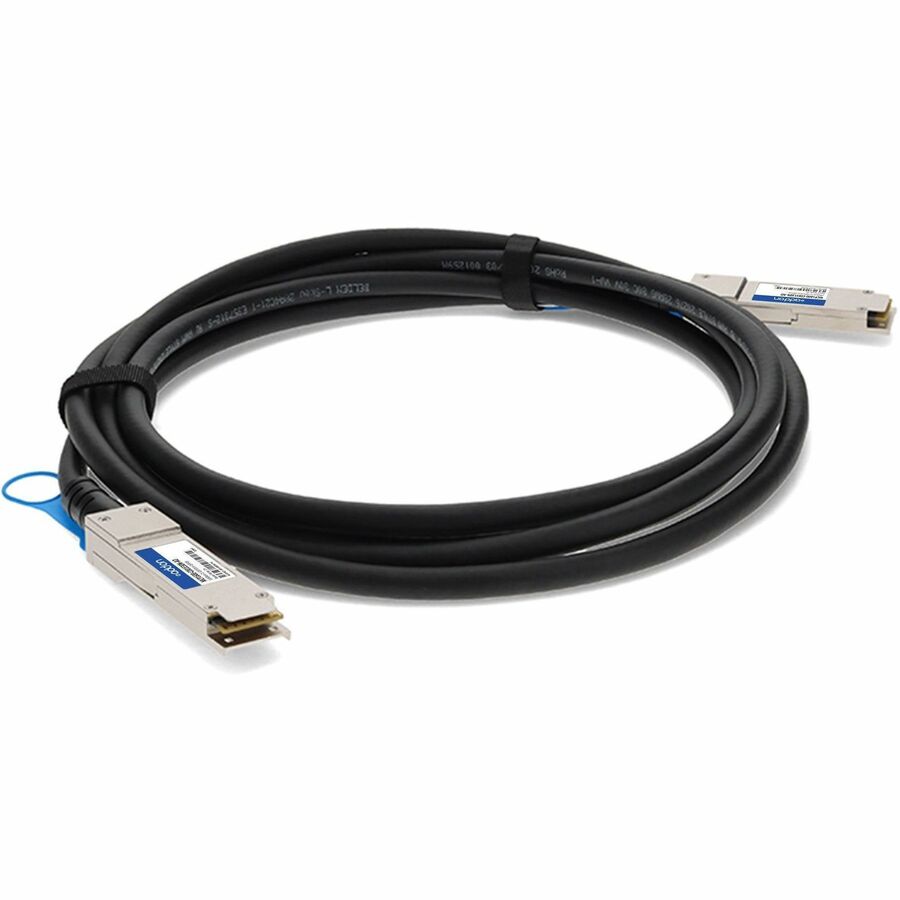

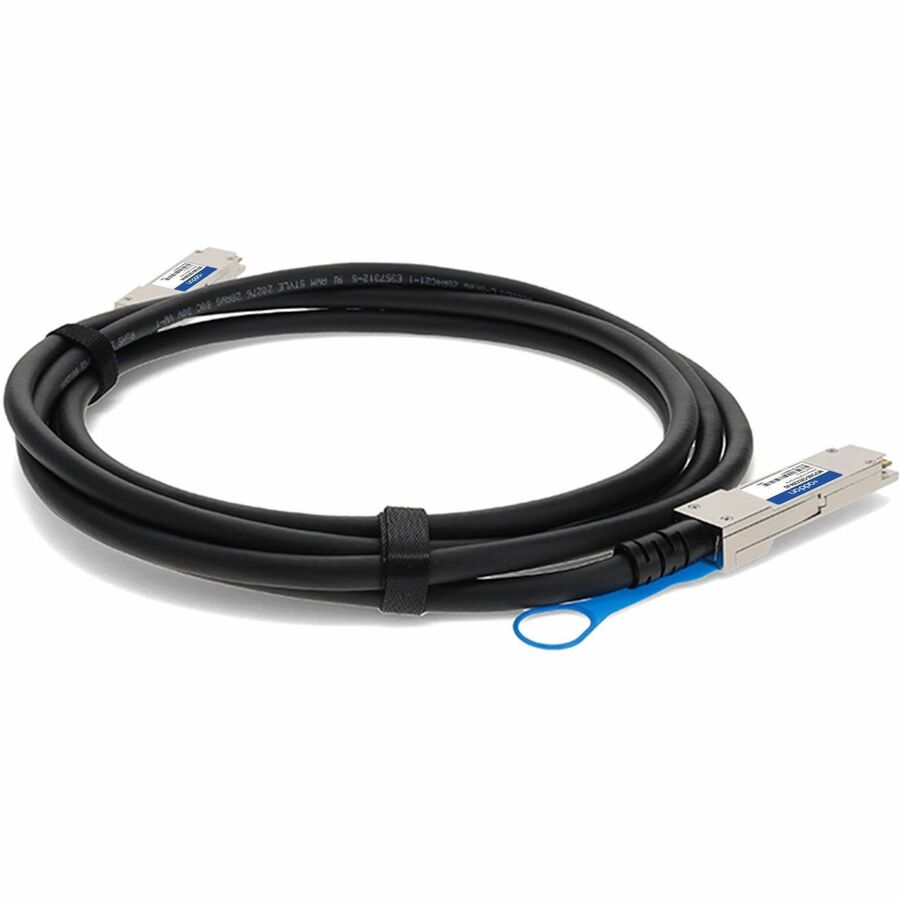

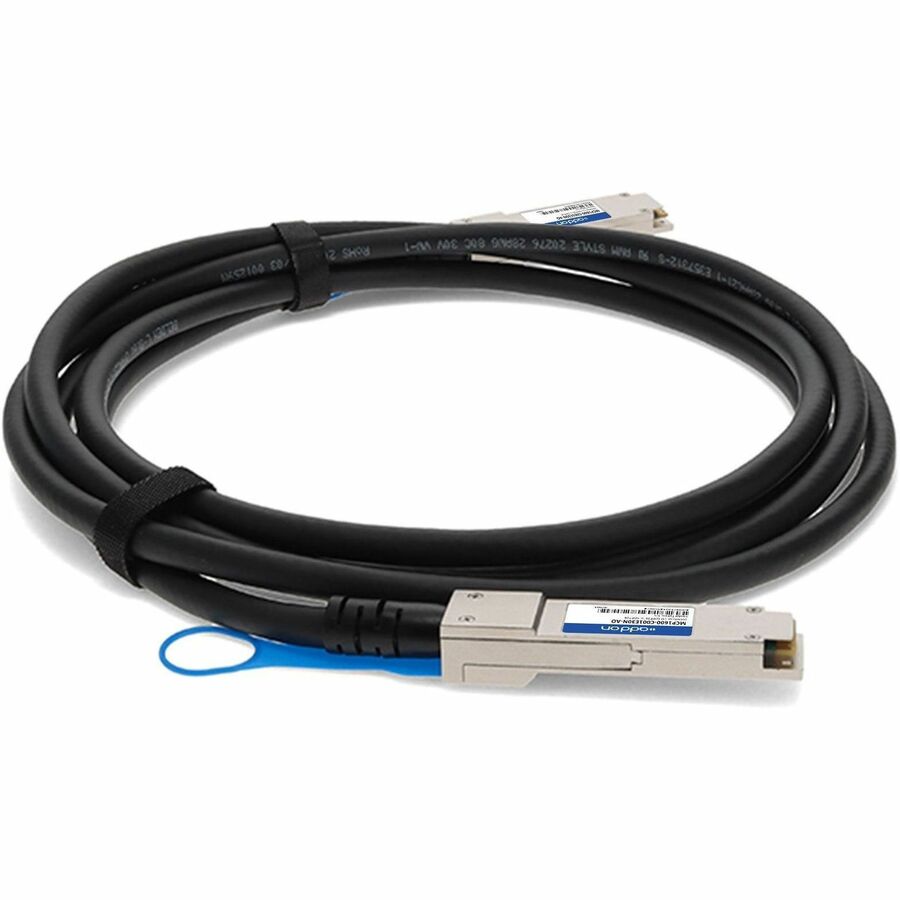

This is a Mellanox® MCP1600-C001 compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 1.0m (3.3ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

• Up to 100 Gbps bi-directional data links


• AC coupled inputs and outputs


• Compliant with QSFP28 MSA specifications


• All-metal housing for superior EMI performance


• Single power supply 3.3V, low power consumption


• 100 Ohm differential impedance


• ROHS Compliant


• Operating Temperature: 0 to 70 Celsius
