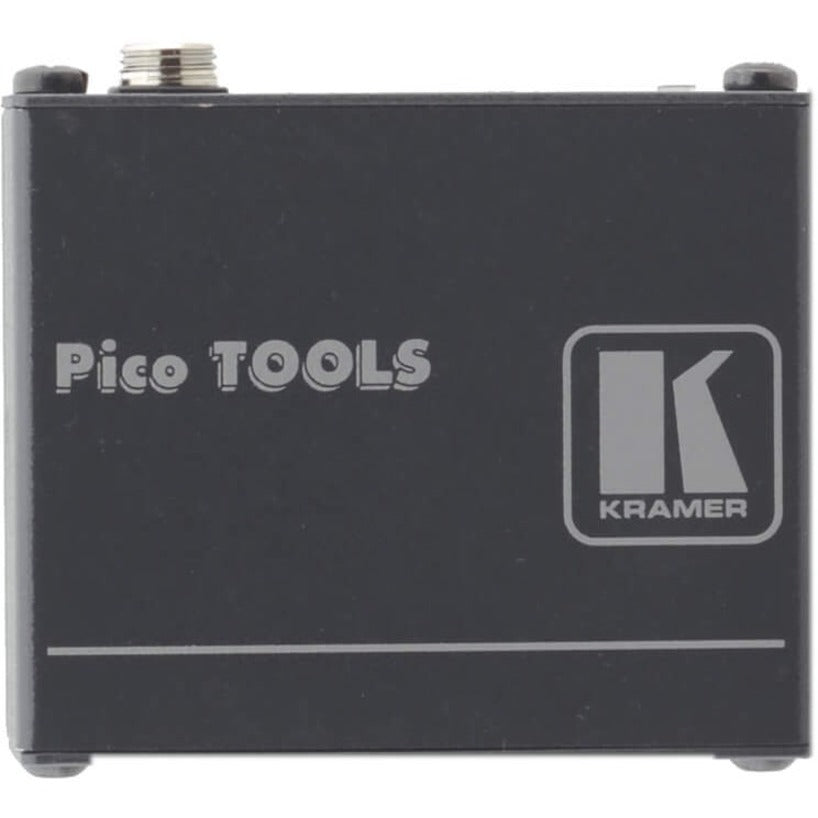

The PT-571 is a twisted pair transmitter for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572 converts the twisted pair signal back to an HDMI signal.

FEATURES

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)

HDTV Compatible

HDCP Compliant

DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables

HDMI Support

3D Pass-Through

System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly

EDID PassThru - Passes EDID signals between the source and display

Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached

Power Connect™ System - A single connection to the transmitter powers the receiver

Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel) HDTV Compatible HDCP Compliant DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables HDMI Support 3D Pass-Through System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly EDID PassThru - Passes EDID signals between the source and display Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached Power Connect™ System - A single connection to the transmitter powers the receiver Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter

• Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending


• 1080p supported video mode for pleasurable viewing and dependable usage

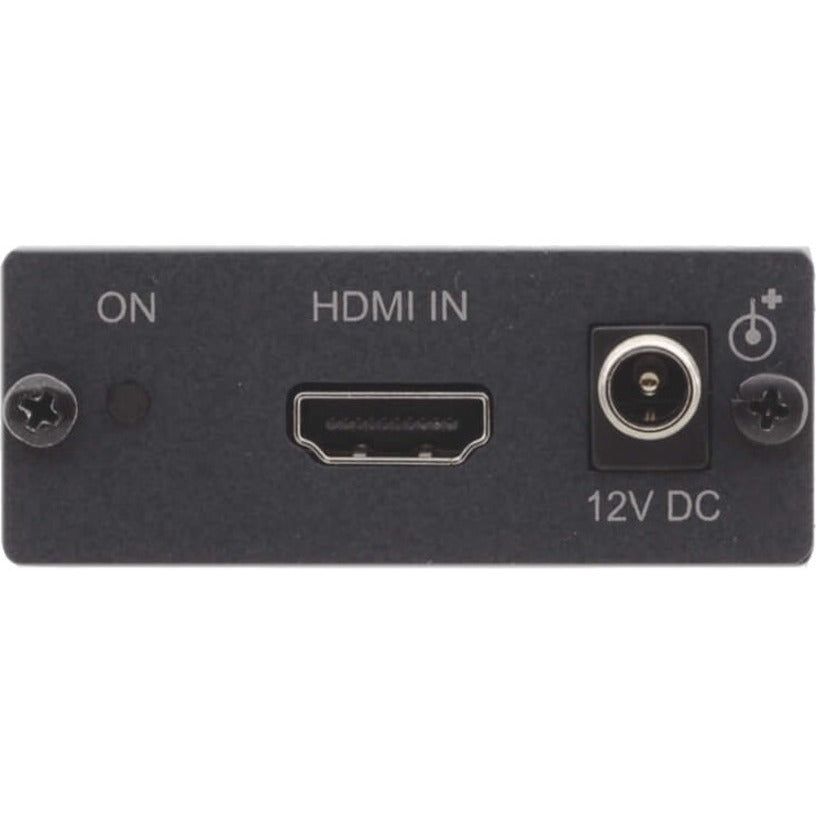

• HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability


• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference


• The PT-571 video extender transmitter provides plenty of freedom with wired connectivity


• 1 input devices supported for maximum productive usability


• 1 output devices supported to better accommodate your specific requirements


• 295.28 ft maximum operating distance for reliable coverage and maximum portability


• Rack-mountable form factor for added reliability and dependability
