IOGEAR GCS1808KITP Combo KVM Switch

IOGEAR GCS1808KITP Combo KVM Switch

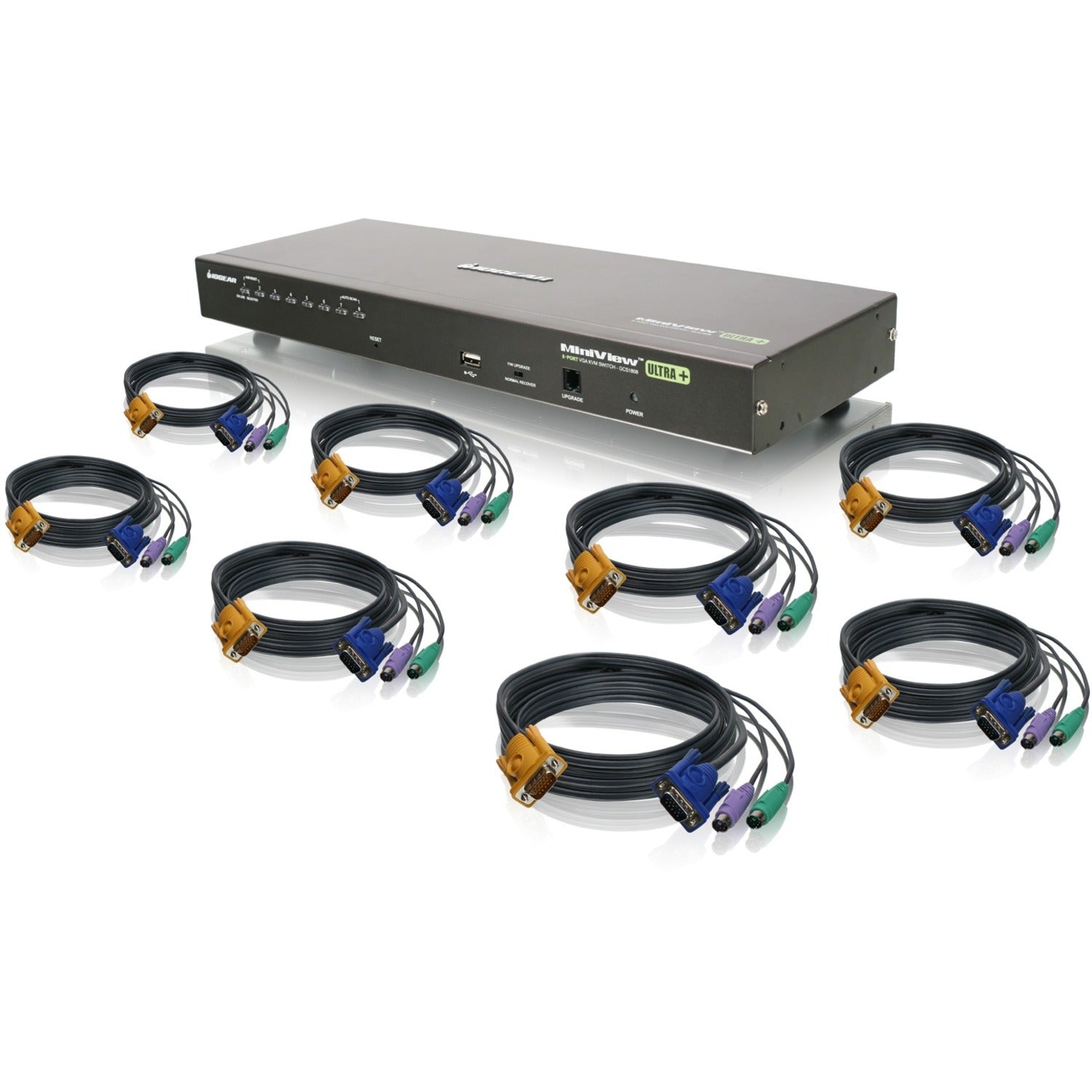

The GCS1808KITP KVM is a combo VGA switch that includes 8 PS/2 KVM cables (4 x 6ft and 4 x 10ft). Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KITP features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

• Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)


• Security - 2 level password protection for OSD


• Maximum video resolution: up to 2048 x 1536


• Cascade up to 2 levels* - control up to 128 computers from a single console


• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys


• Auto Scan Mode to monitor connected computers


• Broadcast Mode to send commands to all connected computers


• Equipped with 8 PS/2 KVM Cables (4 x 6ft and 4 x 10ft)


• Supports both USB and PS/2, VGA computers


• Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
