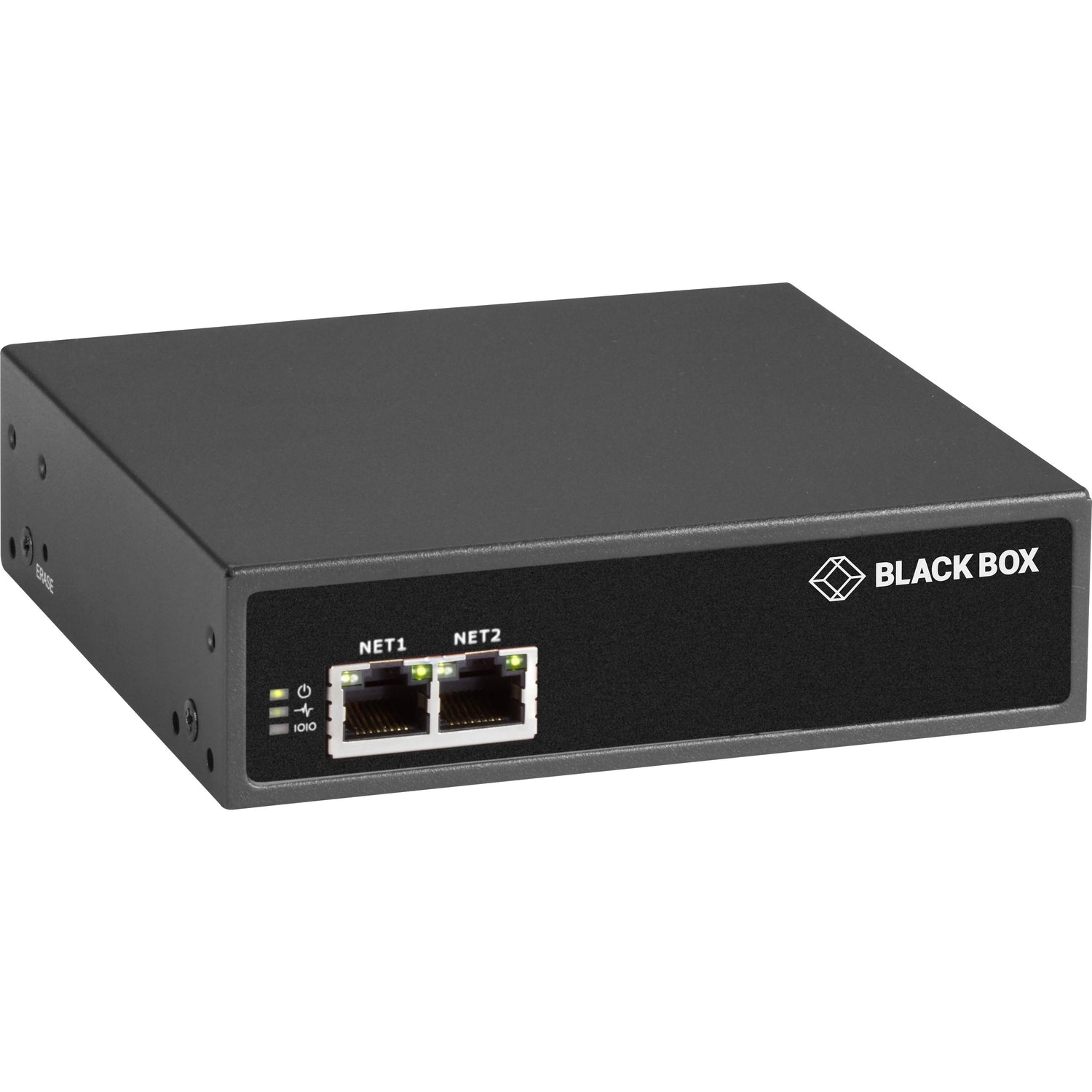

Black Box LES1600 Series Console Server - Cisco Pinout, 4-Port

Tight budgets and sparse IT staffing makes managing remote mission-critical IT, network, and power devices while meeting enterprise uptime requirements a challenge for IT managers.

The solution is the LES1604A Console Server with Cisco pinout. This highly reliable console server simplifies out-of-band management of your network, server and power infrastructure in data centers and remote sites.

Remote access and monitoring

Use it for easy and affordable out-of-band access to routers, switches, PDUs, firewalls, and other serial consoles. With dual Ethernet ports, the console server gives you control of your network and its physical environment for reliable 24/7 uptime. It provides serial console-port connectivity and supports environmental monitoring, power management and monitoring, plus remote site storage of off-line logs. It also gives you a way to configure and troubleshoot your network that is independent of your data network improving network reliability and availability.

The console server features everything you need to make remote management and fault recovery easy and affordable: an intuitive status monitoring dashboard, pro-active alerting, vendor-neutral power management and simple secure access to devices. You'll be able to maximize uptime while reducing the hassle and expense of truck rolls and remote site visits.

USB connectivity

In addition to the traditional RS-232 serial console port connections, the console server supports direct USB 2.0 connections to Cisco USB console ports (just use its embedded AJAX terminal for accessing the connected serial devices). The USB ports enable you to attach peripherals, such as storage and USB consoles.

Dual ports for built-in redundancy

Dual Gigabit Ethernet ports facilitate connections to primary and secondary networks. The server detects any communications failure on the primary port and switches to the second RJ-45 connection automatically. You can remotely cycle power and reboot computers, even when their operating system is unresponsive

• Built-in digital I/O and high voltage I/O


• Maintain network connectivity during failures with IP Passthrough


• Includes four USB 2.0 ports for managed device OS transfers.


• Features, simple, straight-through cable to Cisco-style serial consoles.


• Ideal for business with remote branches and limited IT staff, as well as co-location data centers.


• Federal Information Processing Standard (FIPS) 140-2 validated module for enhanced security.


• Dual Gigabit Ethernet ports with seamless auto-failover provide built-in redundancy.


• Get highly affordable, secure, remote network management of four devices.
