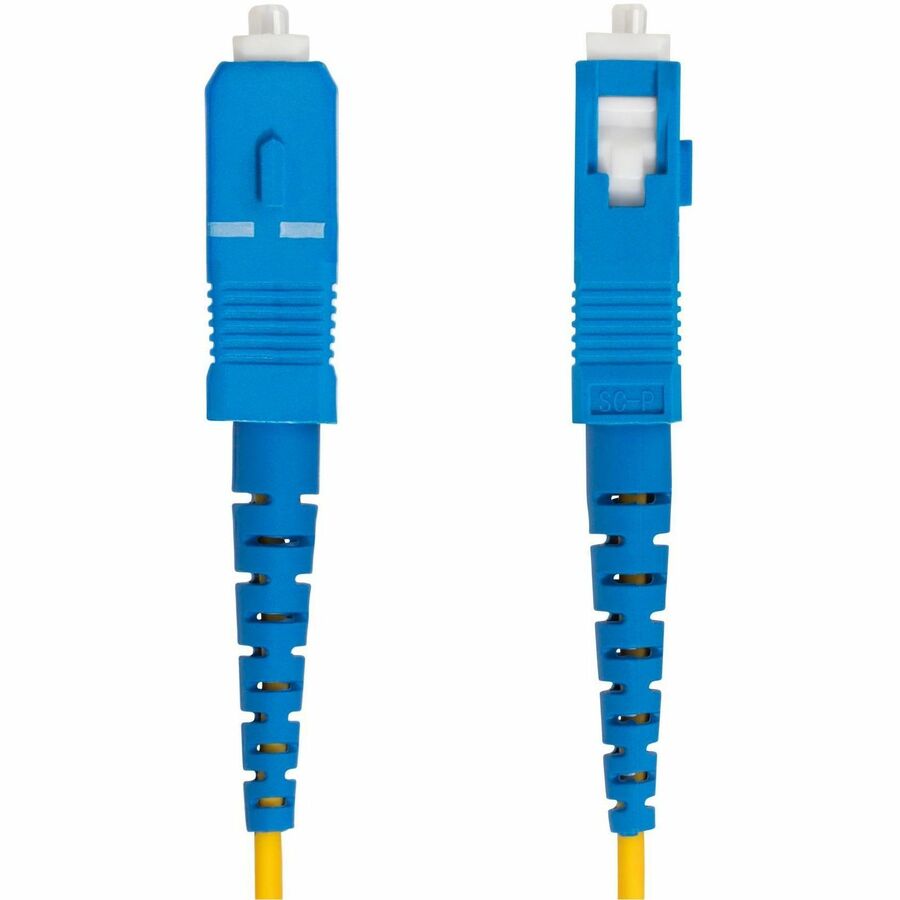

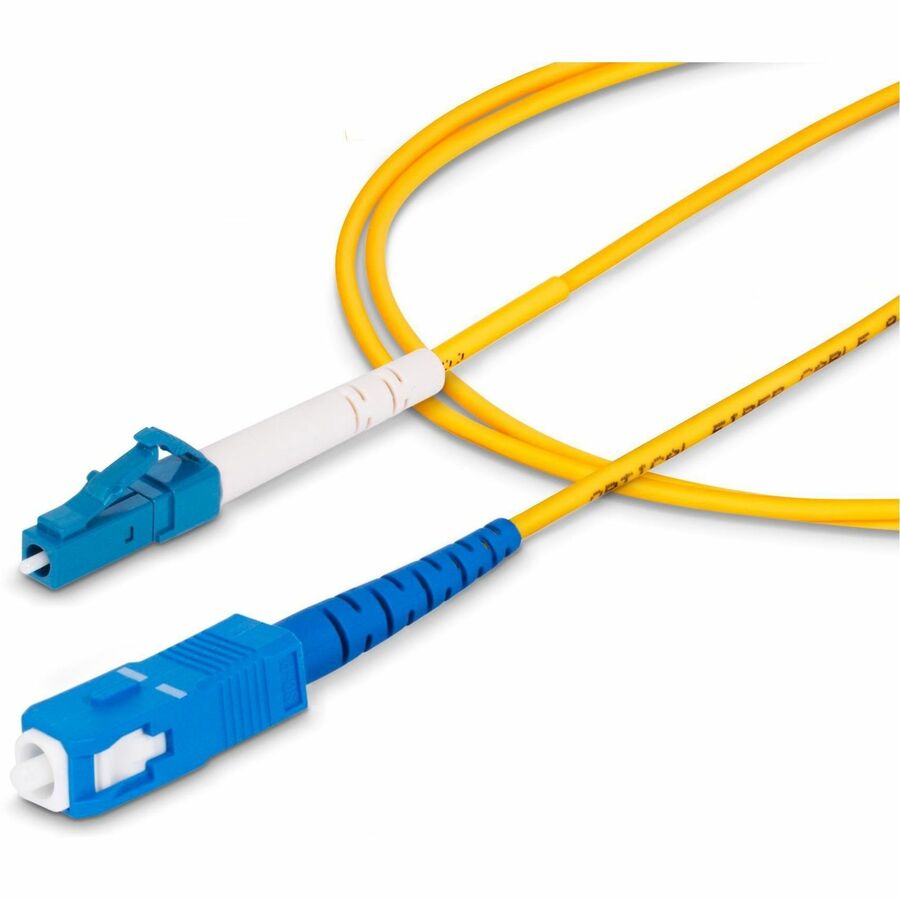

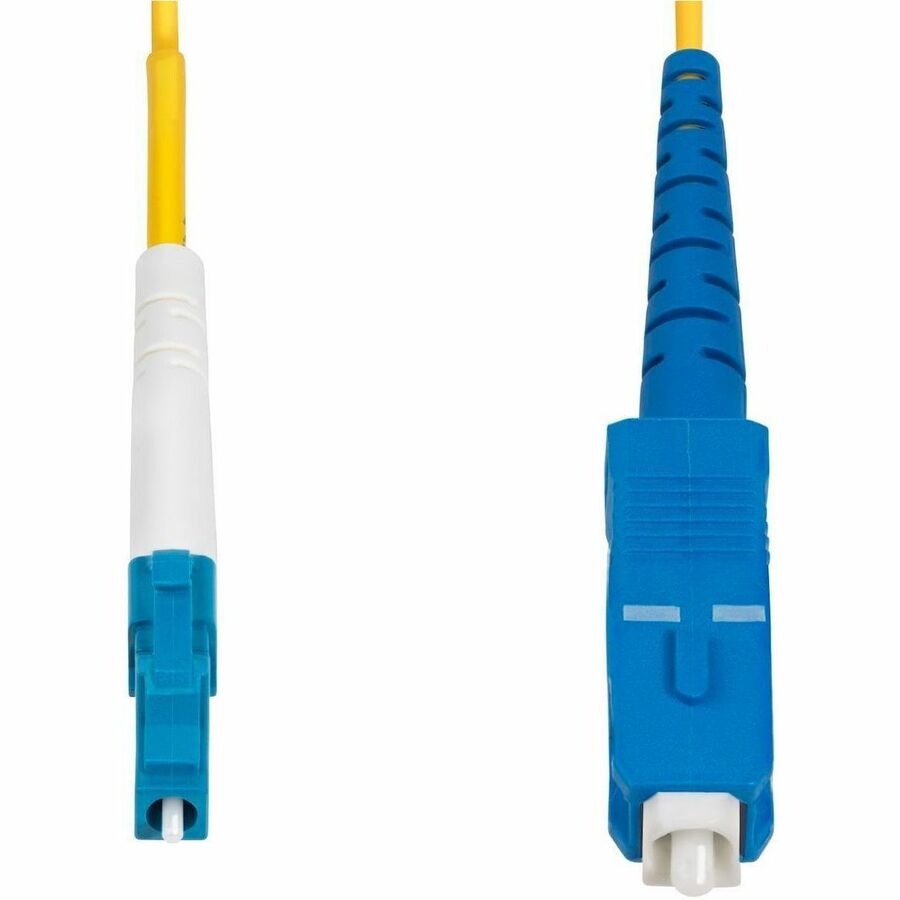

StarTech Com 30m LC TO SC OS2 Fiber, 30m Cable, Ceramic Construction, Compatible With OS1 Networks, Ensuring A Reliable Connection IN Legacy Fiber Environments

49.2ft LC/SC-UPC Simplex OS2 Single Mode fiber cable supports 40G/100G networks and bi-directional (BiDi) transmission over a single fiber - Ideal for space-constrained installations requiring minimal fiber count - UPC-polished ends for minimal return loss; Molded strain reliefs; Bend Insensitive Fiber Core w/Aramid-reinforced LSZH Jacket for a loaded bend radius of 6cm/3cm unloaded - For point-to-point setups or single-fiber SFPs - 9/125 m; OD: 2mm; Temp Range: -20 to 60C (-4 to 140F)

OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

• Experience a simpler way to connect devices with the entire business network


• Features Fiber Optic cable type for optimal performance and better dependability


• Ultra Physical Contact (UPC) feature for better reliability and ensure maximum productivity


• Fully compatible with storage devices
