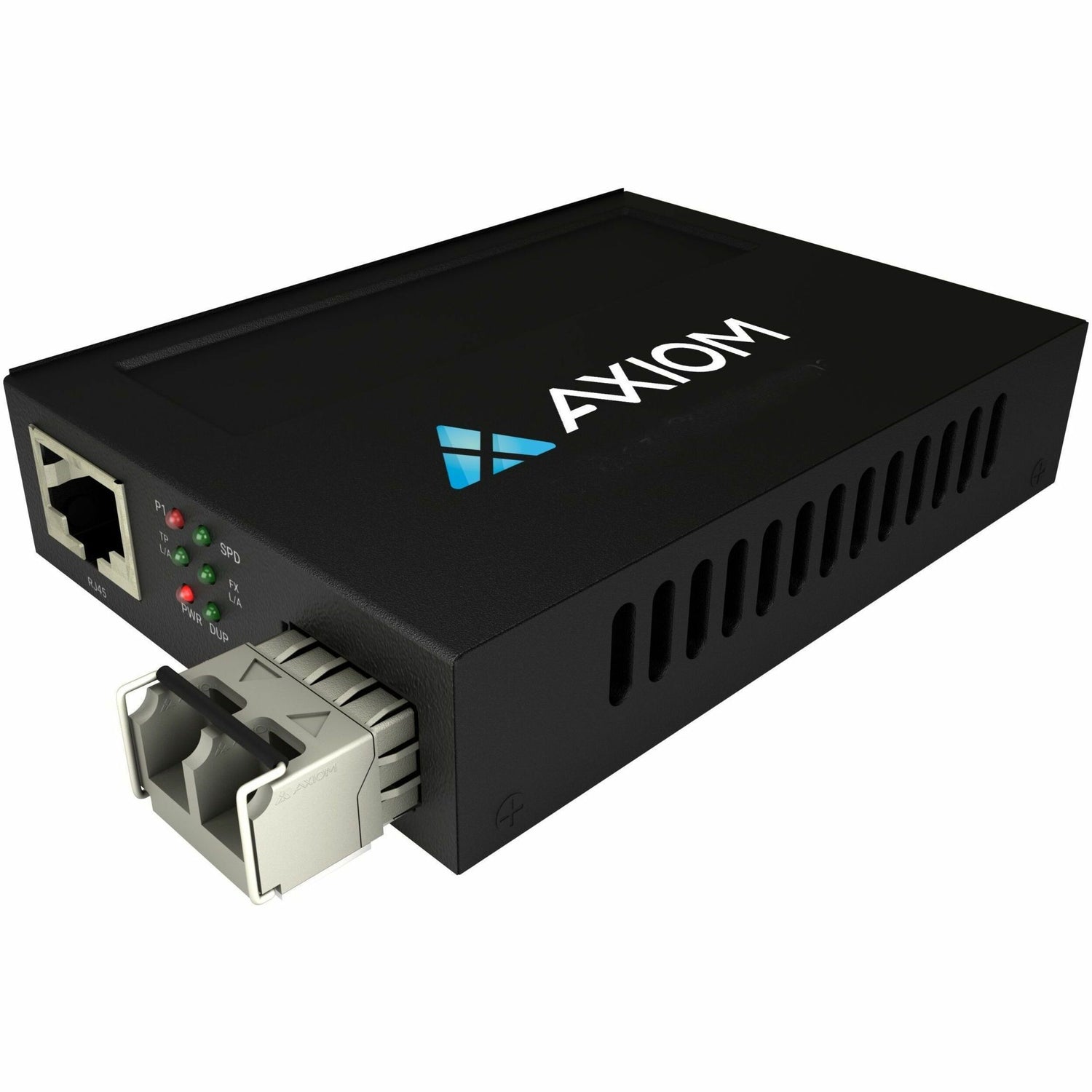

100MBS POE RJ45 TO 100BASE-FX

Axiom Transceiver/Media Converter

The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

Features:

• 10/100Base-TX UTP to 100Base-FX fiber media conversion


• IEEE802.3af PoE PSE compatible


• Built-in AC/DC power supply


• Over-current protection


• DIP switch to set different configurations


• LFP (Link Fault Pass-through) support

• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices


• Connect different types of media within a network with this single port


• With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
