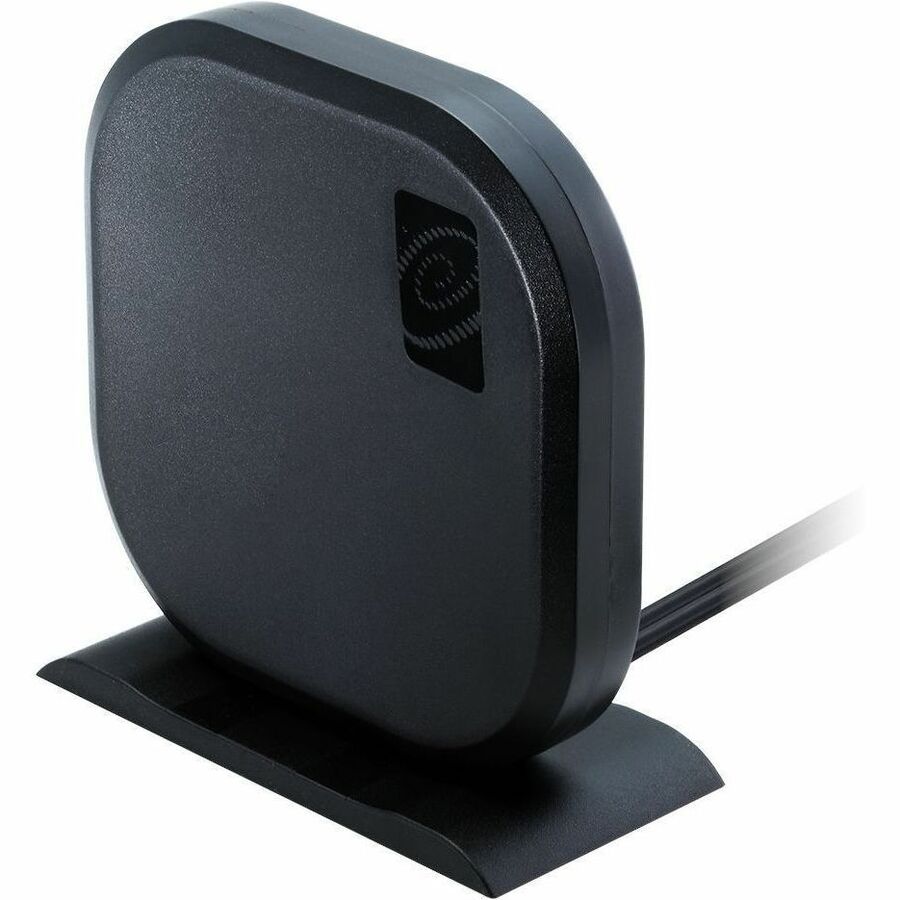

Taoglas Gemini LMA101 Antenna

Taoglas Gemini LMA101 Antenna

Taoglas Gemini LMA101 is a 2* 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent

self-interference and the low loss CFD-200 cables are used to keep efficiency high over longer cable lengths of up to 5 meters.

This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust

external enclosure is fully IP67 rated.

Typical Applications include:

• HD Real-time Streaming Video over LTE


• Intelligent Transport Systems


• Digital Signage and HD Broadcast Systems


• Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality.

• Provides optimized pattern coverage with 600 MHz to 6000 MHz frequency


• Designed for outdoor applications


• Antenna can be mounted as desktop/magnetic mount
