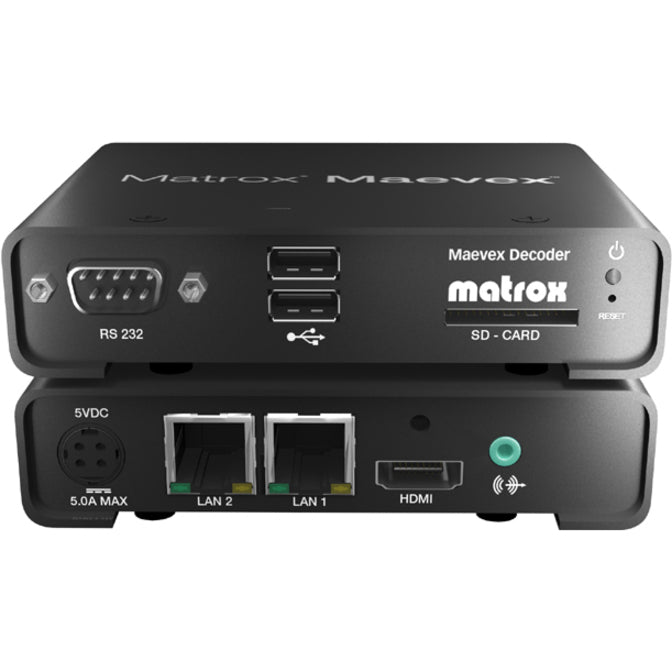

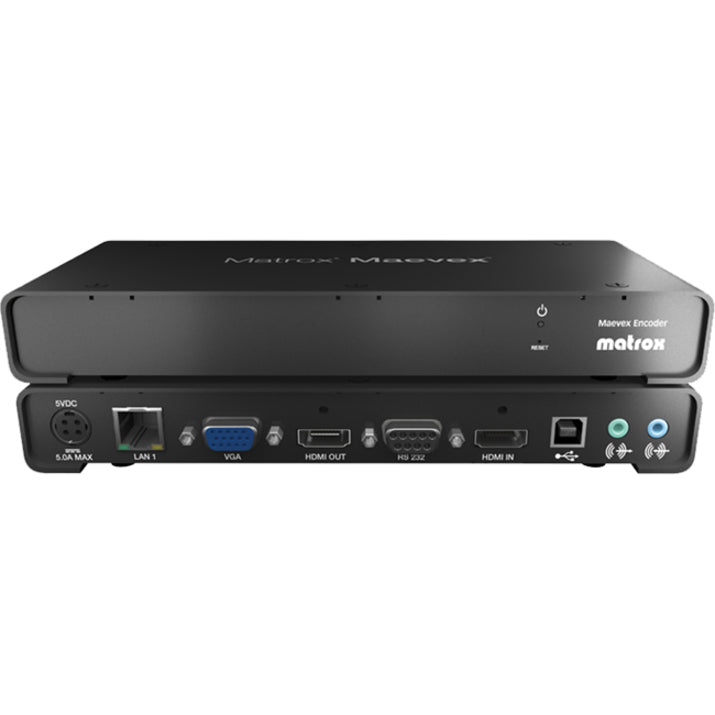

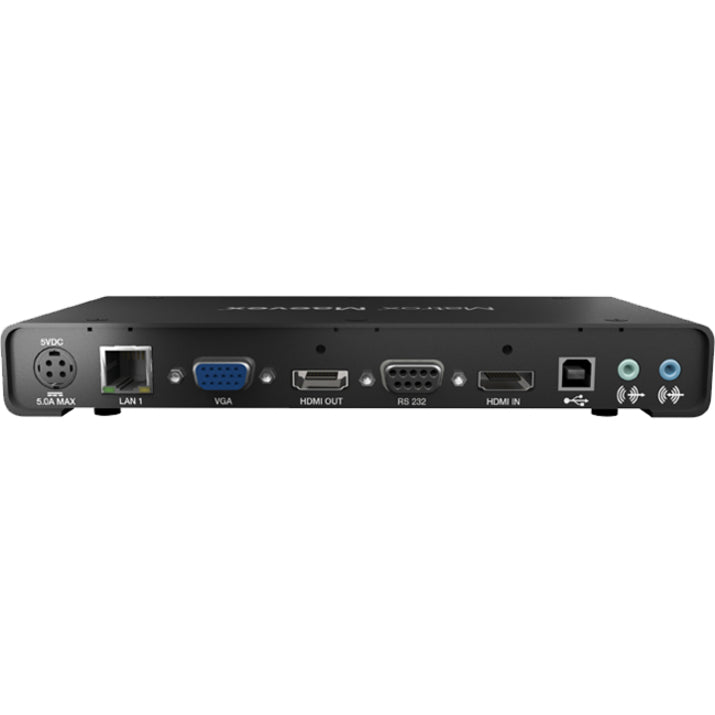

Matrox Maevex 5100 Series Encoder / Decoder Bundle

The Maevex 5100 Series encoders and decoders can stream or record up to 1080p60 video and audio over a standard IP network at user-defined low bitrates for excellent quality and minimal network bandwidth consumption. These cost-effective single-channel Full HD encoders and decoders use the RTSP streaming protocol and the H.264 video compression standard. The Maevex 5100 Series encoders can stream to Maevex decoders or any device or PC that supports H.264 and RTSP. It can also record to a shared network or NAS drive. Highly energy-efficient, fanless and backed with industry-leading reliability, the Maevex 5100 Series is sure to meet your encoding/decoding needs.

Coupled with Maevex PowerStream Plus Software, the Maevex 5100 Series delivers reliable, easy, and flexible discovery and management of all Maevex devices and features, including even the Maevex 6100 Series devices, ensuring complete reach and control over the entire Maevex network.

Encoding:

• Extend/record up to Full HD 1080p60 and 1920x1200 video and audio
• H.264 compression for high-quality, low-bandwidth AV-over-IP
• Support for wide-screen & standard aspect ratios and many resolutions
• Scale streams before distribution for lower bandwidth consumption
• HDMI or analog audio support
• Open encoding allows for third-party software decode (e.g. VLC)

Recording:

• Record up to 1080p60/1920x1200 to NAS or shared network drive
• Control frequency and duration of recording
• Schedule the start time and date of recording sessions
• Recorded user-defined file name includes timestamp for easy file management

Network Management:

• Operates on standard 100/1000Mb Ethernet networks
• Auto-detect and discover Maevex units on subnet (DHCP server required)
• Full/half-duplex mode and static IP address support
• CBR, VBR support
• Network bit-rate control (100 Kbps - 25 Mbps)

Failsafe:

• Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
• Programmable time delay before failsafe activates

Maevex SDK - PowerStream Plus SDK

• Based on easy-to-use .NET programming language for Windows and Mono for Linux
• Supports rapid customization and command-level access

REST API

• Lower-level API for even greater flexibility and direct access to Maevex 5100 units
• Flexible and portable software development

PowerStream Control Software:

• Remotely manage Maevex network from different locations
• Conveniently access IP address, bit rate, and other vitals
• Fine-tune encode/decode parameters and adjust bit rates
• Scale & crop content to fit different outputs

More from the Manufacturer

• Matrox PowerStream Plus software application allows for multiple instances and remote management of the Maevex network


• Scaling and cropping features enables flexible display of source content on the decoder output


• Scale streams locally before distributing them over the network to lower bandwidth consumption


• Extend Full HD, 1080p60 and 1920x1200 video and audio


• Excellent image quality with very low network bandwidth consumption
