ComNet Ethernet-Over-Copper Extender With Pass-Through PoE, 000 Feet Cable, The ComNet CopperLine® Ethernet Over Copper

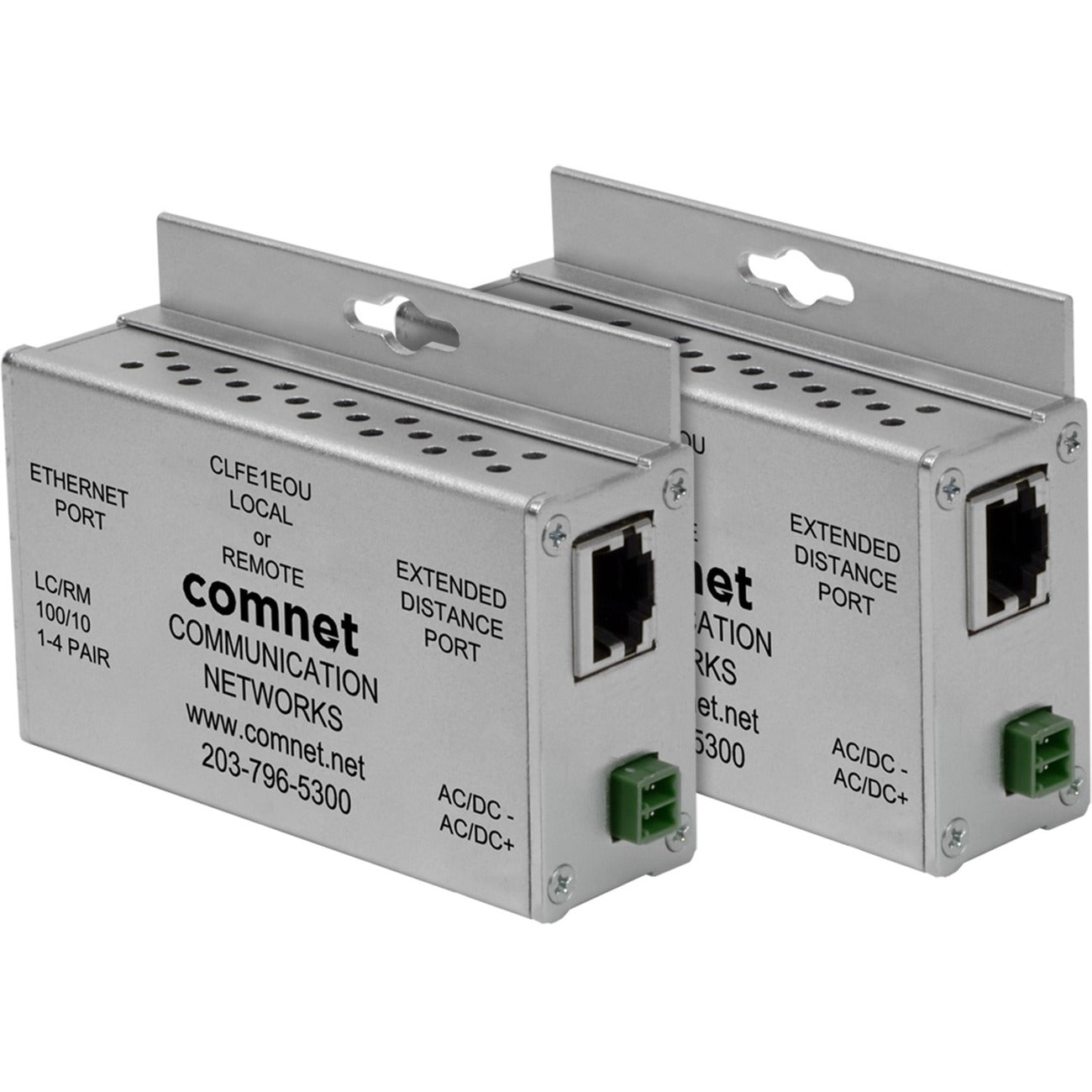

ComNet Ethernet-over-Copper Extender With Pass-Through PoE

The ComNet CopperLine® Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

• Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet


• Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable


• Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable


• Designed and manufactured in the USA


• Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable


• Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs


• User-selectable data rate for maximum bandwidth and transmission distance utilization.


• Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance


• Full 10/100 Mbps Bandwidth


• Supports Multicast, Unicast and Jumbo Frame
