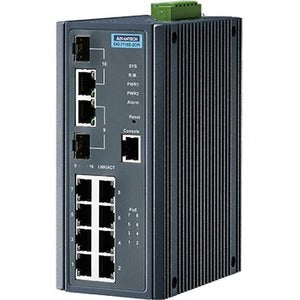

Advantech Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp

Advantech Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp
The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.

• Dual 24~48 V DC power input and 1 relay output


• -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)


• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB


• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS


• IXM function enables fast deployment


• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)


• SFP socket for Easy and Flexible Fiber Expansion


• 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
