Eaton Tripp Lite Series Medical-Grade Temperature Sensor for Healthcare Power Modules, 2 ft. (0.6 m)

Eaton Tripp Lite Series Medical-Grade Temperature Sensor for Healthcare Power Modules, 2 ft. (0.6 m)
Medical temperature sensor connects to Tripp Lite power module to prevent overcharging, detect shorted cells and prolong battery life.

Features

Medical-Grade Temperature Sensor Protects Connected Battery from Excessive HeatThis medical
temperature sensor provides extra fault protection for the sealed lead acid (SLA) batteries in your Tripp
Lite HC150SL or HCINT150SL power module for mobile medical carts. The HCTHERMISTOR lets the
power module shut down battery charger if the battery's temperature exceeds 50 degrees Celsius (122
degrees Fahrenheit). It helps prevent overcharging, which can protect the connected battery and prolong
its lifespan.

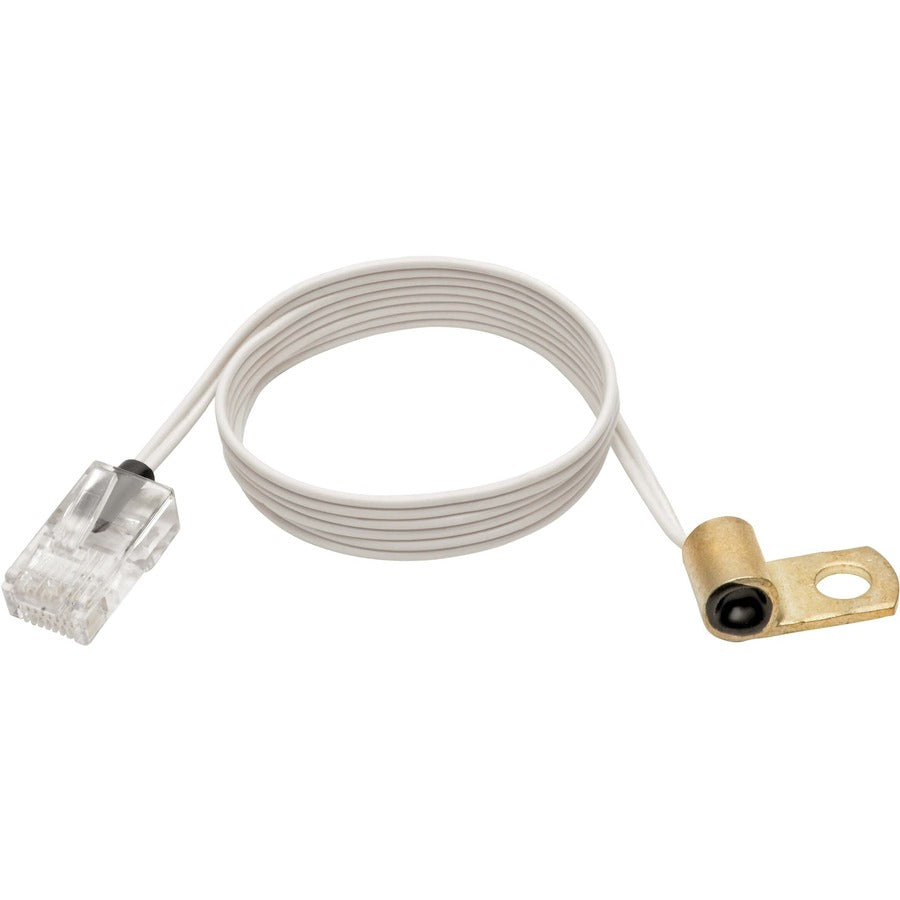

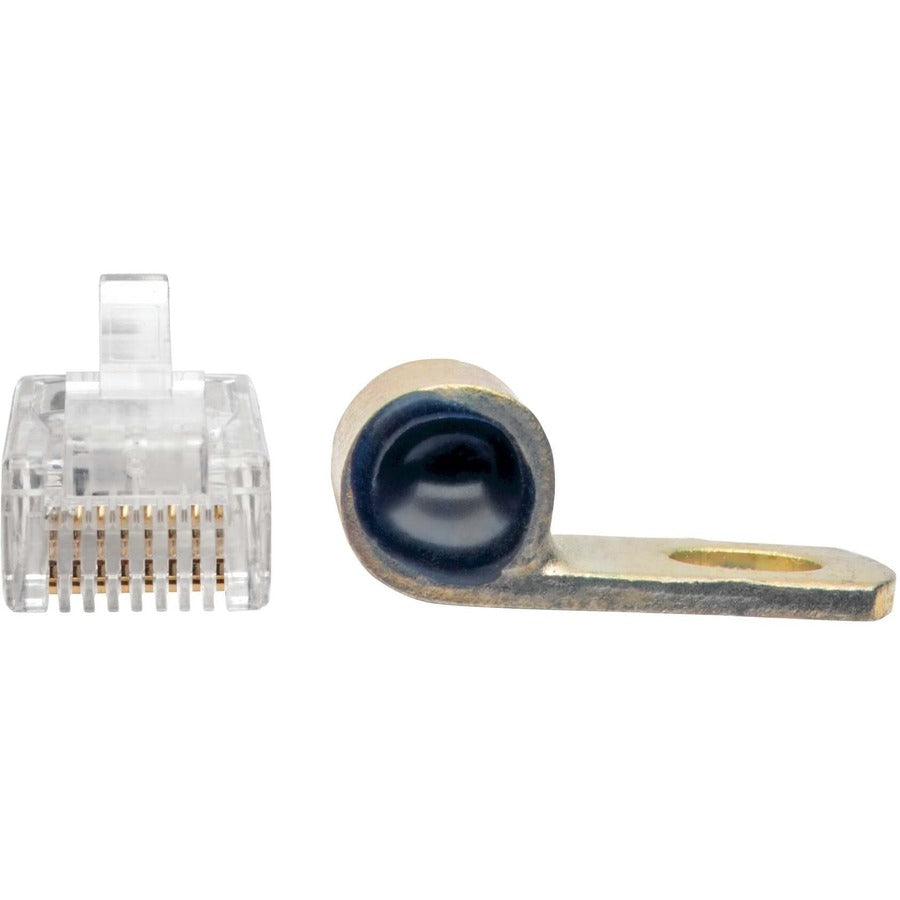

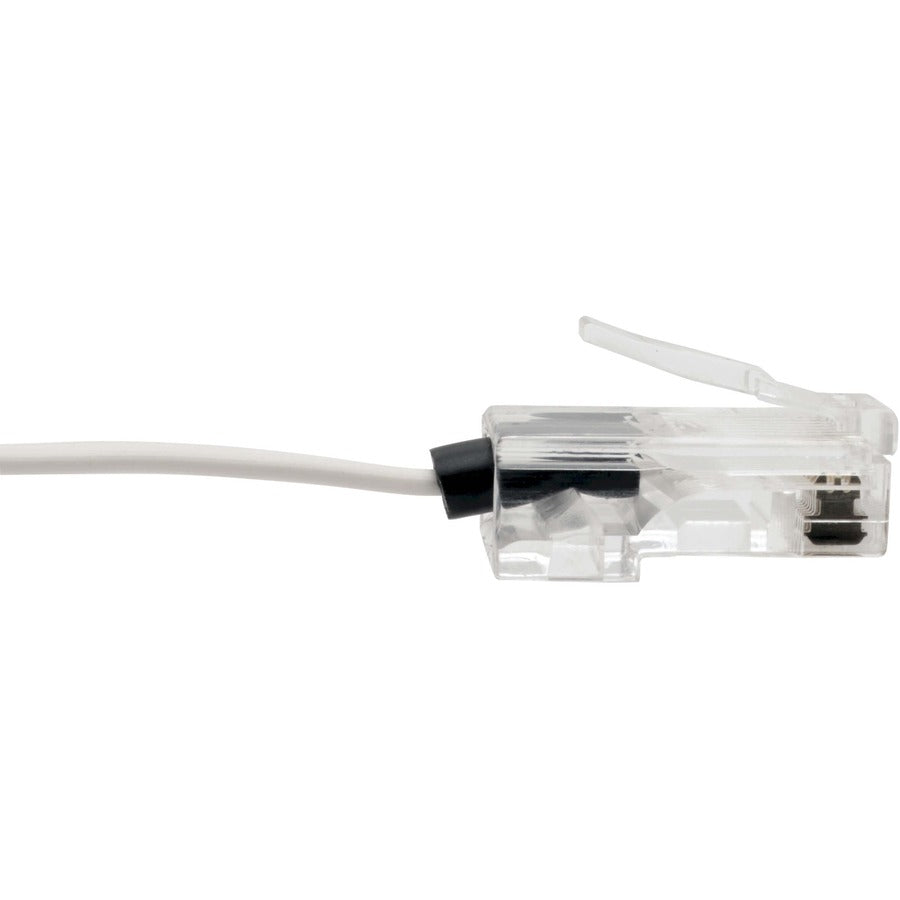

Compatible with Tripp Lite Medical Power ModulesConnect the RJ45 end of the two-foot medical-

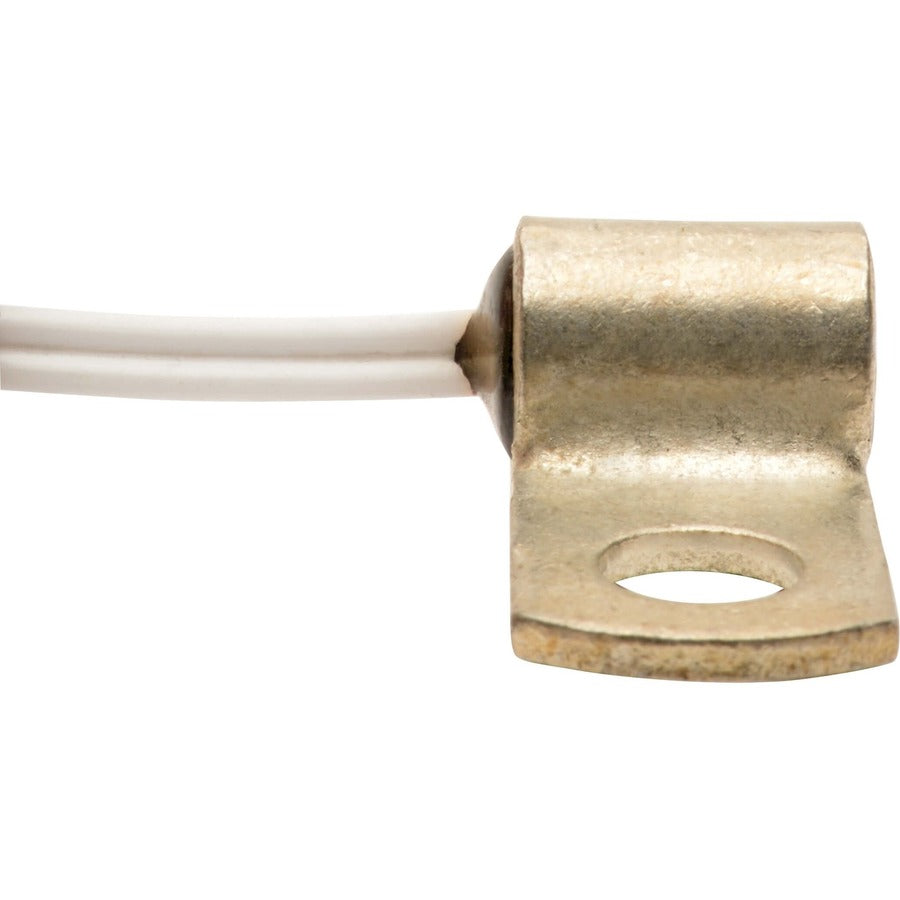

grade temperature sensor cable to the temperature sensor port on your power module. The other end is a
ring terminal that connects to the battery's negative post.

• Shuts down battery charger if battery temperature exceeds 50°C


• Monitors battery temperature to help prevent overcharging and protect battery lifeEnds connect to RJ45 battery temperature port and battery's negative terminal
