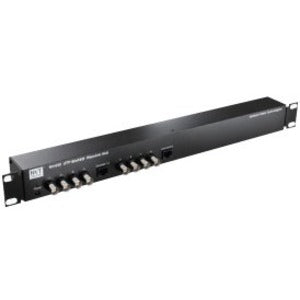

NVT Phybridge 8 Channel StubEQ Active Receiver Hub
"Employing NVT Phybridge's StubEQ™ technology, the NV-842 is an 8-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content.

The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated."

• Limited lifetime warranty


• Includes rack mount hardware and two NV-RJ45A adaptors


• Built-in transient protection and ground-lifting


• Compatible with qualified UTP cameras


• Exceptional interference rejection


• RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)


• Full motion CCTV video at distances up to 1,500ft (460m) when used with any passive NVT transceiver or hub; 2,000ft (600m) when used with the NV-653T active transmitter


• Compact rack-mountable 19" 1U high enclosure features 8 channels


• Adaptive StubEQ™ fully automatic 2-band equalization provides adjustment-free equalization every time
