VERTIV AFP0008 Remote KVM Switch

VERTIV AFP0008 Remote KVM Switch

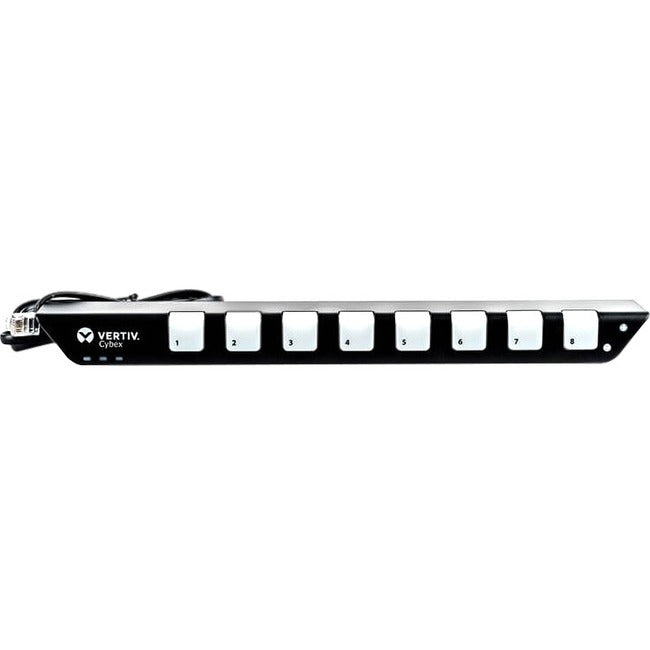

The Cybex™ Active Front Panel (AFP) is a simple, dedicated device designed for remote control and to enhance desktop situational awareness when using Vertiv™ KVM switches.

• Communicates via standard RS232 which can be integrated with video wall controllers such as Crestron.


• Disable Cybex™ SC switch's front panel buttons to prevent erroneous channel selection.


• No external power required.


• Cybex AFP may be placed up to 6 feet from Cybex SC switches.


• Adjustable button light intensity for changes in ambient light.


• Compatible with four and eight port Cybex SC switches and Avocent SV switches.


• Easy channel switching with clear indication of the channel selected.


• Eliminate desk clutter.


• imple to use and install.


• Ideal for ergonomic sit-stand desks: Using the Cybex AFP means the Cybex SC switch may remain under the desk and only the peripheral keyboard, mouse, card reader, monitor, and AFP cables must extend with the desks movement.


• Designed for both desk or display mounting: The AFP can be mounted on top of the display or on the desk.


• Improve situational awareness: By placing the AFP within the user's field of view, such as on top of the display, the user sees which channel is selected while they are working.


• Simple to use and install: The AFP is a dedicated device that only requires its built-in cable be connected to the Cybex SC Switch's RCU (Remote Control Unit) port.
