HID MaxiProx Reader Green Red

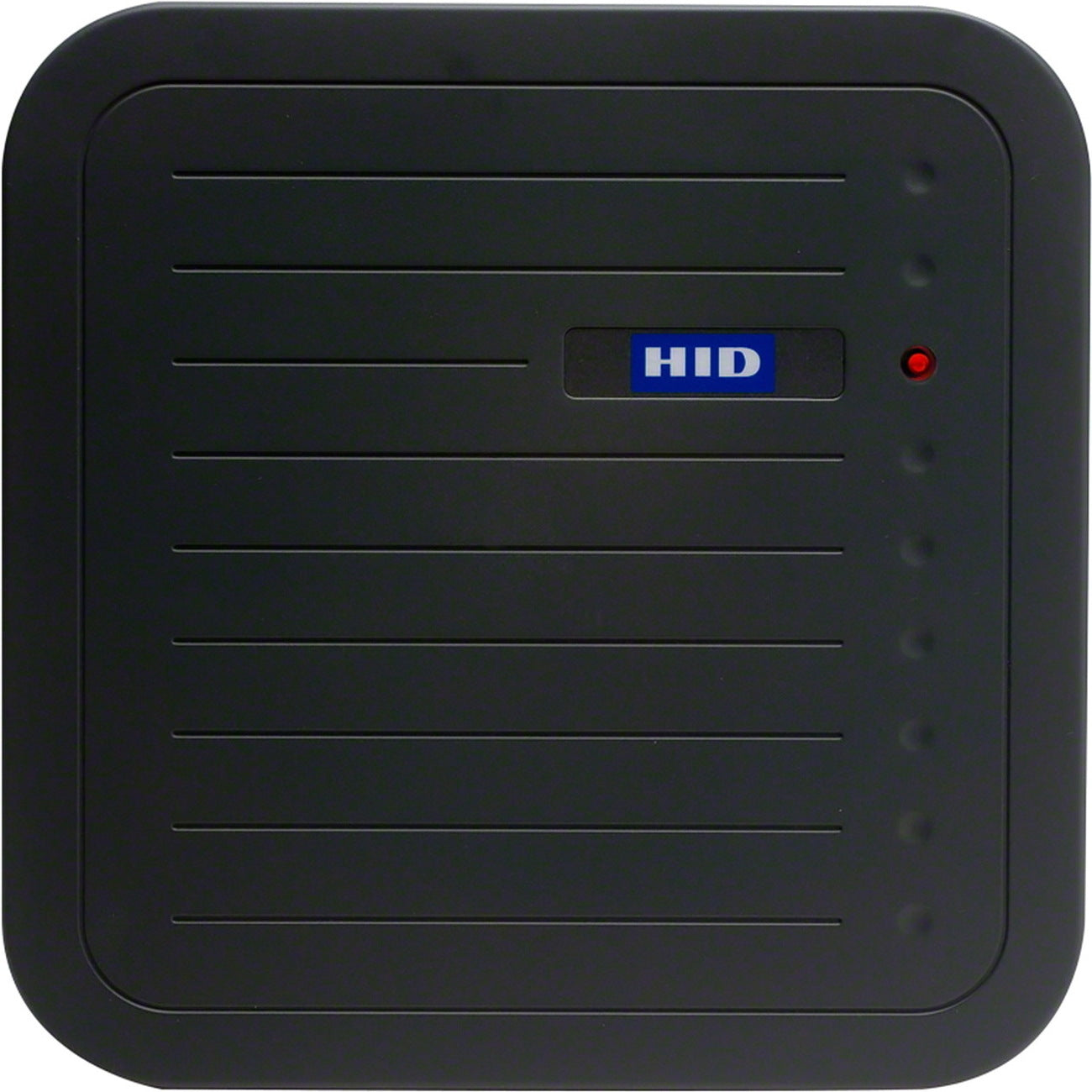

HID MaxiProx Reader
VALUE PRICED PROXIMITY CARD READER

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

• Features a beeper and multicolor LED which can be host-and/or locally controlled.
• Long read range distance (up to 6' with ProxPass®).
• Autotune allows read range to be maintained within four inches of metal.
• Wiegand, Clock-and-Data and selectable serial outputs available.
• "Parking hold" feature allows connection to a loop detector to ensure accurate
• detection of vehicles in parking lanes.
• Compatible with all HID cards and tags with formats up to 85 bits.
• Multicolor LED with internal or host control of the LED and beeper
• Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
• Reader supervision signal for CASI-RUSCO® panels.

• Options - LED and beeper operation; custom label


• Easily Interfaced - Interfaces with all existing Wiegand, Clock-andData, RS-232 and RS-422 protocol access control systems. The serial interfaces support baud rates of 1200, 2400, 4800, and 9600 baud


• Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere.


• Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.


• Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.


• Security - Includes a tamper switch to provide electronic notification of reader tampering. Recognizes card formats up to 85 bits.
