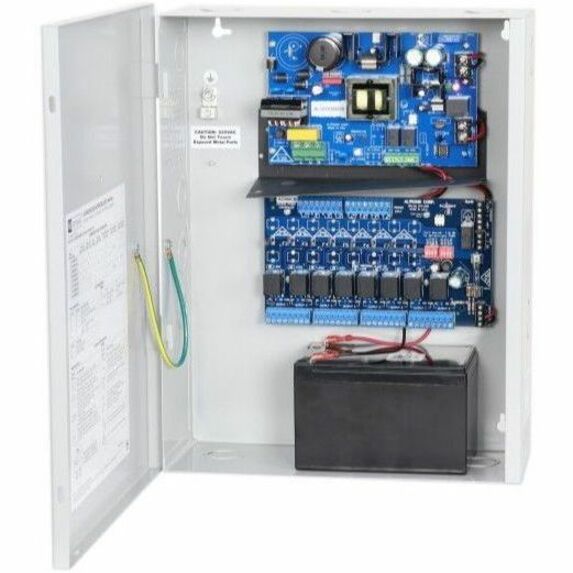

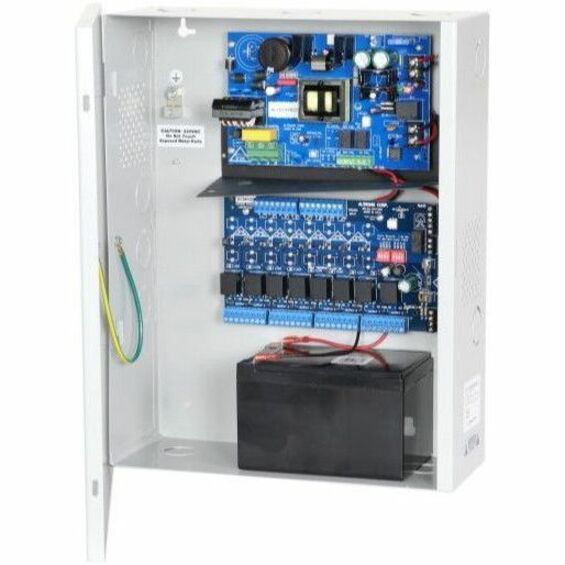

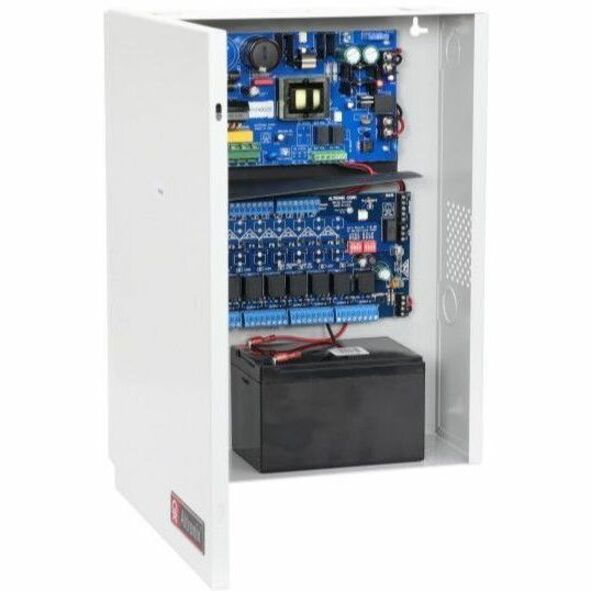

AL1012ACMCB220 converts a nominal 220VAC 50/60Hz input into eight (8) independently controlled 12VDC Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/ or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

• Battery Backup: Built-in charger for sealed lead acid or gel type batteries Maximum charge current 0.7 amp Automatic switch over to stand-by battery when AC fails Zero voltage drop when unit switches over to battery backup (AC failure condition) Battery fail and battery presence supervision (form "C" contact).


• Visual Indicators: Red LEDs indicate outputs are triggered (relays energized) Green LED indicates FACP disconnect is triggered AC input and DC output LED indicators.


• Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit.
