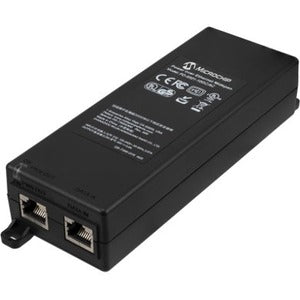

Microchip PD-9001-10GC PoE Injector

Microchip PD-9001-10GC PoE Injector

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points, pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.

Additional Features

• Number of ports: 1
• PoE output: 30W
• Data rates: 10/100/1000 Mbps & 10G
• Power input: AC
• Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
• Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
• EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
• Safety: UL/EN/IEC 60950-1 (Ed.2)
• Compact design

• IEEE 802.3at compliant


• IEEE 802.3af backward compatible


• Guaranteed output power - 30W


• Supports 10/100/1000Base-T & 10 Gbps


• Safe: low power devices receive only the power they need


• Automatic detection and protection of non-standard Ethernet terminals


• Compact design fits easily in WLAN access point and IP cameras installation
