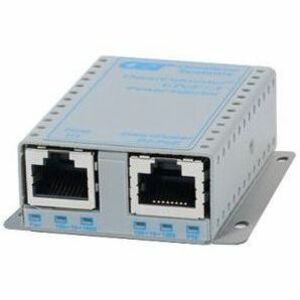

Omnitron Systems Unmanaged IEEE 802.3at 30W PoE+ Power Injector

Omnitron Systems Unmanaged IEEE 802.3at 30W PoE+ Power Injector

OmniConverter GPoE+/I is an unmanaged gigabit Ethernet power injector that will extend the Ethernet link distance and adds power over the data lines.

The OmniConverter GPoE+/I features one RJ-45 uplink port and one RJ-45 downlink IEEE 802.3af/at PoE+ port. The uplink and downlink ports support 10/100/1000Mbps data rates and are capable of operating with asymmetric rates.

OmniConverter GPoE+/I provides cost-effective distance extension and connectivity to remote PoE devices where external power is not available or hard to provision, or when replacing copper with fiber becomes cost prohibitive. The PoE Injectors automatically negotiate and deliver the power level required by a Powered Device (PD) partner. When a non-PoE device, such as a laptop, is connected to the PoE Injector for data only applications, no power is applied.

OmniConverter PoE Injectors are plug-and-play devices that support auto-negotiation of data rates and duplex modes for simple in-line installation to instantly extend network distances. This facilitates the installation and troubleshooting by ensuring each link is operational.

The OmniConverter PoE Injectors can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). They are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.

• Ultra compact unmanaged IEEE 802.3at 30W PoE+ Power Injector


• Supports 10/100/1000 RJ-45 uplink port and 10/100/1000 RJ-45 PoE+ downlink port


• Support IEEE 802.3af/at on downlink port


• Auto-negotiate PoE power level requested by the attached PD


• Plug-and-Play installation with auto-negotiation of data rates and duplex modes


• AC to DC Power Adapter or 2-Pin DC terminal


• Integrated Mounting Brackets


• Commercial (0 to +50C), wide (-40 to +60C) and extended (-40 to +75C) operating temperature ranges


• Free 24/7/365 Technical Support


• Lifetime warranty


• TAA, BAA and NDAA compliant, and Made in the USA
