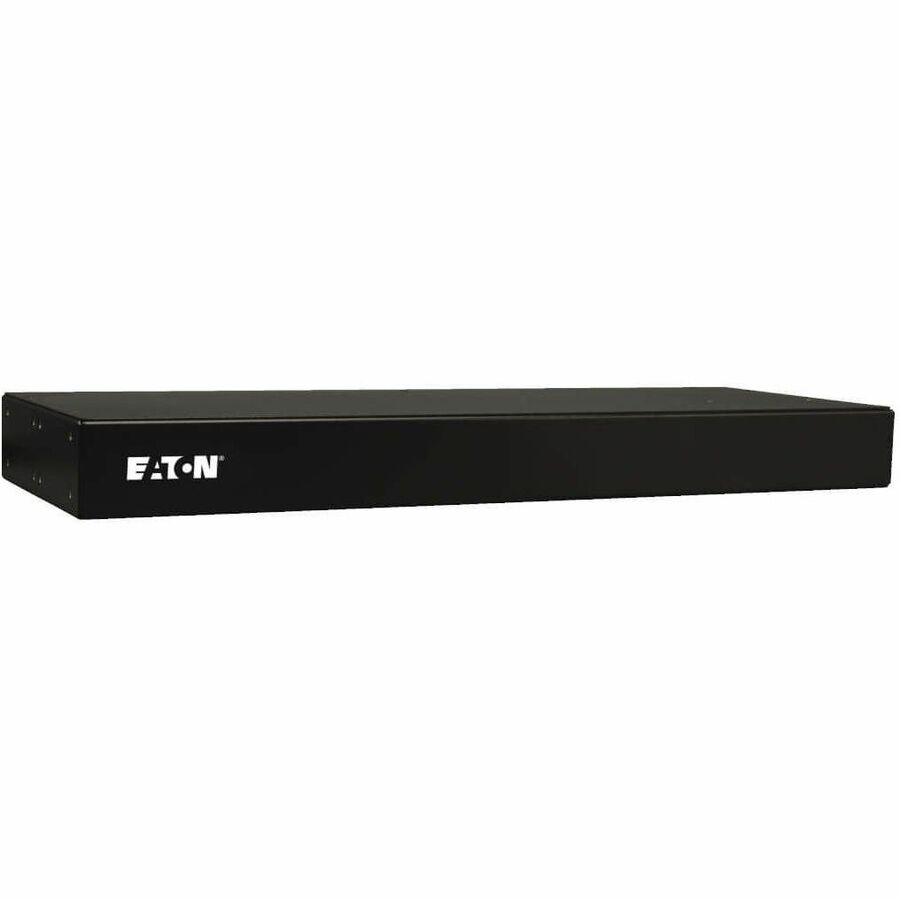

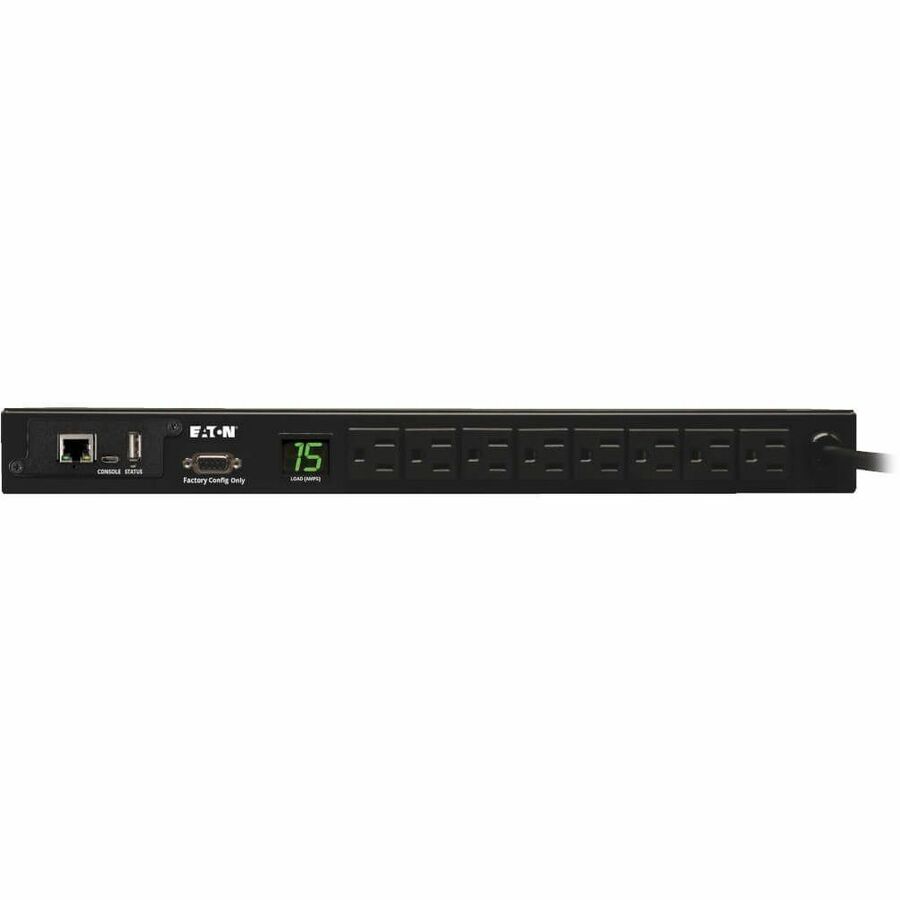

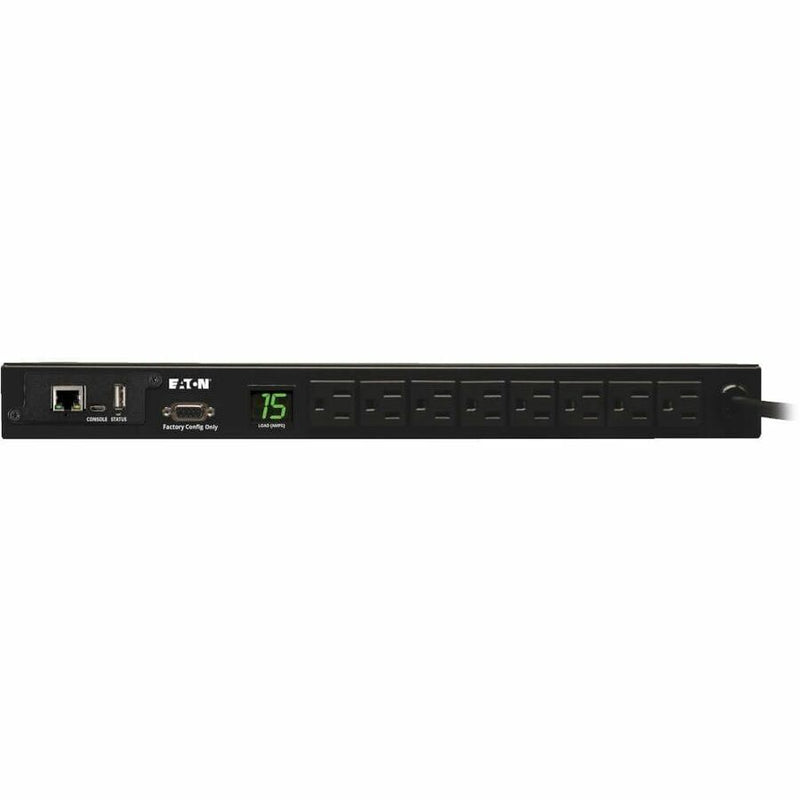

Eaton 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Eaton 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (8 5-15R), 5-15P, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

PDUMNH15 Monitored 1U Rackmount PDU supports 15A peak capacity at 120V (agency de-rated to 12 amps continuous). Includes attached 5-15P input cordset and 8 5-15R outlets. Visual and remote current monitoring tracks real time output current level. Supports 1U horizontal rackmount installation with included mounting brackets. Monitored PDU systems support real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps is displayed locally via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with optional ENVIROSENSE temperature / humidity probe and rack access notification for up to 4 SRSWITCH or user supplied contact-closure sensors.

More from the Manufacturer

• 8 NEMA 5-15R outlets with included cord retention brackets


• Temperature, humidity and contact closure monitoring options


• NEMA 5-15P input with attached 12ft / 3.6m line cord


• Visual current meter, Reversible housing


• Reports voltage, frequency & load level via ethernet interface


• Monitored 15A 120V PDU, 1U horizontal rackmount format
