PANDUIT 30A BASIC PDU 30 C13 6 C19 W/

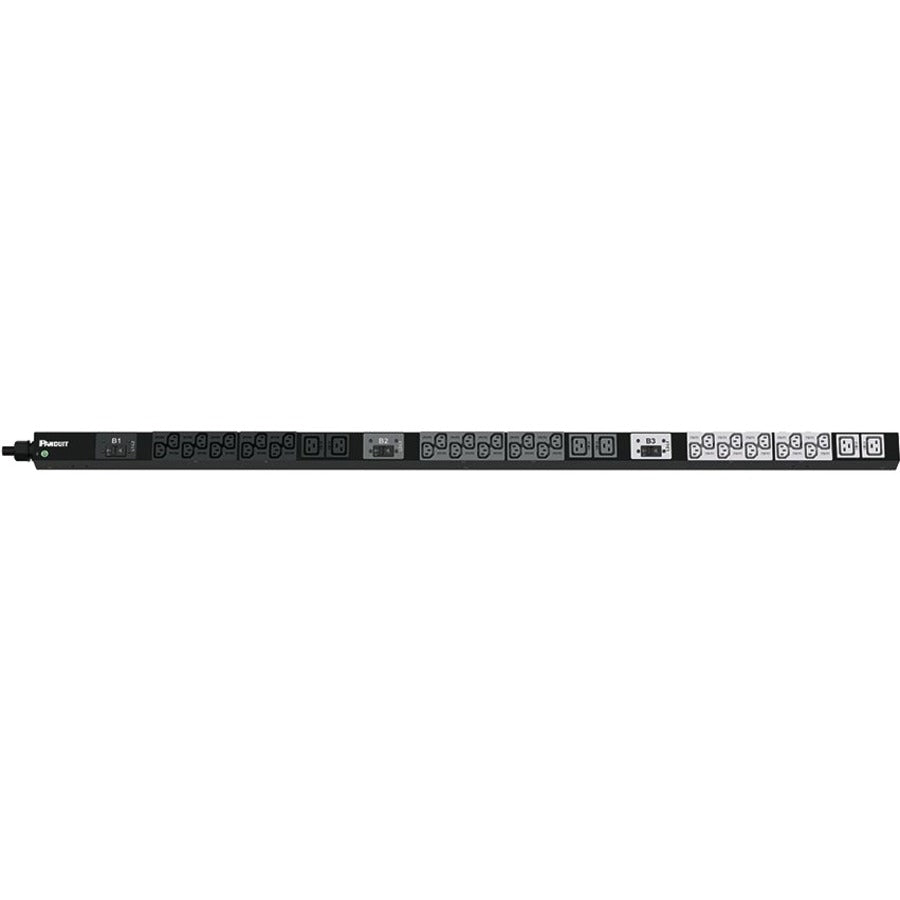

Panduit P36B26M Vertical Basic Power Distribution Unit
The 30A, 208V vertical 3 Phase WYE PDU has (30) C13 and (6) C19 receptacles, a 10' (3m) power cord with a NEMA L21-30P plug, and measures 58.7"L x 2.0"W x 2.1"D (1491mm x 50.8mm x 53.3mm). UL Listed. Color: Black

• Mounting buttons: Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units


• External Chassis Ground: Meets NEC requirements and installation guidelines for IT equipmen


• Multiple Mounting options: Enables simple out of the box commissioning and flexibility with Panduit cabinets and industry standard mounting features enabling installation into third party cabinets


• Multiple input plug options: A full breadth offering to seamlessly interoperate with existing building power wiring schemes


• Color Coded Circuits: Easily identify phase to outlet banks to aid in fault isolation or load balancing


• Circuit Breakers: Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions


• Cable Retention: Our innovative cable tie accepting outlets allow for secure cord retention (C13 & C19 only) using a cable tie for added safety and security. (Panduit part number: PLT2I-C0)


• Operating Temperature: 60 °C ambient at full load for operational reliability


• Form Factor: Optimal form factor takes up less space for efficient rack space utilization


• Outlet Density: Meets demands of densely packed IT equipment in rack or cabinet space
