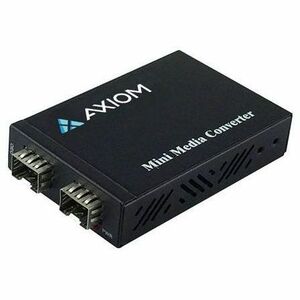

Axiom Transceiver/Media Converter

Axiom Transceiver/Media Converter

The Axiom 10G SFP+ to SFP+ Optical Mode Converter provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/ OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, OBSAI, CPRI, etc. Using SFP+ ports with dedicated CWDM or DWDM wavelengths, the 10G Fiber to Fiber Converter supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. With its functionality transponder is also suitable as a repeater for transmission over extended distances. In addition, the use of state of the art components greatly reduces the power requirements and heat dissipation factors over our previous transponders.

Features:

• Supports 10Gbase-SR/LR/ER/ZR/LRM to 10Gbase-SR/LR/ER/ZR/LRM


• Supports 10Gbase LAN (10.3125 Gbps) and WAN (9.95328 Gbps)


• 3R function, stable data transmission


• Short delay time when transparent transmission


• Jumbo Frame Support


• Supports DOM (Digital Optical Monitoring) function of optical transceivers


• Supports 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT


• Unit and Port LEDs allow for quick status information


• Support 1U Rack (12 channel) and Standalone use


• Compact package size, easy installation

• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices


• With 10GBase-SR technology get up to 10Gbps data transfer rate over optical fiber cable


• Compact Transceiver/Media Converter can be conveniently placed anywhere to ensure maximum space-efficiency
