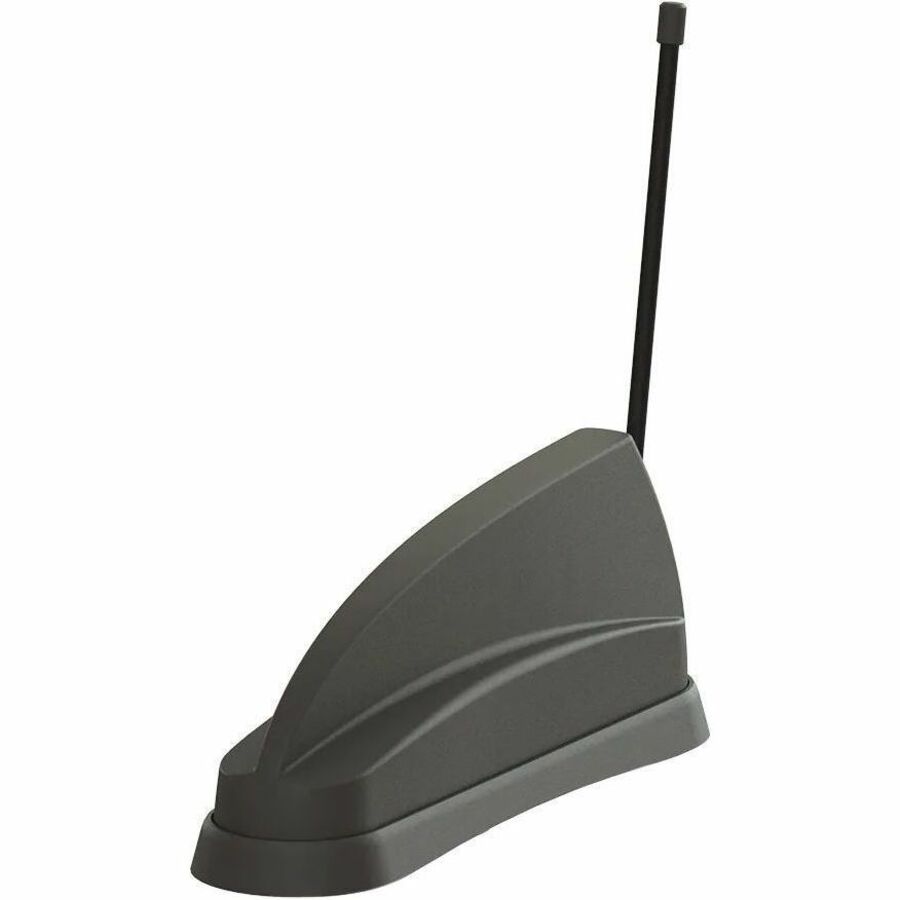

Panorama Antennas 4G/5G Sharkfin MiMo Antenna

Panorama Antennas 4G/5G Sharkfin MiMo Antenna

• OEM style sharkfin with 2x2 MiMo for 4G/5G


• GPS/GNSS and optional up to 4x MiMo WiFi


• Support for external whip

The GPSD 'Sharkee' range has become a byword for industry leading technology in a discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.

The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin housing contains a 2x2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and option of 2x2, 3x3 or 4x4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas. A blanking cap is supplied for when this is not required.

The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.

• Delivers?enhanced performance at 1562MHz to 1612MHz operating frequency range


• Get improved cellular network signal from further away with this antenna


• Provides gain of up to 26 dB


• Provides ease of management and installation thanks to its omni-direction feature


• Antenna can be mounted as panel mount
