NVT Phybridge NV-16PS13-PVD Power Supply Passive Video Receiver Hub

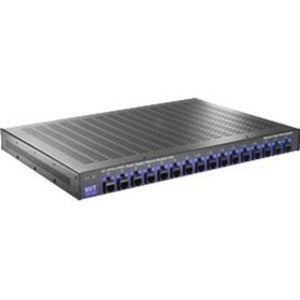

The 16-channel NV-16PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT Phybridge's PVD™ transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load/no-load, miswires, or fault conditions at a glance. Automatic-reset fault protection, transient protection, and ground loop free individually floating outputs.

• Limited lifetime warranty


• 1U high; 12" deep; wall, desk, or rack-mountable, 2ft (60cm) BNC Cables included


• Power cameras via UTP over significant distances (See Power Distance Chart)


• Use with the NV-216A-PV, NV-218A-PVD, or NV-226J-PV transceiver at the camera


• Diagnostic LEDs show load/no load, miswires, and overload conditions


• Individually floating outputs ensure total ground-loop immunity


• Automatic-reset fault protection; transient protection


• Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel


• Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B


• Provides Class 2 SELV camera power while receiving video transmissionand delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
