KanexPro Flexible One Input 4K HDBaseT card with Audio

KanexPro Flexible One Input 4K HDBaseT card with Audio

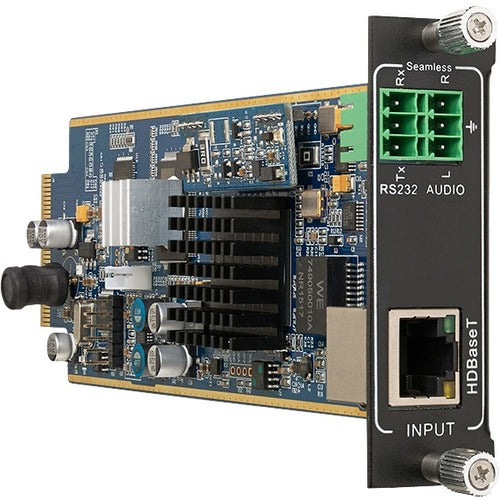

The KanexPro FLEX-IN-HDBT4K is a seamless one input HDBaseT card with embedded PCM analog audio designed for FLEX-MMX chassis supporting video resolutions up to 4K, 1080p/60 HD and PC resolutions up to 1920x1200@60Hz. The card is compliant to HDCP and supports EDID management from the switcher.

Powered over Cable (Ethernet)

This flexible card requires a Transmitter which can be remotely connected up to 230 feet to the HDMI source devices and supports PoC feature, which sends power over Ethernet (cable) to the Transmitter hence, no power supply needed.

Applications:

Ideally used in command and control centers, simulation centers, large AV conference rooms for up-to-second viewing of critical information and high -resolution imagery.

• Controllable via RS232


• Plug & play, easily fits in to the FLEX-MMX series


• Built-in EDID & DDC management


• Long CATx runs up to 230 feet (70 meters)


• Built-in HDCP internal management


• PoC - powered over cable (Ethernet) from the switcher


• Supported resolutions: 4K, 1920x1200, 1080p & 3D


• Requires an HDBASE70POET transmitter to be paired


• Stereo analog audio for audio embedding


• Single one input seamless 4K HDBaseT card
