ATEN Proxime CE770 KVM Console/Extender-TAA Compliant

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

More from the Manufacturer

• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button


• USB overcurrent detection and prevention


• Sun/Mac keyboard support and emulation


• Audio Enabled - supports stereo speakers and microphone


• Auto Signal Compensation (ASC)


• RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners


• Built-in ASIC for greater reliability and compatibility


• Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

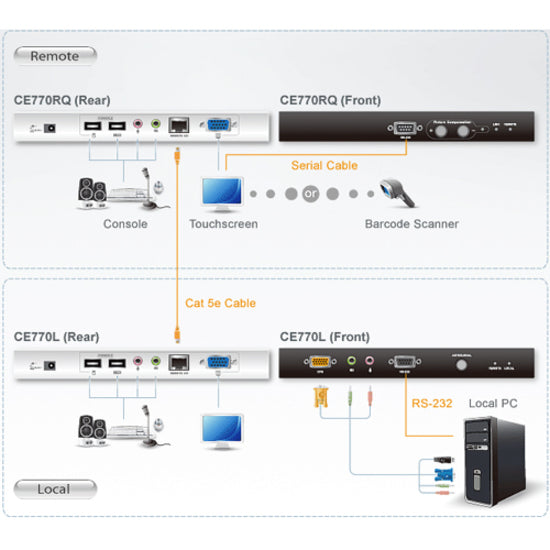

• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles


• Local and Remote Units connect at distances up to 300 m using Cat 5e cable
