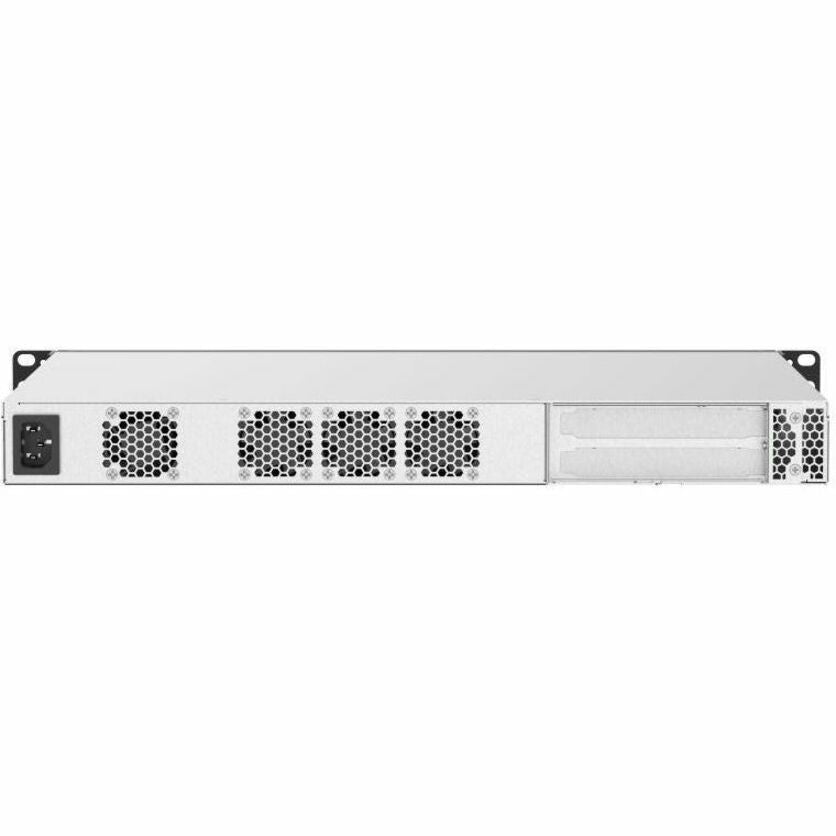

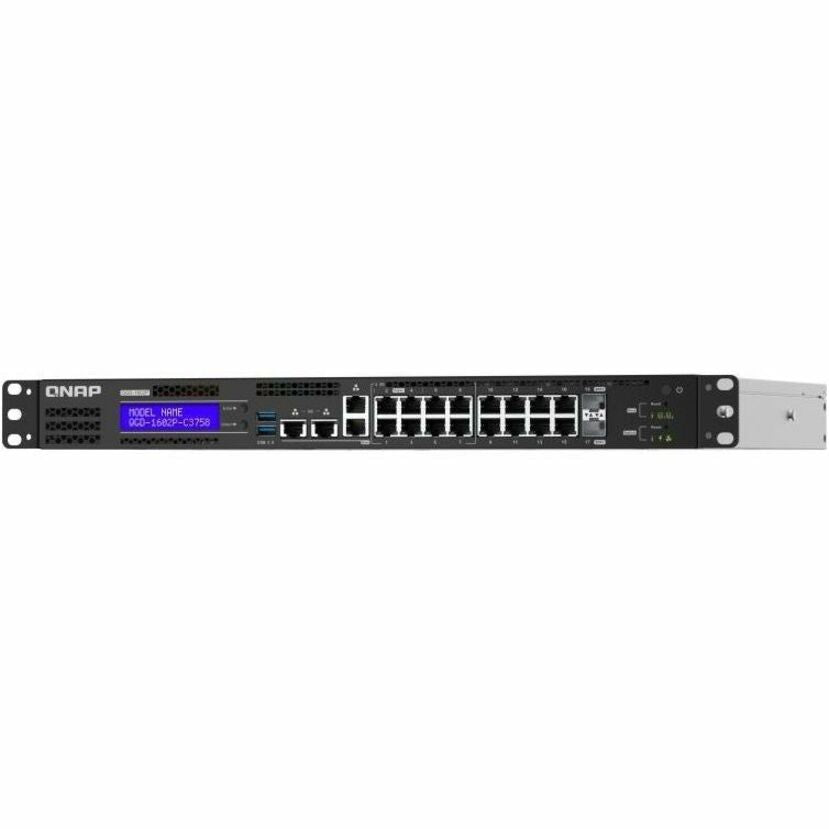

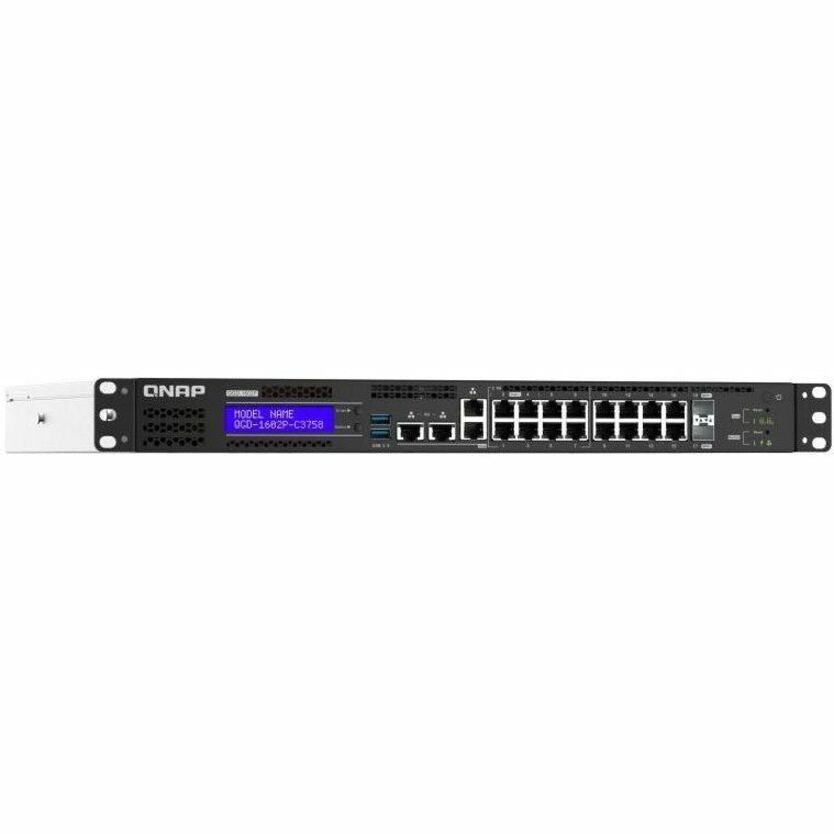

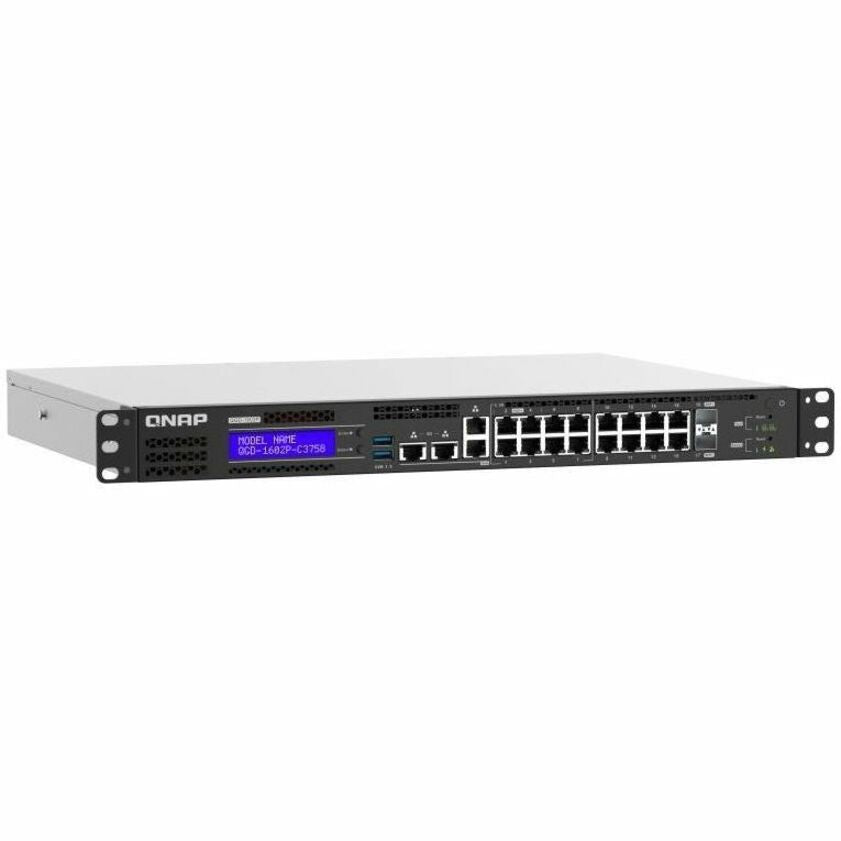

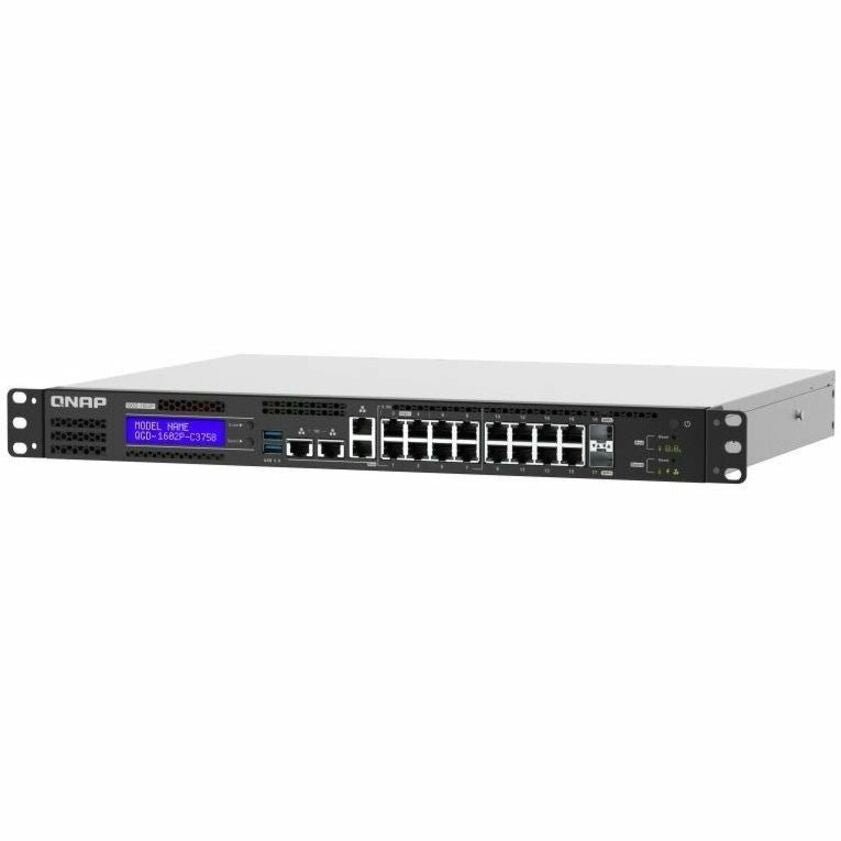

QNAP QGD-1602P-C3558-8G Ethernet Switch

QNAP QGD-1602P-C3558-8G Ethernet Switch

The QNAP QGD-1602P is the world's first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.

PoE++/PoE+

Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 4-port 90-watt and 12-port 30-watt Gigabit PoE capabilities. Can supply a total power budget of 380 watts to meet the demands of high-powered devices (PDs) and supports intelligent PoE management functions.

10GbE connectivity

Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

Layer 2 network

Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.

Dual M.2 PCIe slots

Set up an SSD cache or storage pools to increase file access efficiency.

Flexible PCIe expansion

Two PCIe Gen3 x4 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.

Mesh VPN

Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.

2.5GbE PoE Switch for Wi-Fi 6 APs & Routers

The QGD-1602P breaks through bandwidth limitations of connecting cabled and wireless networks to enhance your storage and access experience. With eight 2.5GbE ports, the QGD-1602P supplies up to 90 watts of PoE per port and a total power budget of 380 watts to meet the demands of high-power Wi-Fi 6 APs. The QGD-1602P can also be connected to a QHora Wi-Fi 6 Router via its 5GbE host ports to offer Wi-Fi 6 networking in home or office environments. Featuring diverse high-speed network interfaces, the QGD-1602P provides a comprehensive Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores. Coupled with QNAP's QuWAN SD-WAN solution, the QGD-1602P greatly enhances wireless LAN efficiency from optimized WAN bandwidth.

Upgraded performance for smoother virtualization

The QGD-1602P provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.

• 8-coreCPU (Max.)


• 10GbEnetwork


• 90WPoE


• 20GbpsInternal bandwidth capacity


• 64GBRAM (Max.)


• 6VMs


  • Effectively increases available bandwidth on your network


  • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency


  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports


  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


  • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency


  • Managed switch provides a reliable foundation for your network


  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks


  • Optical Fiber media support for a dependable and productive connectivity
