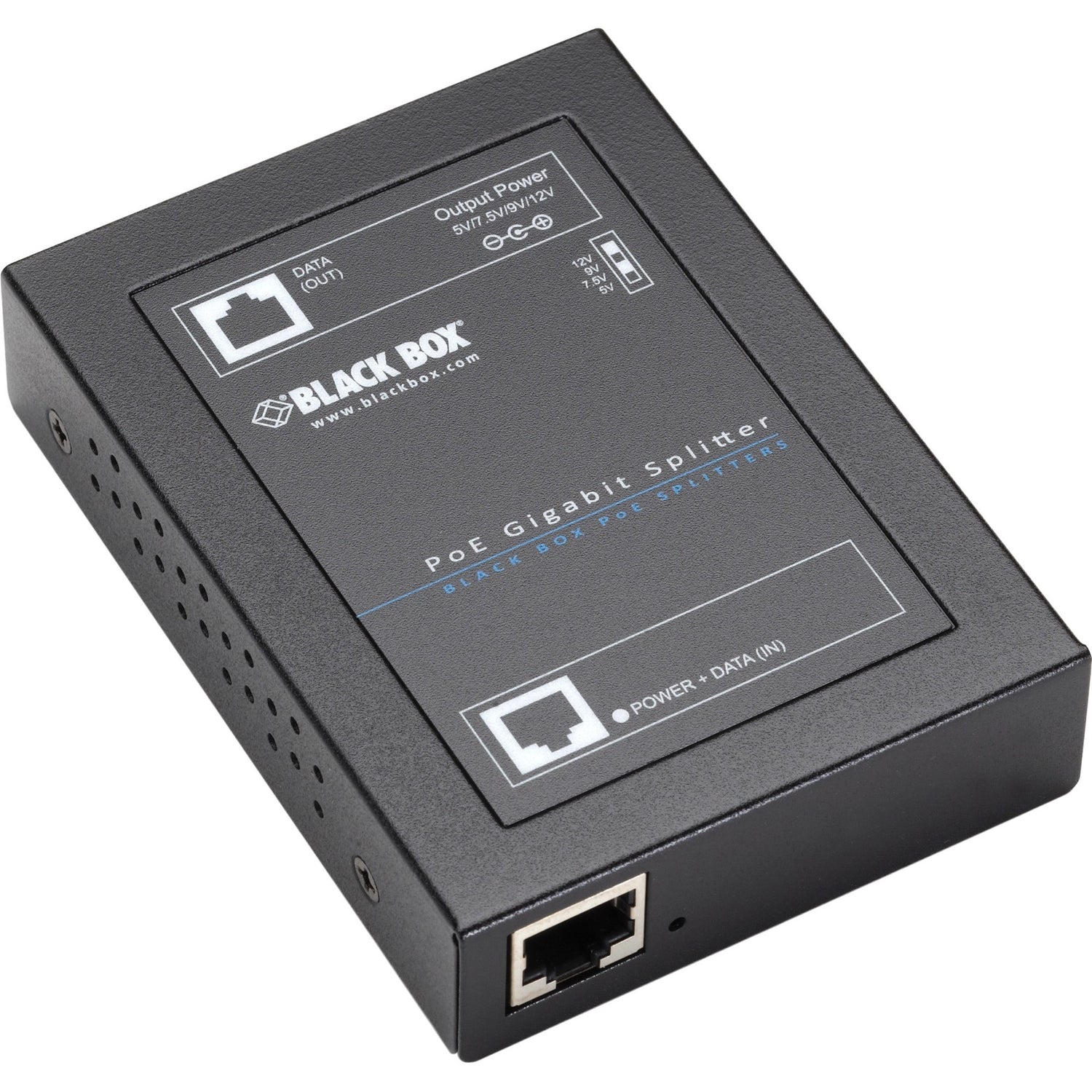

Black Box PoE+ Gigabit Splitter - 5-12-VDC, 6-Amp

Black Box PoE+ Gigabit Splitter - 5-12-VDC, 6-Amp

The Gigabit PoE+ Splitter enables you to send Gigabit Ethernet plus PoE+ power to a non-PoE device by splitting the PoE power out to an 18" DC power cord with with a right angle 5.5 x 2.5-mm power plug (included) to power the device.

The splitter saves on installation and equipment costs by enabling you to install non-PoE devices in areas without a nearby power outlet and to bring legacy devices into a PoE network.

PoE+ Splitter gigabit. One port 10/100/1000Mbps RJ45 PoE+ PD input plus one port 10/100/1000Mbps RJ45 output and DC output jack, 5-12VDC. Typical applications include powering remote IP security cameras or access points. Splits a PoE or PoE+ signal into separate power and data sources. DIP switch selects output voltage. Delivers up to 1.7A putput at 12VDC with PoE+ input.

• Auto-MDI/MDI-X on both Ethernet ports.


• Features auto sensing, auto negotiating 10-/100-/1000-Mbps ports.


• Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.


• Provides up to 12-VDC 1.7-amp power to a non-PoE device.


• Enables you to use PoE or PoE+ to power non-PoE devices.


• Splits a PoE or PoE+ signal into separate power and data sources.
