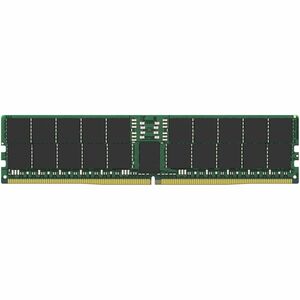

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM

Kingston 48GB DDR5 5600MT/s ECC Registered DIMM

Kingston's KSM56R46BD8PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical


• VDDQ = 1.1V Typical


• VPP = 1.8V Typical


• VDDSPD = 1.8V to 2.0V


• On-Die ECC


• x80 ECC (x40, 2 independent I/O sub channels)


• 32 internal banks


• Hard/Soft Post Package Repair


• Sideband access with I3C/I2C


• PCB: Height 1.23" (31.25mm)


• RoHS Compliant and Halogen-Free

• Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency


• Up to 5600 MHz speed for playing the latest games and using heavy software


• DIMM 48 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience


• DDR5 SDRAM memory technology effectively enables data to be moved at various points in a CPU clock cycle to allow maximum productivity


• 288-pin for faster, dependable performance and better access to data and information


• CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information


• Server device support for your RAM Module to allow enhanced system performance and reliable memory solution


• DIMM form factor with 288-pin and 48 GB memory size for enhanced performance and speed to allow maximum usability


• Registered signal processing allows high speed and accuracy to allow maximum reliability
