ACRE ComNet Video Transmitter/Data Transceiver (1310/1550 nm), 2.2 in, M1, Wired

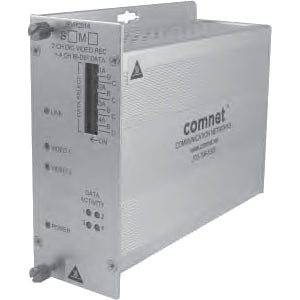

ComNet Video Transmitter/Data Transceiver (1310/1550 nm)
The ComNet™ FVT/FVR2014 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of two independent video channels and four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. Plugand- play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

• Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution


• NTSC video signal format effectively reduces visible flicker for comfortable, easy viewing without deterioration


• 1 input devices supported for maximum feasibility and usage convenience


• 9842.52 ft maximum operating distance for reliable coverage and maximum portability


• Rack-mountable video extender transmitter/receiver allows a clutter-free, convenient coding/decoding with increased efficiency
