ComNet FVR280S1 Video Extender Receiver, 177165.35 ft, Coaxial, FVT/FVR280S1, Wired

ComNet FVR280S1 Video Extender Receiver

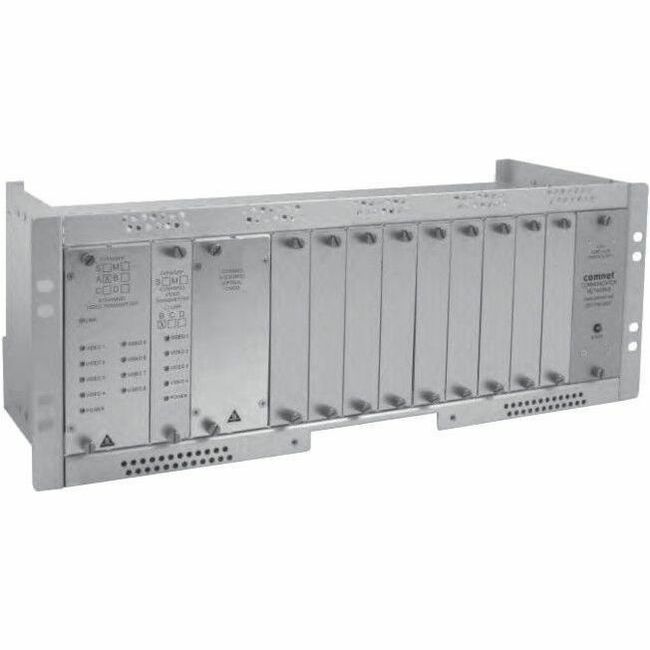

The ComNet™ FVT/FVR280S1 video transmitter and video receiver utilize 10-bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of 28 independent video channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.

• Lifetime Warranty


• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters


• Robust design ensures extremely high reliability in unconditioned out-of-plant environments


• Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.


• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.


• Compatible with all NTSC, PAL, or SECAM CCTV camera systems


• Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss


• Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance


• 10-Bit digitally encoded video transmission, transmits 28 realtime/full frame color video signals and 8 bi-directional data signals on one optical fiber
