ComNet FVR10C1S1 Video Extender Receiver, 177165.35 ft, Wired

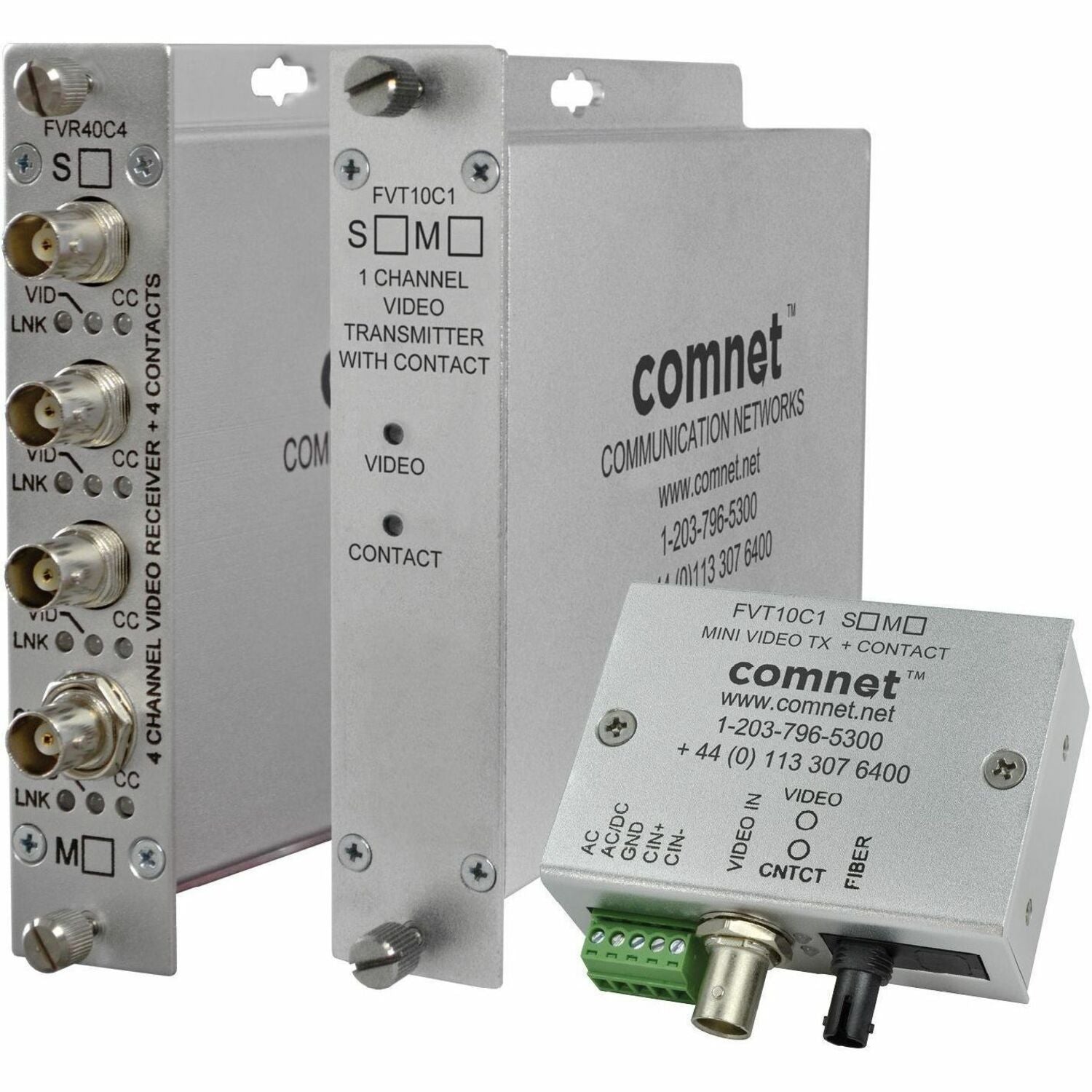

ComNet FVR10C1S1 Video Extender Receiver

The ComNet™ series video transmitters and receivers support the transmission of one, two, or four independent short-haul quality 10-bit digital video signals and one, two, or four contact closures in the direction of the video over multimode or single mode optical fibers. This module is universally compatible with major CCTV camera manufacturers. The receivers are compatible with the FVT10C1(M,S)1[/M] series or FVT1(M,S)1/M single channel transmitters. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

• Lifetime Warranty


• ComFit units are Interchangeable between stand-alone or rack mount use, or can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit.


• Hot-Swappable Modules


• 12 VDC or 24 VAC powered FVT10C1/M mini unit can be powered directly from camera


• LED status indicators confirm operating status


• Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.


• Automatic resettable fuses on all power lines


• Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.


• NTCIP compatible


• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low- line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.


• Compatible with NTSC, PAL, or SECAM Video Standards


• Exceeds All Requirements for EIA RS-250C Short-Haul Transmission Specifications


• Distances up to 54 km (33.6 mi) over Single Mode Fiber


• Distances up to 4 km (2.5 mi) over Multimode Fiber


• Exceptionally low video distortion with zero performance variation vs. optical path


• Supports one, two or four Contact Closures in the direction of video, ideal for tamper switch, etc.


• 10-bit Digital Video, Contact Closure Transmission: Receives one, two, or four real-time color video signals over one, two, or four optical fibers
