ATEN 4K HDMI Cat 6 Extender

ATEN 4K HDMI Cat 6 Extender

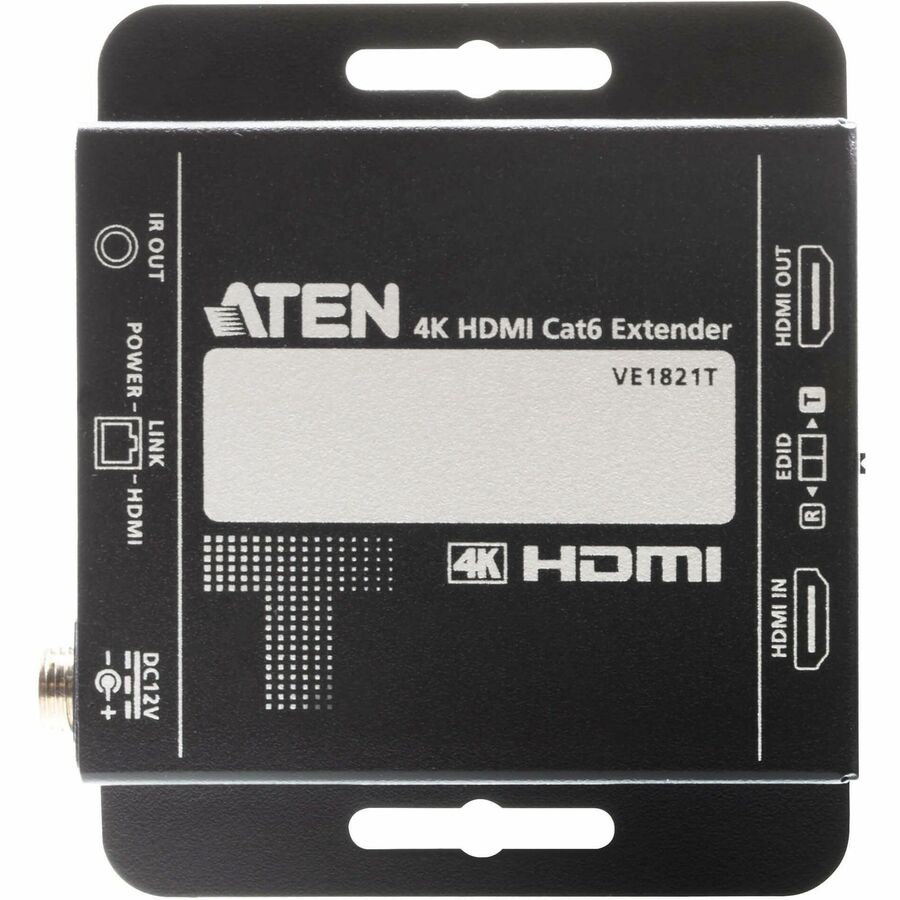

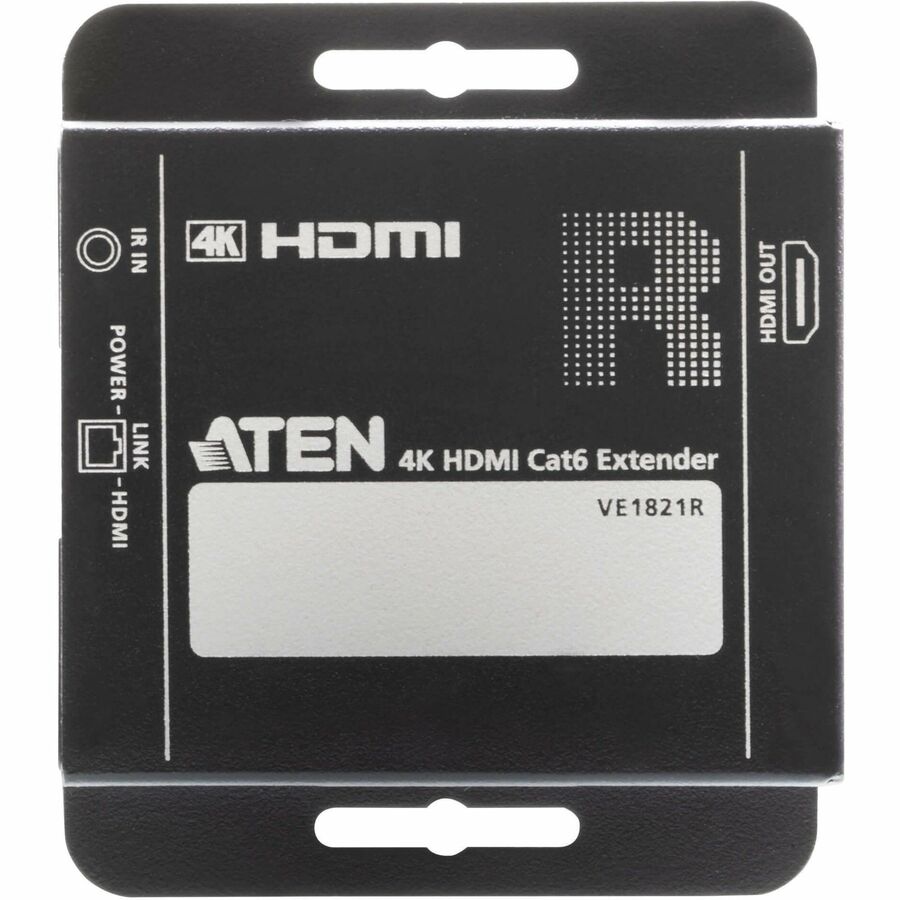

As a complete end-to-end solution, the VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096 x 2160 / 3840 x 2160 @ 30 Hz (4 : 4 : 4) up to 40 m via a Cat 6 cable (ATEN2L-2910recommended). Crystal-clear videopresentationis guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers.

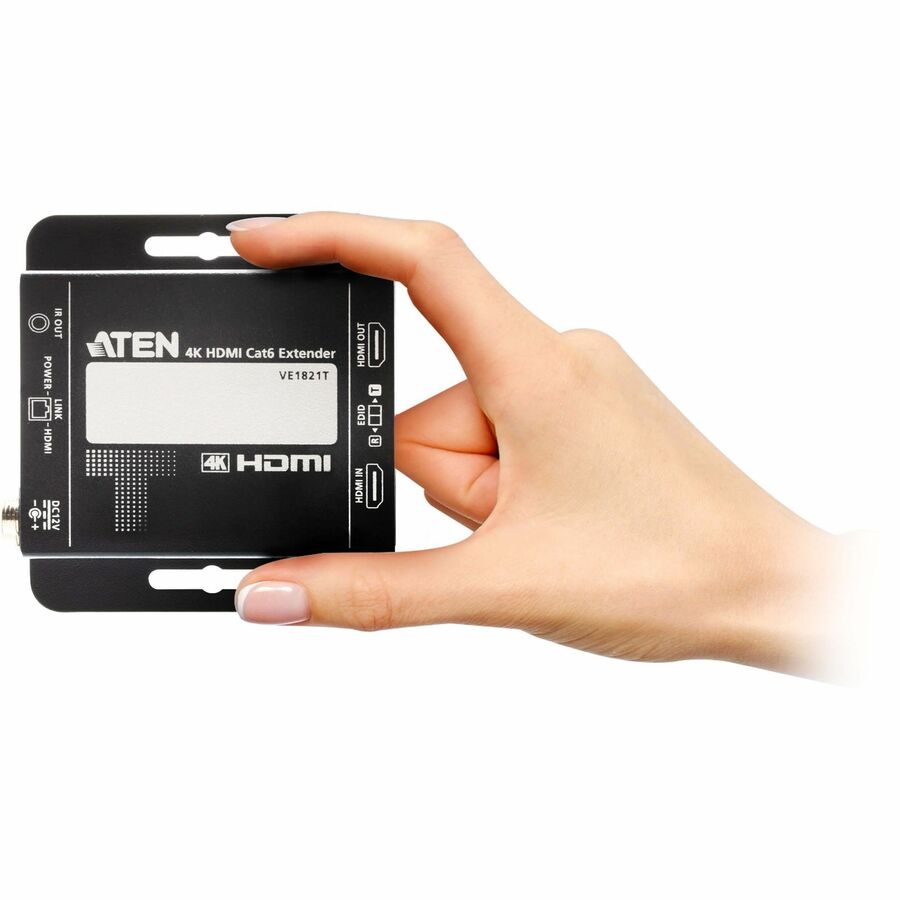

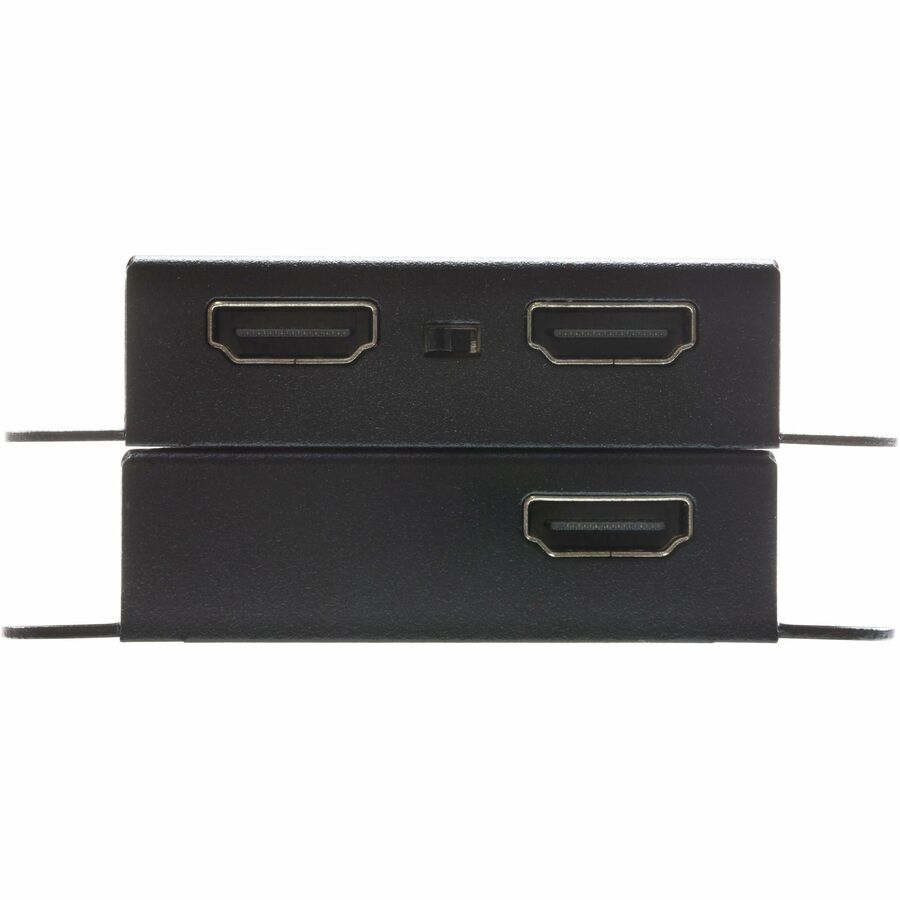

Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces. The transmitter includes a local HDMI output port, allowing for cascading purposes or for users to monitor the UHD signal being extended to the receiver. With the built-inEDIDswitch, users can control whichEDIDis taken from either display. Plus, the HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display through theEDIDCopying Mode. As a result of the IR transmission functionality, the source device connected to the transmitter can be seamlessly controlled from the receiver side, assuring easy and complete control for the user. The VE1821 adopts PoC (Power over Cable) technology, which enables the transmitter to provide power to the receiver via a Cat 6 cable, eliminating the need for a bulky external power supply.

With such a rich set of features, the VE1821 delivers excellent AV transmission quality and flexibility within different installation scenarios, such as meeting facilities, retail settings, entertainment systems, and more.

• Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending


• 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability


• HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency


• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference


• 1 input devices supported to better accommodate your specific requirements


• 1 output devices supported for maximum feasibility and usage convenience


• 118.11" maximum operating distance to allow efficient coverage and maximum usability


• 4K graphics mode for stunning, lively video quality
