C2G 4-Port USB 3.1 Over Cat6a Extender

C2G 4-Port USB 3.1 Over Cat6a Extender

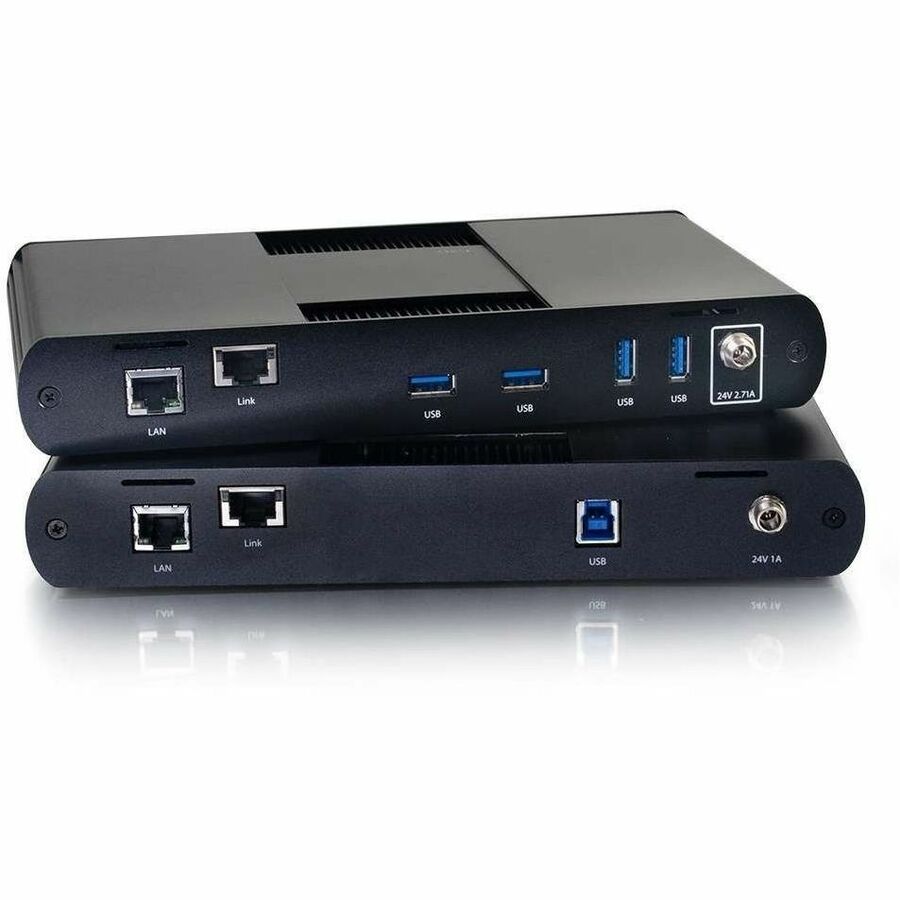

The 4-Port USB 3.1 Over Cat6a Extender was designed to extend USB 3.1, 2.0 and 1.1 devices simultaneously up to 328 feet over a single Cat6a cable, making it a perfect solution for USB 3.1 conferencing cameras, interactive white boards, security and monitoring, video matrix systems, remote storage, and/or any other USB 3, 2 and 1 device.

Convenience

No software drivers required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

Performance

The 4-Port USB 3.1 Over Cat6a Extender provides the ability to connect USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection. The extender also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity.

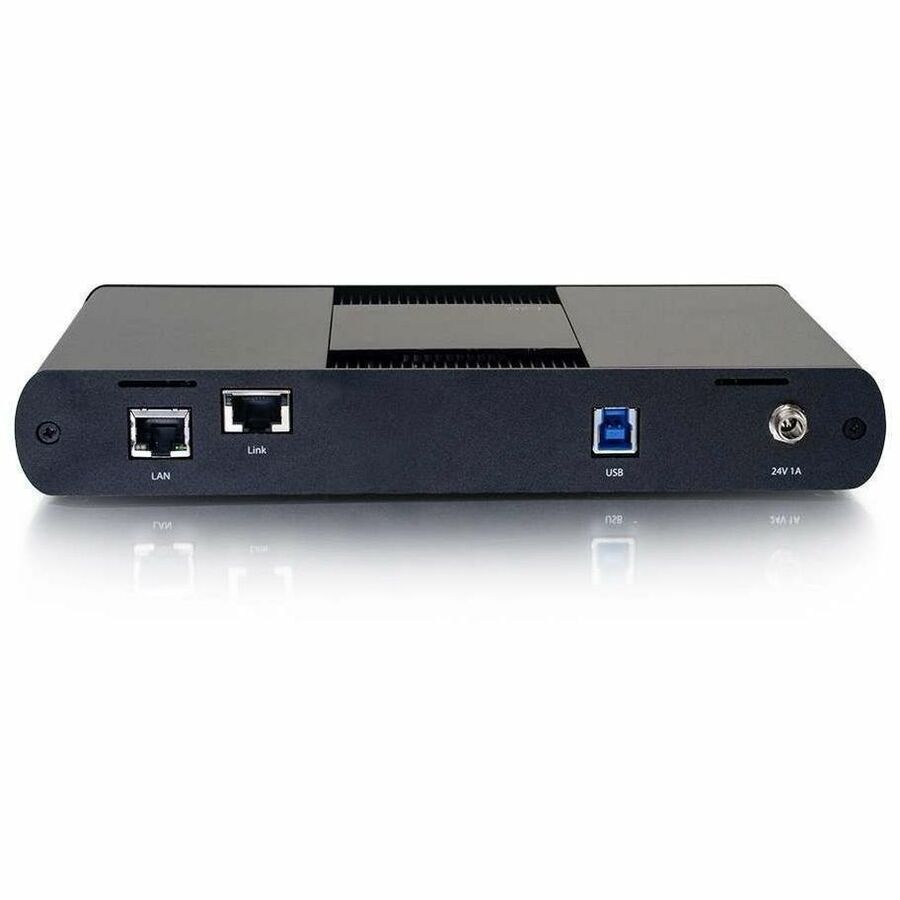

Connector 1:

(1) USB 3.0 B Female, (2) RJ-45 Female

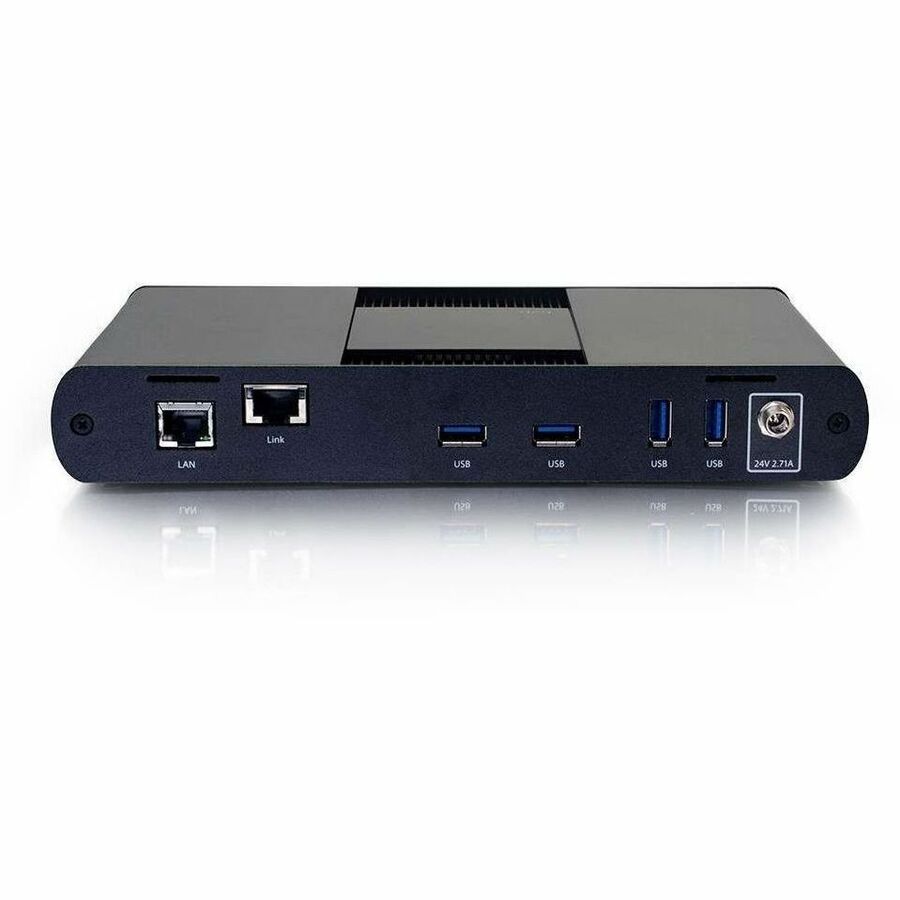

Connector 2:

(4) USB-A Female, (2) RJ-45 Female

• USB 3.1 Gen 1 data rate up to 5 Gbps


• Integrated four port USB 3.1 hub


• Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth


• Up to 1.2A (6W) per USB port


• 100/1000 Mbps Ethernet channel


• LAN pass-through


• Point-to-point connection


• Requires a single Cat6a cable


• Plug and Play-no driver required
