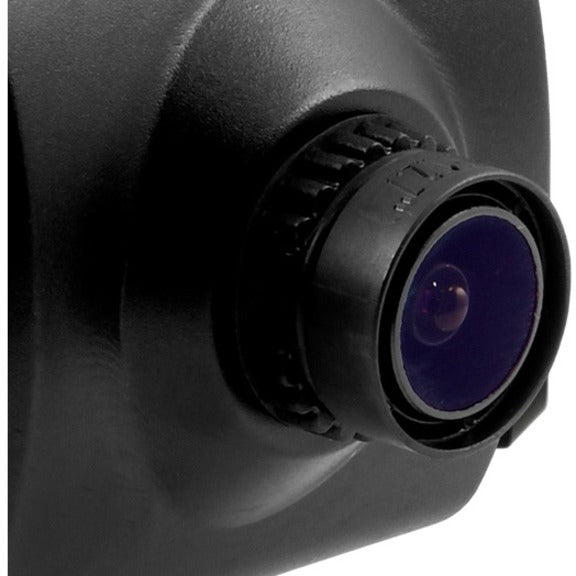

Marshall CV566 2.2 Megapixel Full HD Network Camera - Color

Marshall CV566 2.2 Megapixel Full HD Network Camera - Color

The Marshall Micro CV566 Genlock Camera is built around a next generation Sony 1/2.8" solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV566 delivers exceptional video performance from a micro-size body through 3GSDI & HDMI with true-color even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive), 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps serving a variety of applications.

New Sony 1/2.8" (6.46mm) CMOS Solid-Sate Image Sensors

The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.

Genlock Tri-Level Sync FeatureTri-level sync
runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.

Durable, Flexible, Powerful, Performance

The durable CV500-series cameras are chiseled from one block of aluminum alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.

• 2.2 Megapixel (1/2.8") Sony sensor


• Color Matrix control: Style, Master level/phase, Color level/phase


• Interchangeable M12 lens mount (includes stock 4.0mm lens 85°H. AOV)


• Durable aluminum alloy body with rear connection protection ears


• 3GSDI + HDMI outputs with Genlock 3G/HD-SDI Tri-Level Sync for quick switching


• HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i


• Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps


• Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources


• Micro-USB port for firmware upgrades in the field (downloadable from website)


• Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
