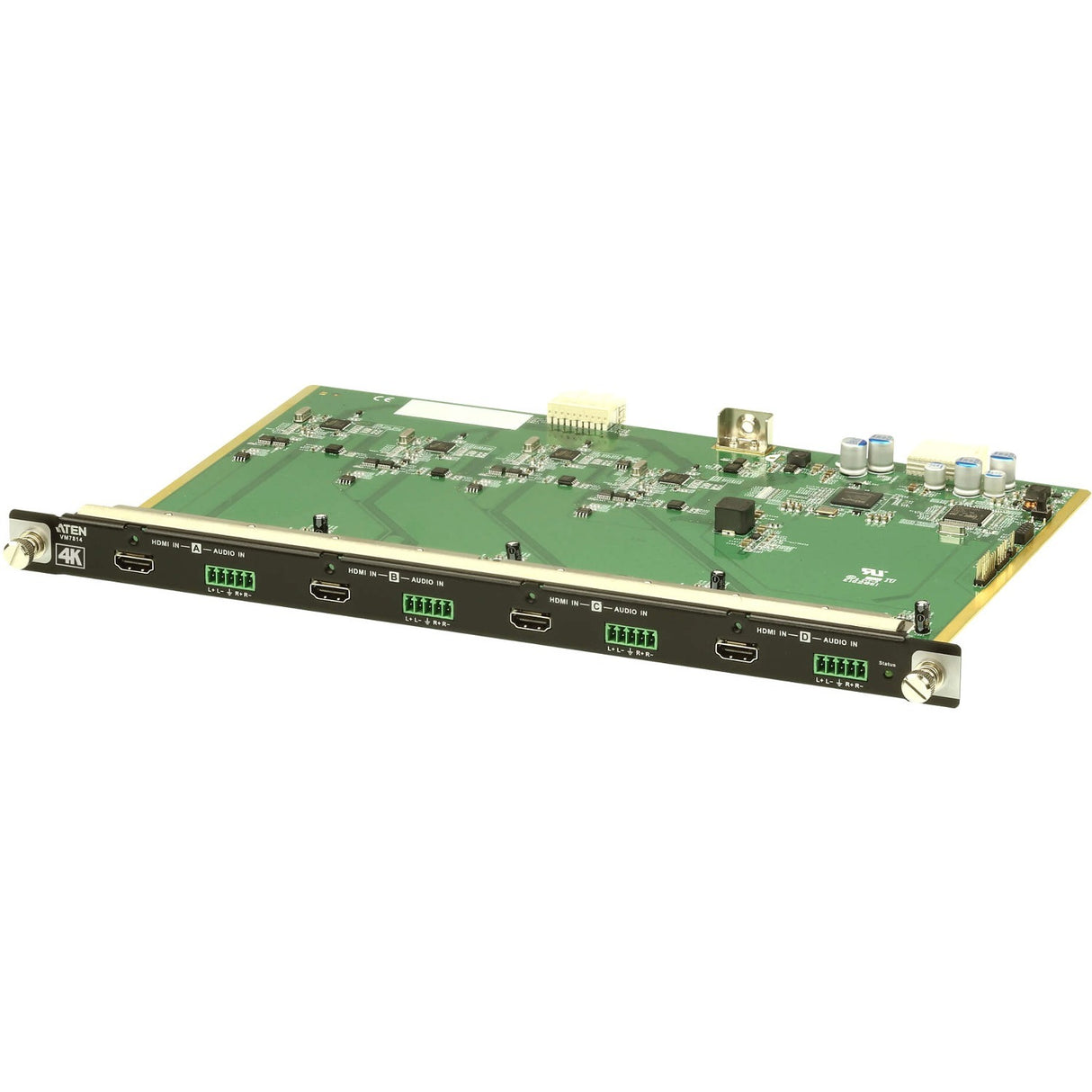

ATEN 4-Port 4K HDMI Input Board VM7814-TAA Compliant

ATEN 4-Port 4K HDMI Input Board VM7814-TAA Compliant

The VM7814 is a 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM7814 is equipped with 4 stereo audio input ports that allow stereo audio embedding.

The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.

• Consumer Electronics Control (CEC) support


• Cable Quality Tester - examines the HDMI cable quality


• HDMI (3D, Deep Color); HDCP 2.2 Compatible


• EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display


• Audio-enabled, stereo audio can be embedded


• Superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)


• 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
