ACRE ComNet CopperLine Value Kit: Point-to-Multipoint Ethernet-over-Coax Extender, 12.5 m, CLEK41EOC

ComNet CopperLine Value Kit: Point-to-Multipoint Ethernet-over-Coax Extender

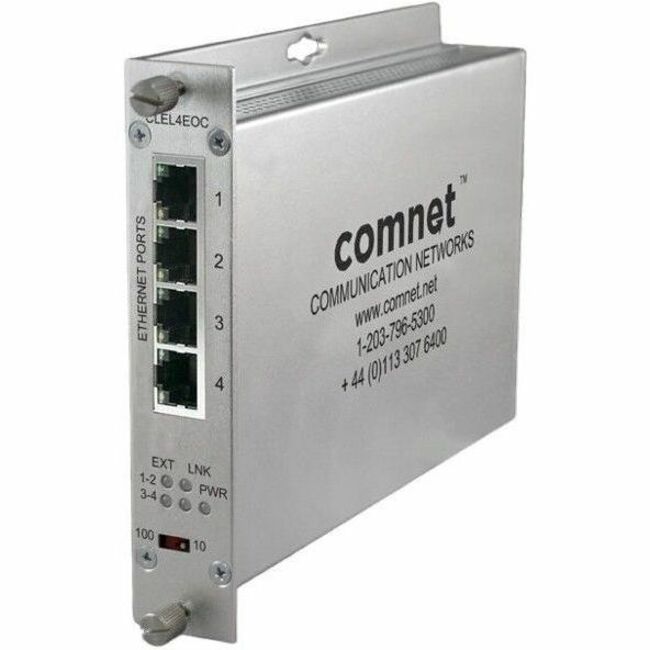

The ComNet™ Value CLEK41EOC features four remote 10/100 Mbps singlechannel units and a single four-channel local unit in a pre-packaged kit. Perfect for applications that face density challenges. The four-channel units will fit into any ComNet product rack. The four individual small-sized remote units can be placed up to 1,200 feet (400 meters) from the four channel local unit. Power supplies included. A DIP Switch allows configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install. This CopperLine® Value kit provides five units with power supplies.

• Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs


• Designed and manufactured in the USA


• User-selectable data rate for maximum bandwidth and transmission distance utilization


• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards


• Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance


• Supports Multicast, Unicast and Jumbo Frame


• Temperature operation from 0°C to +50°C


• Full 10/100 Mbps Bandwidth


• Extends Ethernet up to 1,200 feet (400 m) over Coaxial cable


• Transmits individual Ethernet data over Coaxial cable
