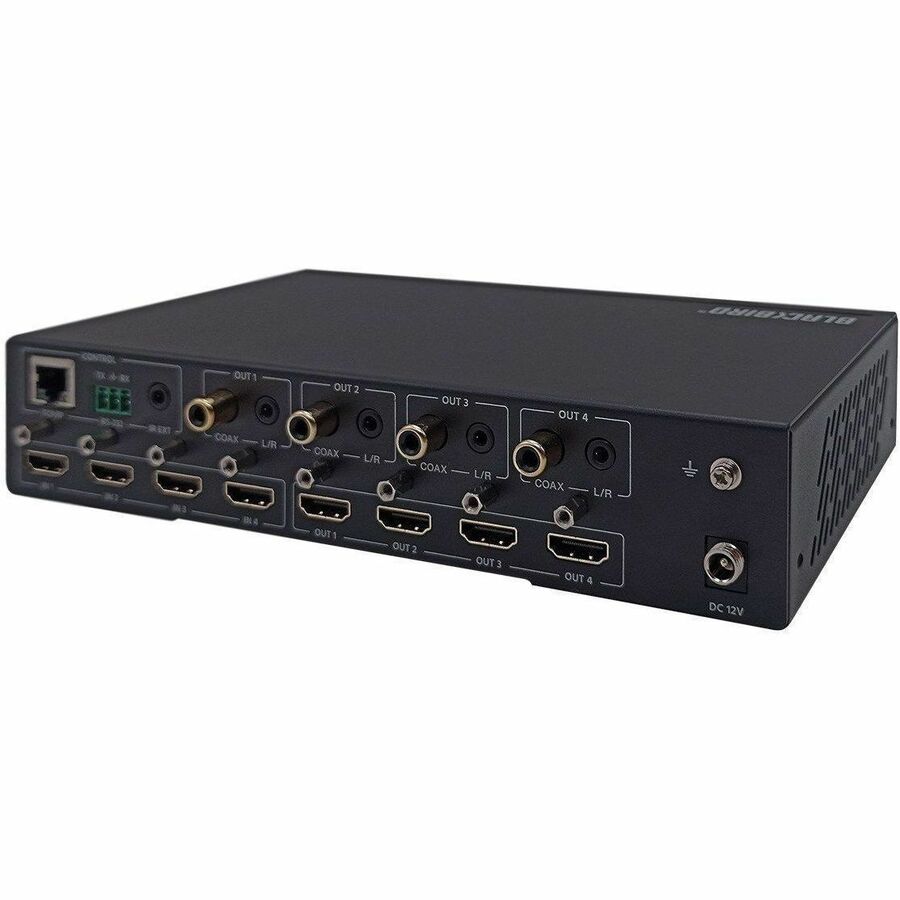

Monoprice Blackbird Video Switcher

Monoprice Blackbird Video Switcher

This 4K 4x4 HDMI® Matrix allows you to distribute any of up to four HDMI video sources to any or all of up to four displays. It complies with the HDMI 2.0 and HDCP™ 2.2 specifications, delivers up to 18Gbps video bandwidth, and supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space, including all HDMI 3D video modes. Each output can be individually downscaled to 1080p and each output has a digital coaxial and stereo analog audio output for connecting an external amplifier or powered speakers. It supports the Audio Return Channel (ARC) HDMI feature, which allows audio from the display to be redirected to the digital coaxial output. It includes advanced EDID® management and can be controlled using the front panel controls, the included IR remote control, or with a computer using RS-232 commands or the built-in Web GUI.

• Supports advanced EDID® management


• Can be controlled using the front panel controls, the included IR remote control, or with a computer using RS-232 commands or the built-in Web GUI


• Support the Audio Return Channel (ARC) feature, which directs audio from the connected display to the digital coaxial audio output


• Each output de-embeds the audio from the HDMI signal and directs it to an independent digital coaxial and stereo analog audio outputs


• Each output can be individually downscaled to 1080p


• Supports up to 18Gbps video bandwidth


• Supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space, including all 3D HDMI video modes


• Complies with the HDMI® 2.0, HDCP™ 2.2/1.4, and DVI™ 1.0 specifications
