Monoprice Blackbird Video Switcher, It has advanced EDID® management and advanced HDCP handling, Each HDMI input and output port provides 5 VDC

Monoprice Blackbird Video Switcher

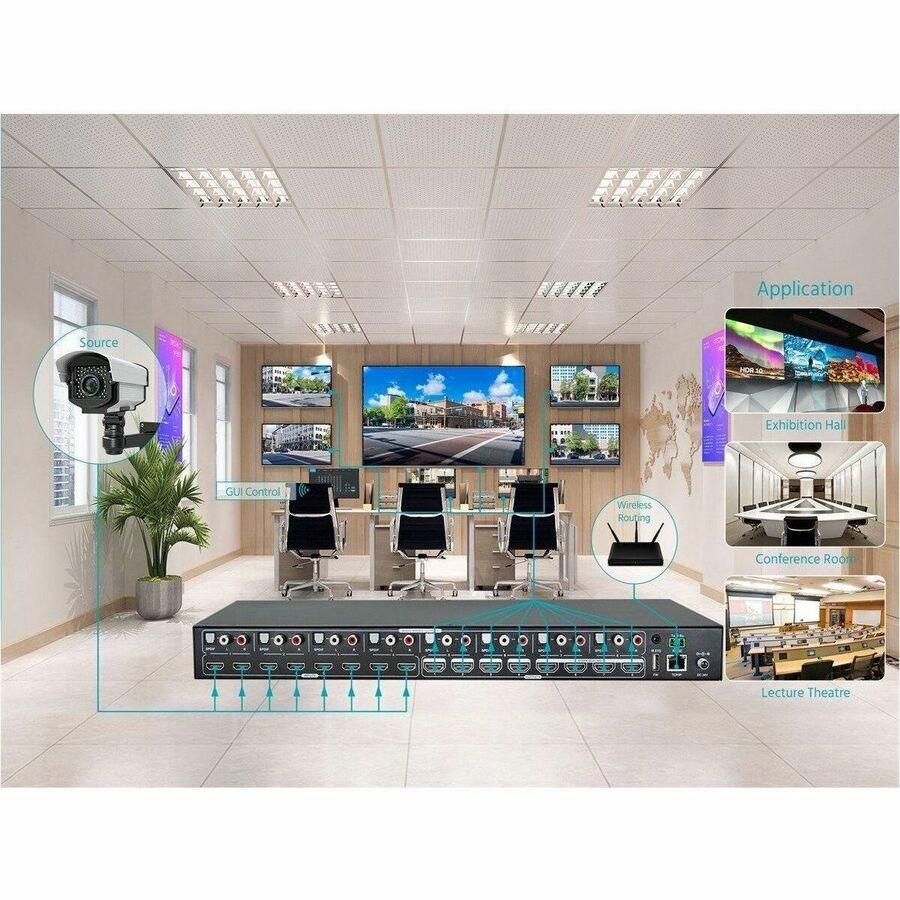

This Blackbird™ 4K 8×8 HDMI® Matrix allows you to independently distribute any of up to eight HDMI sources to any or all of eight HDMI displays. It is compliant with the HDMI 2.0 and HDCP™ 2.3 standards and supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space with support for HDR10 and Dolby Vision™. Four of the eight outputs support video downscaling to 1080p and all 16 HDMI ports can provide 5 VDC, 500mA of power for use with Active Optical Cables (AOC).

It features eight sets of audio outputs, each of which has a digital optical S/PDIF connector and a stereo pair of RCA jacks. Each audio output channel can be independently assigned to output audio de-embedded from any of the HDMI inputs or outputs. It has advanced EDID® management and advanced HDCP handling for broader compatibility with a wide range of video source devices and output displays. It can be controlled using the front panel buttons, the included IR remote control, or with a computer using the built-in web GUI or with RS-232 control commands.

• Each HDMI input and output port provides 5 VDC, 500mA of power for use with Active Optical Cables (AOC)
• It has advanced EDID® management and advanced HDCP handling
• Four of the eight outputs support video downscaling to 1080p@60Hz
• Each audio output channel can be independently assigned to output audio de-embedded from any of the HDMI inputs or outputs
• Includes eight audio output channels, each of which has a digital optical S/PDIF connector and a stereo pair of RCA jacks
• Supports HDR10 and Dolby Vision™
• Supports up to 18 Gbps video bandwidth
• Supports input and output video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space
• Compliant with the HDMI 2.0 and HDCP™ 2.3 standards
• Independently distributes any of eight HDMI® inputs to any of eight HDMI outputs
