Taoglas Synergy MA1508 Antenna

Taoglas Synergy MA1508 Antenna

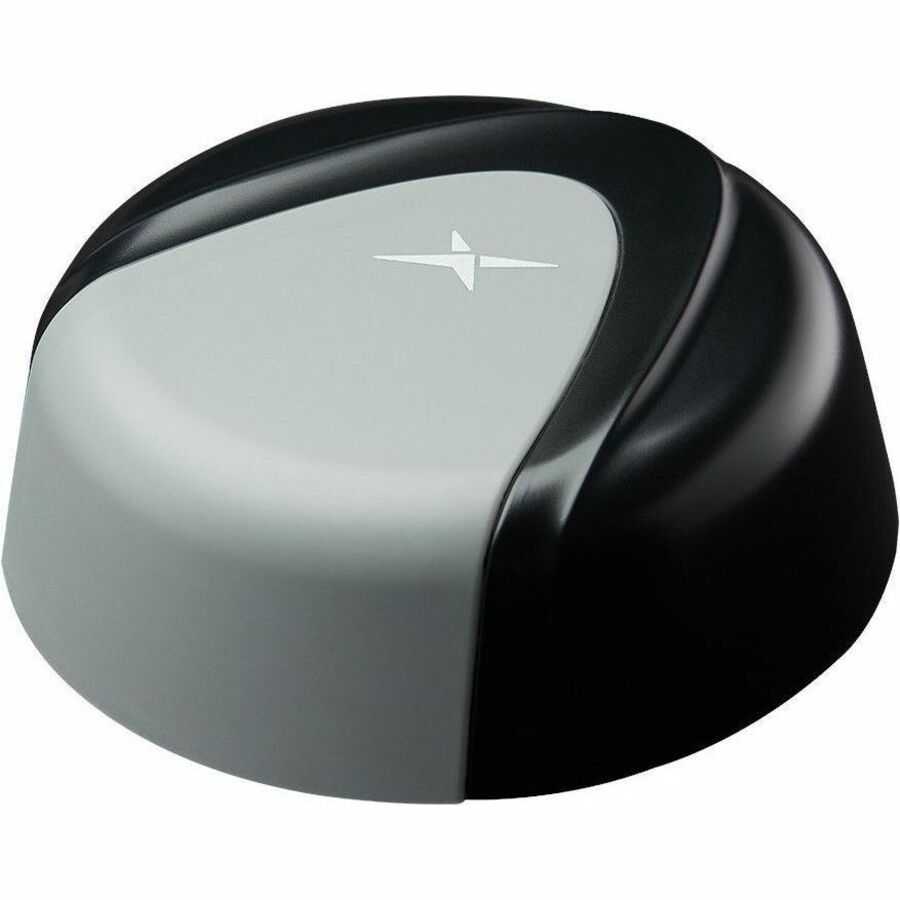

The Taoglas Synergy MA1508 is a 8-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust PC enclosure and base. The 9 antennas inside support 5G/4G, GPS/GLONASS/BeiDou, Wi-Fi (2.4GHz/5GHz). This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Typical Applications:

• Next Generation OEM Automotive Connectivity


• Multimedia, Navigation and Telematics Systems


• V2V, V2X and Fleet Management Applications


• Real-time HD Video Streaming


• First Net Responder Routers

The MA1508 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

The MA1508 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 8x 300mm RG-174 cables, terminating in SMA(M) connectors for 5G/4G MIMO 4X4, and RP SMA(M) for Wi-Fi MIMO 3X3. There is a 300mm RG-174 cable for GNSS terminating in an SMA(M) connector.

• 4 x 5G/4G(600MHz-6GHz) MIMO Antenna


• 3 x Wi-Fi 2.4GHz/5GHz MIMO Antenna


• 1 x GPS/GLONASS/BeiDou Antenna Front End GNSS SAW Filter


• IP67 Rated Waterproof


• High Efficiency/Peak Gain Outdoor Antenna


• Dimensions: 161*55mm


• Cable: 5m Braided TGC-200/RG-174


• Connectors: SMA(M) / RP-SMA(M)


• RoHS & REACH Compliant
