Omnitron Systems OmniConverter 10GPoE+/M PoE+, 2xSFP/SFP+, 8xRJ-45, 1xAC Powered Commercial Temp

Omnitron Systems OmniConverter 10GPoE+/M PoE+, 2xSFP/SFP+, 8xRJ-45, 1xAC Powered Commercial Temp

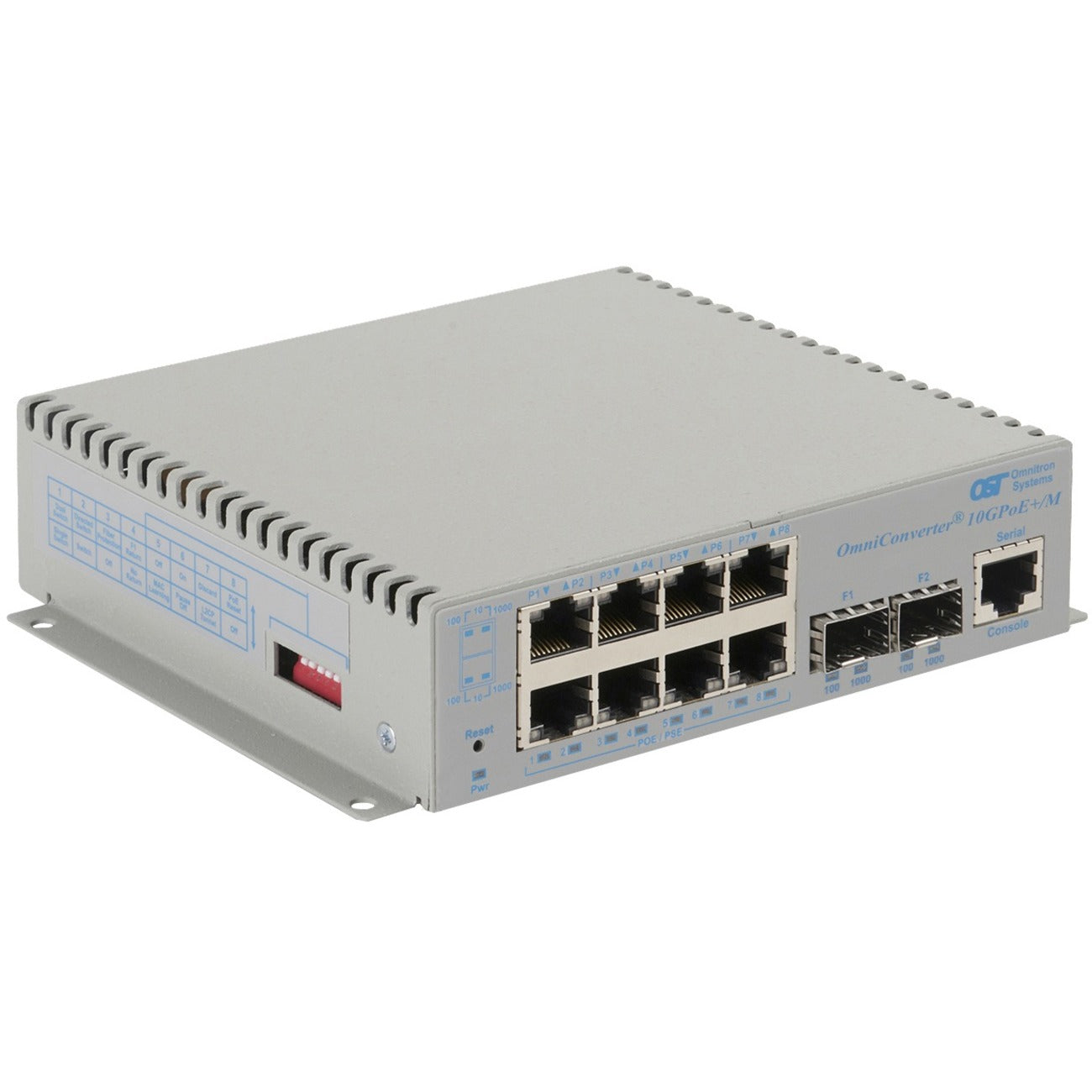

The OmniConverter 10GPoE+/M is a compact managed PoE and PoE+ Ethernet switch that feature two 1/10G uplink ports and eight 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.

The OmniConverter 10GPoE+/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The switches support Dual Device mode that enables the 10GPoE+/M to operate as two independent and isolated Ethernet switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.

The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Remote Power Reset and the Heartbeat Reset functions increase the networks reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.

All models can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. They are available with an external 100 to 240V AC power adapter or with a DC terminal connector.

• Effectively increases available bandwidth on your network


• Barrel plug/connector type for a secure, hassle-free operation


• Cascade to other network devices through the uplink port to expand your local area network


• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 10 ports


• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


• Wall Mountable form factor for your convenience and simplicity of usage


• Managed switch provides a reliable foundation for your network


• Gigabit Ethernet port for ultra-fast network speeds


• Optical Fiber media support ensures maximum convenience and great usability
