Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

Born for WLAN And IP Surveillance

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

6KV Port Lightning Protection
Maximum PoE Output Power 58W
PoE power up to 30W for each PoE port

6KV lighting protection PoE switch is the real monitoring private switch

In the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.

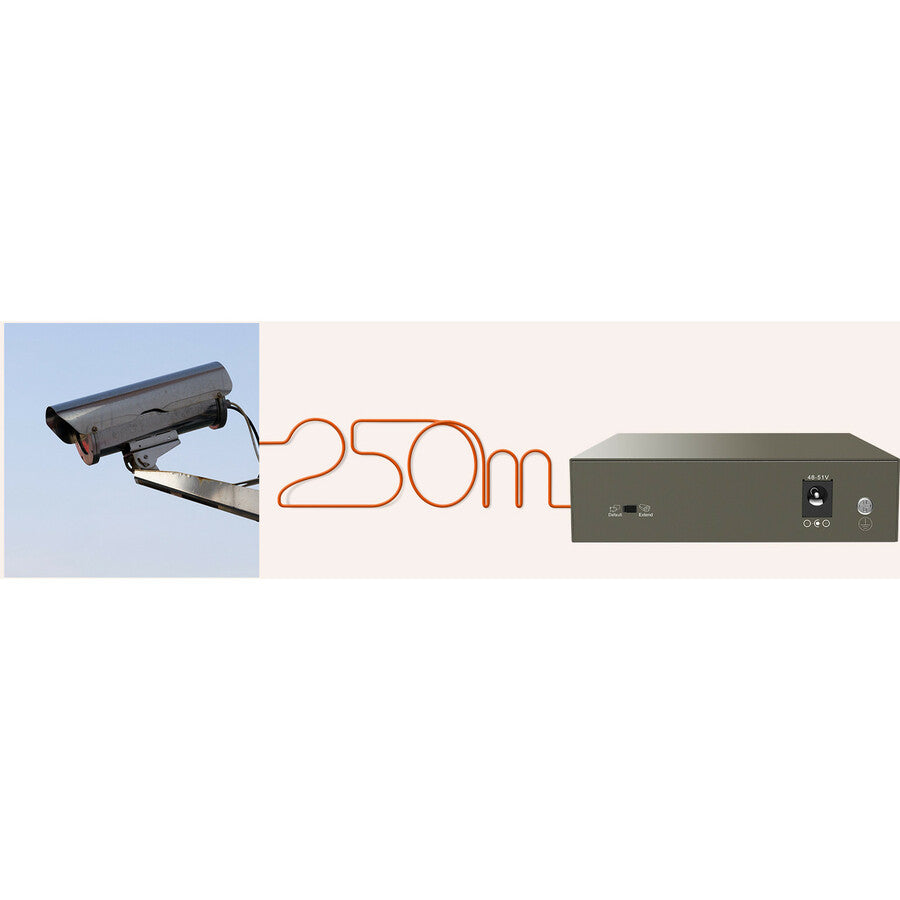

Up to 250 meters long distance transmission

beyond hundred meters transfer limitDue to the complex monitoring environment, when making cabling and networking, it very often to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit.

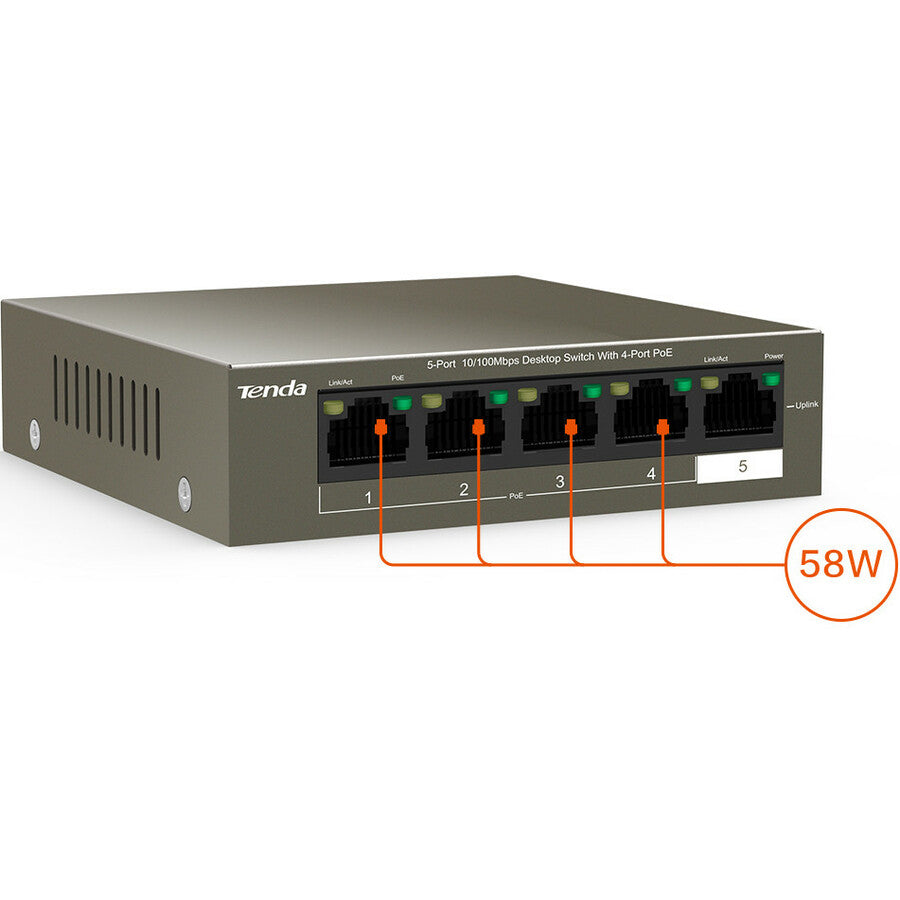

58W PoE power supply simplified wiring

Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.

• Effectively reduces downtime with improved network performance


• Quickly and easily set up a wired network with 5 networking ports


• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience


• The desktop installation makes it ideal for deployments outside the wiring closet


• Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
