TRENDnet Outdoor Power Supply, 15.8 Inch Display, 200W Power, 55V Voltage, The Outdoor IP68 Weatherproof Enclosure With Power Supply Model TI CA3K IS

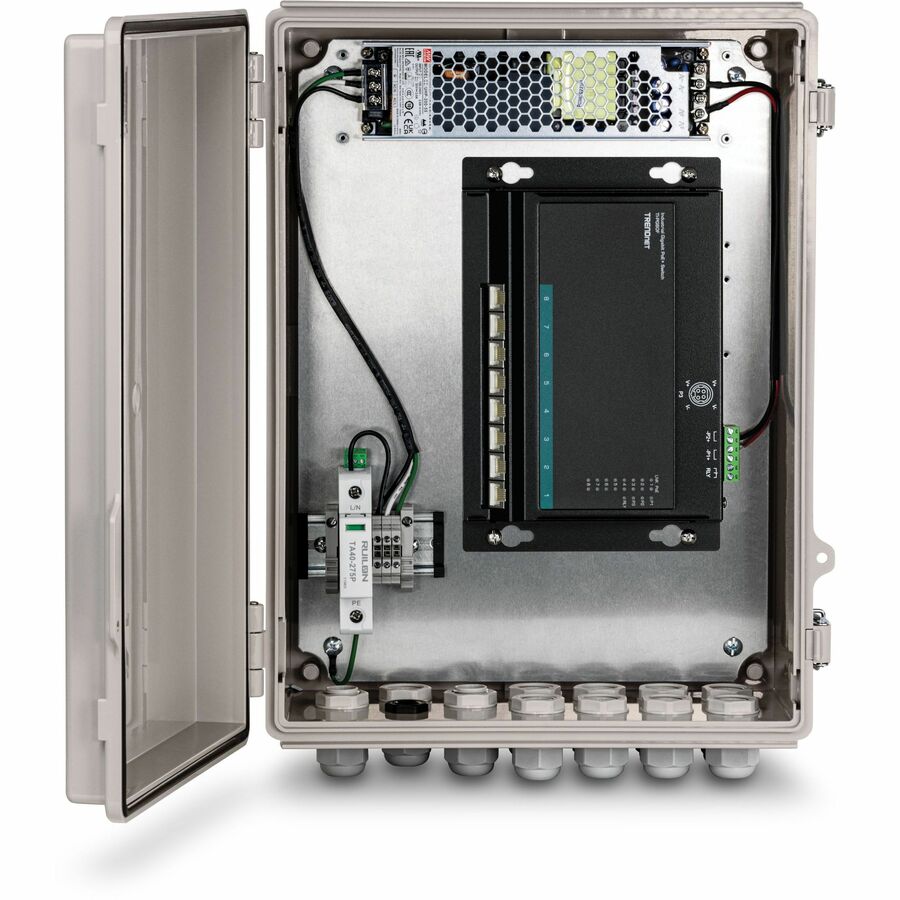

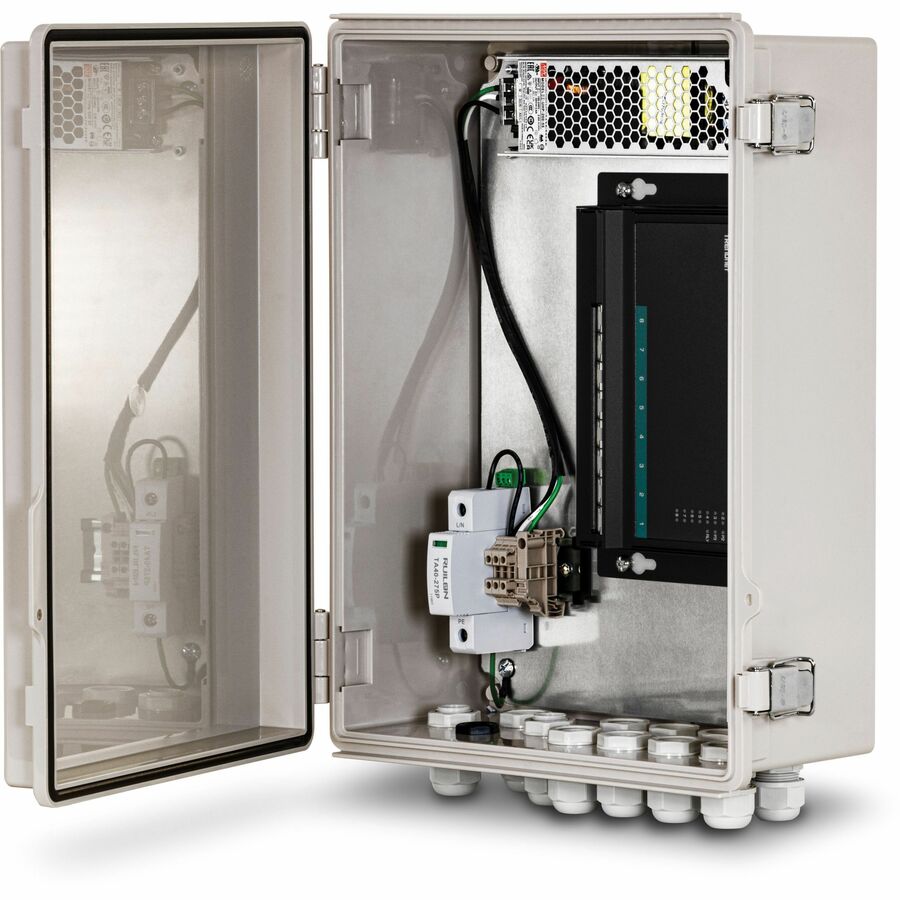

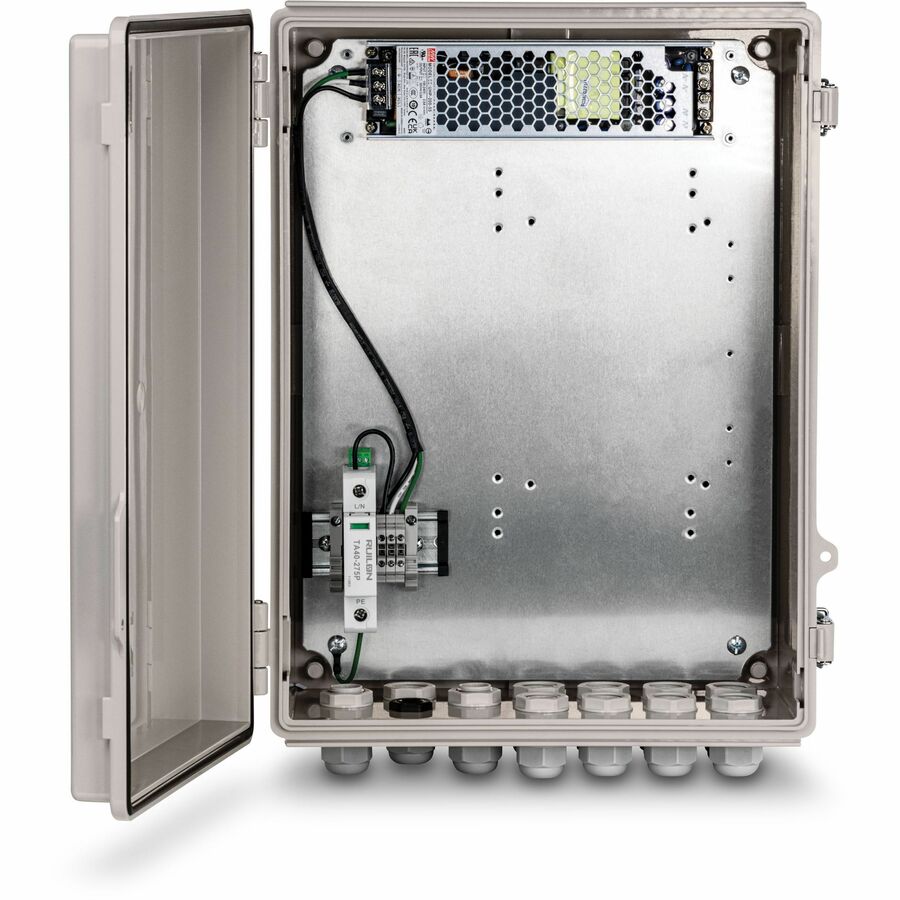

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply, model TI-CA3K, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network enclosure provide a safe and convenient way to install industrial devices while protecting them from the elements. An extreme operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 200W (55V DC, 3.6A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.

• POWER SUPPLY: This enclosure comes with a power supply that provides up to 200W (55V DC, 3.6A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.


• TRENDNET PROTECTION: We stand by our products. The TI-CA3K IP68 Power Supply Enclosure is secured with Lifetime Manufacturer Protection from TRENDnet. The Power Supply and Surge Protector come with 1-year Protection (U.S. and Canada Only)


• POWER SUPPLY SPECS: Input: 100-240V AC; Output 200W, 55V DC 3.6A; DIN-RAIL: TS-35/7.5 or 15; 18 AWG Power Cable Included


• SURGE PROTECTION: The power supply enclosure is equipped with a surge protector with 20kA @ 8/20 µs surge protection


• TRENDNET TI-BK01 BRACKET: This bracket will allow you to seamlessly fit TRENDnet flat switches (Models: TI-PG50F; TIPG80F; TI-PG62F; TI-PG102F) NOTE: Bracket Sold Separately.


• OUTDOOR RATED: This power supply box is IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.


• WIDE TEMPERATURE RANGE: The IP68 rated enclosure has an operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments


• INTERNAL MOUNTING DESIGN: The internal mounting design provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements.


• IMPACT PROTECTION: The enclosure is IK10 rated which means it is protected against 20 joules of impact. Equivalent to the impact of an 11.0 lb (5 kg) mass dropped from 15.8" (400 mm) above the impacted surface

More from the Manufacturer

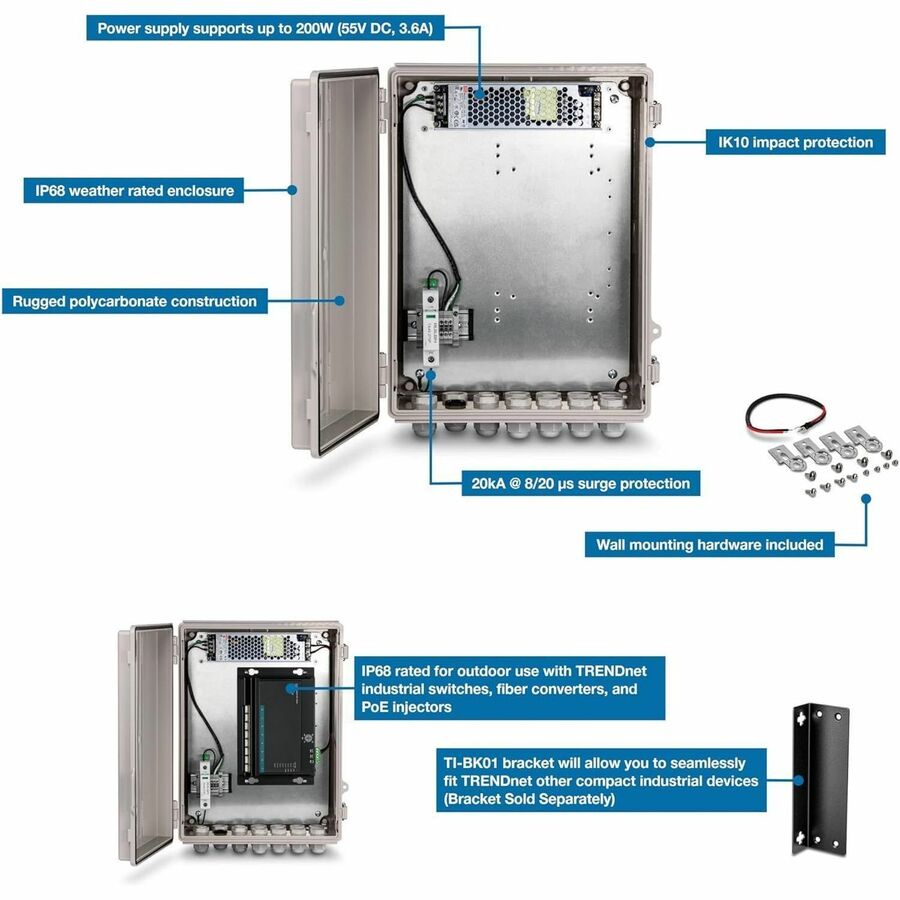

• IP68 weather rated enclosure


• IK10 impact protection


• Power supply supports up to 200W (55V DC, 3.6A)


• 20kA @ 8/20 µs surge protection


• Rugged polycarbonate construction

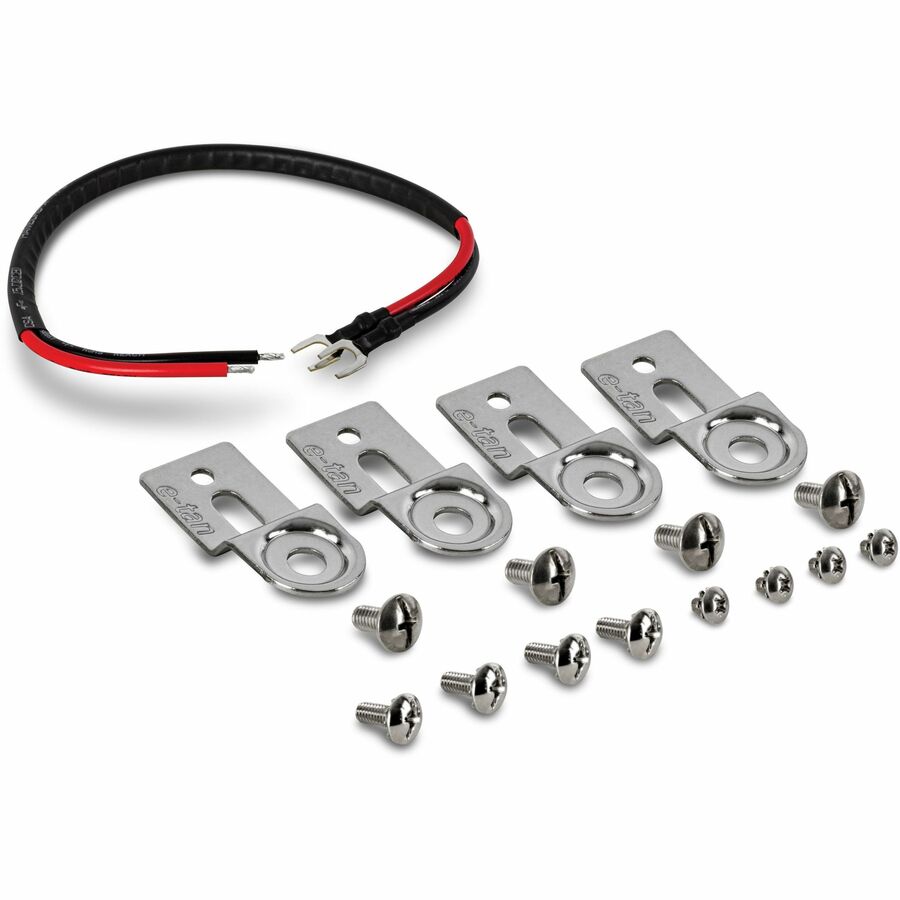

• Wall mounting hardware included


• Add TI-BK01 bracket to use with TRENDnet's industrial switches, fiber converters, and PoE injectors (sold separately)
