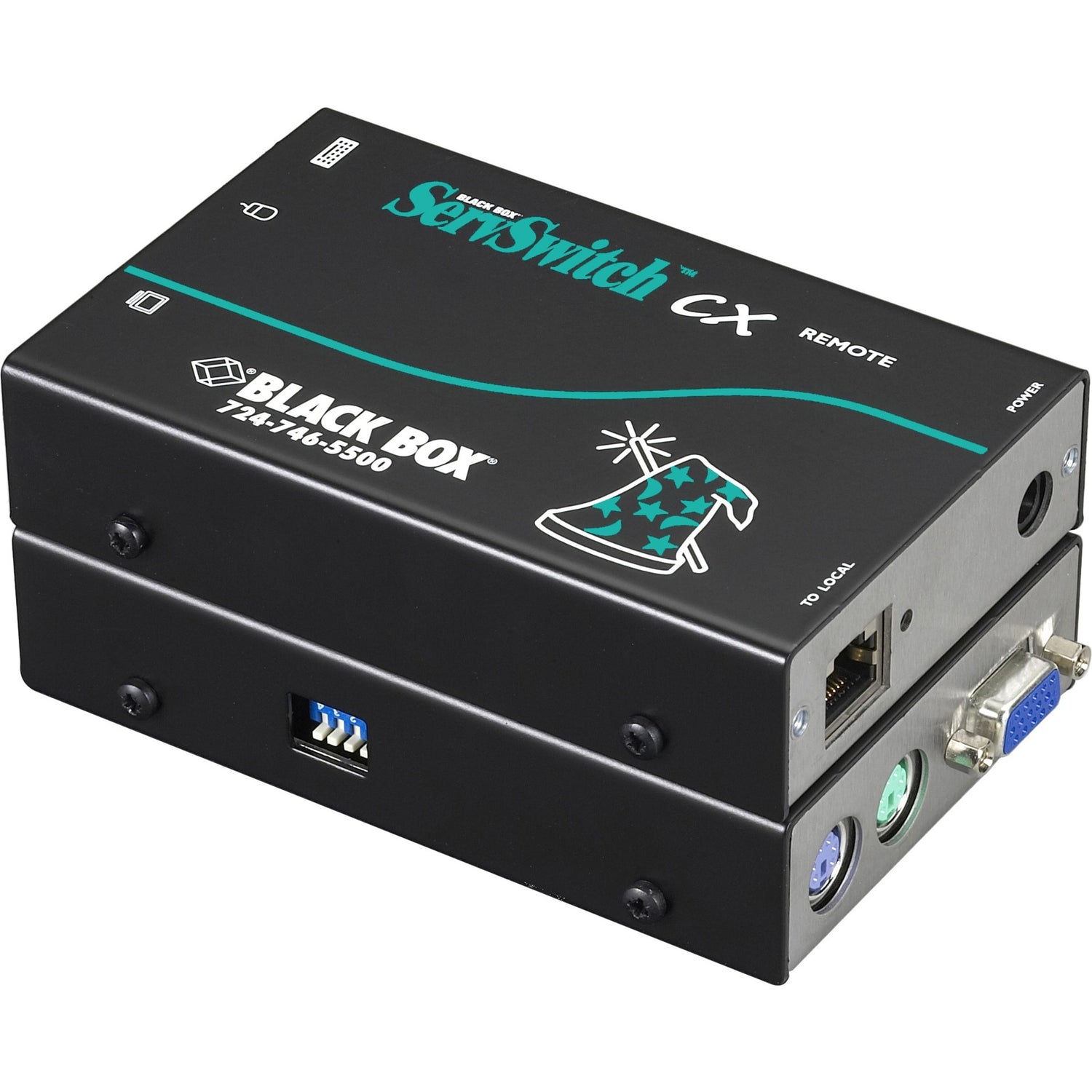

Black Box CX Series KVM Switch Remote Unit - VGA, PS/2 Console

Black Box CX Series KVM Switch Remote Unit - VGA, PS/2 Console

The CX User Station is part of the CX KVM Matrix technology and allows users to interface with the CX Switch and connected computers up to 980 feet away. The user station directly connects to a VGA monitor and a PS/2 keyboard and mouse where the user would normally sit. The user station can interface directly to a CX Matrix Switch, or can be directly connected to a CX Server Access Module for Point to Point KVM Extension. The extender can support video resolutions up to 1920x1200 when used with CATx cable less than 150 feet, however if used with longer CATx cable the video resolution will be smaller (i.e. 1280x1024 @ 980 feet).

• Does not support RGB Skew Compensation, use the KV04AS-REM or KV04AUS-REM


• Support for VGA video up to 1920x1200 & PS/2 Keyboard & Mouse


• Connect with CX KVM Matrix Switch or use in a Point to Point KVM Extension via the CX Server Access Modules up to 980 feet away
