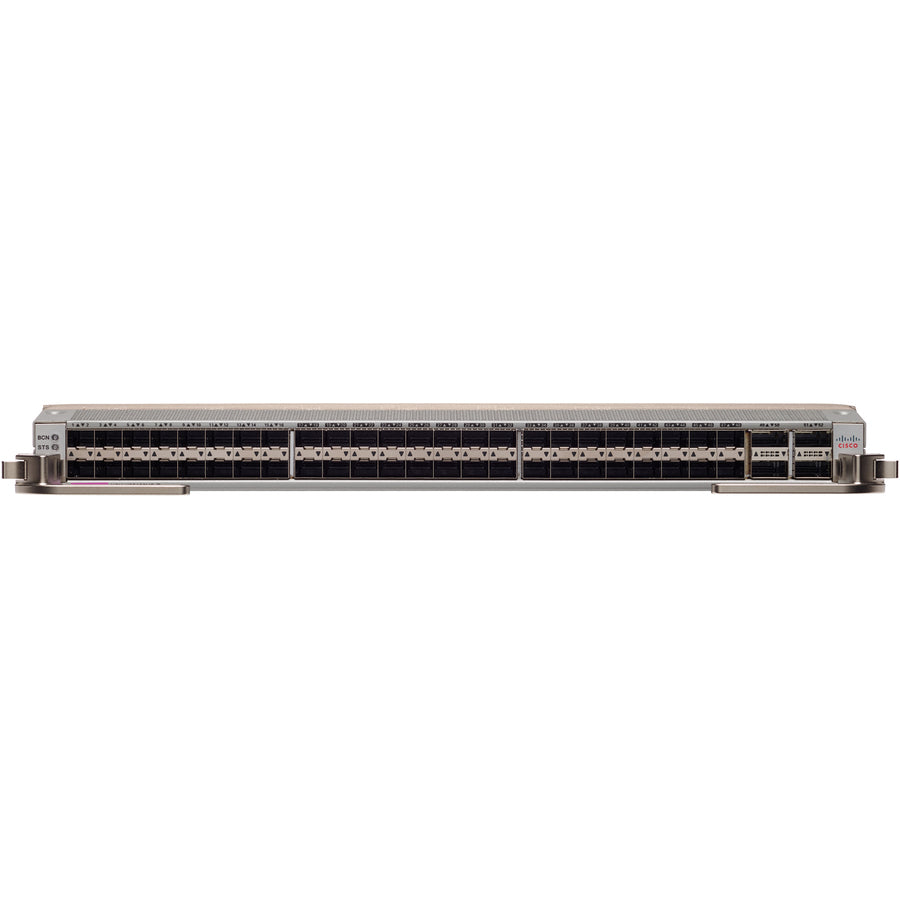

Cisco Nexus X96136YC-R Expansion Module

Cisco Nexus X96136YC-R Expansion Module

These chassis support the Cisco Nexus 9500 R-Series line cards and fabric modules. These line cards offer 100-, 40-, 25-, 10-, and 1-Gigabit Ethernet ports with deep buffers and large tables, delivering up to 9.6 Terabits per second (Tbps) per slot, for a total of 76.8-Tbps in the 8-slot chassis.

Cisco Nexus 9500 Platform R-Series Line Cards

The Cisco Nexus 9500 platform is designed as a Clos fabric that interconnects each line card directly with each rear-mounted fabric module. All traffic between the line cards is load balanced across all fabric modules providing optimal bandwidth distribution within the chassis. This load-balancing capability provides enhanced system reliability and redundancy. The switch continues to operate even in the event of a loss of a fabric module, albeit at a lower capacity, as the remaining fabric modules continue to provide switching capacity to the line cards. Some of these line cards can connect to 1 or 2 additional fabric modules to provide N+1 or N+2 redundancy.

• Expansion Module offers enhanced dependability with maximum productivity


• With 25GBase-X technology, enjoy up to 1000Gbps data transfer rate over supported network cable


• Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity


• Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components


• Expansion Module with data networking application/usage for maximum productivity and usability
