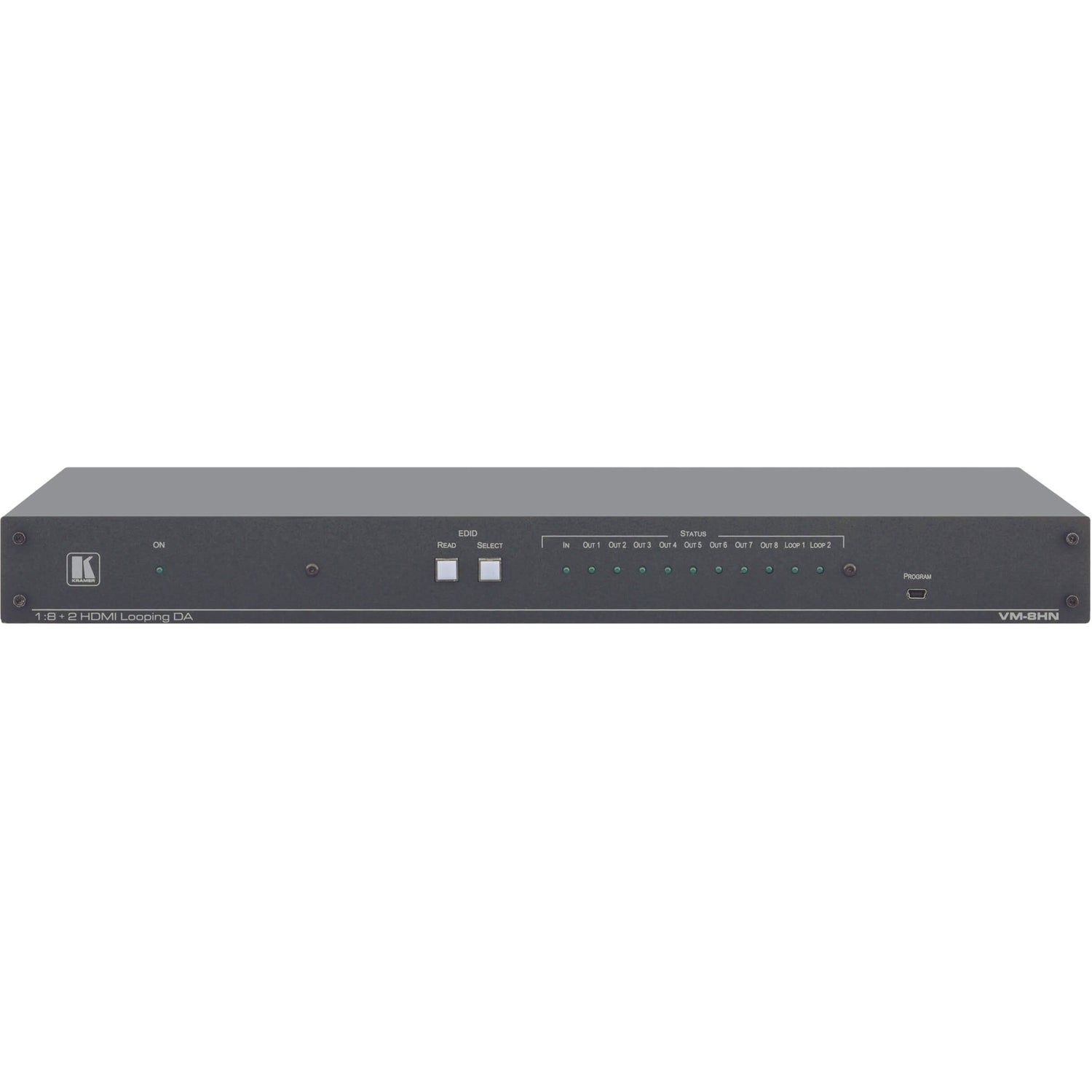

Kramer 1:8+2 4K UHD HDMI Distribution Amplifier

Kramer 1:8+2 4K UHD HDMI Distribution Amplifier

The VM-8HN is a looping distribution amplifier for 4K UHD HDMI signals. It reclocks and equalizes the signal and distributes it to eight identical outputs and two loops. It supports resolutions up to 4K@60Hz (4:2:0) UHD.

• Resolution Support - Up to 4K@60Hz (4:2:0) UHD.
• Max. Data Rate - 10.2Gbps (3.4Gbps per data channel).
• HDTV Compatible.
• HDCP Compliant.
• HDMI Support - Deep Color, x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
• 3D Pass-Through.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Default EDID - For fast and efficient connection of the unit.
• Video Wall Support - Mutes the video on all displays and simultaneously unmutes them when all inputs are ready; with selectable output delay.
• Automatic 5V Turn Off - When no active input signal is detected, the unit turns off 5V on the output allowing attached devices to power off.
• MAC Settings - Enables and disables HDCP support on the input allowing the source to transmit a non-HDCP signal if required.
• Force RGB - Modifies the EDID saved on the input to support RGB format (i.e., not YUV format).
• Active Output LED Indicators.
• 2 Looping Outputs - Allow monitoring and cascading to additional DAs.
• Worldwide Power Supply - 100-240V AC.

• This Audio/Video Distribution Amplifier accepts audio and video signals from a single source and distributes it to multiple systems


• Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
