Kramer 1:3 4K60 4:4:4 HDCP 2.2 HDMI 2.0 DA

Kramer 1:3 4K60 4:4:4 HDCP 2.2 HDMI 2.0 DA

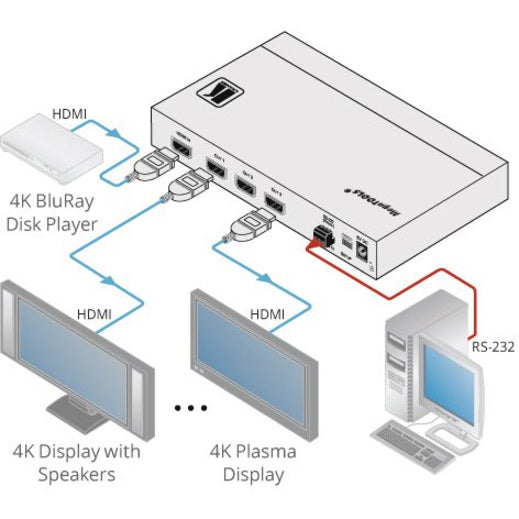

The VM-3H2 is a 1:3 distribution amplifier for up to 4K@60Hz (4:4:4) HDMI 2.0 signals, complying with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to three identical outputs.

• Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
• Max. Resolution - 4K@60Hz (4:4:4).
• HDMI Signal Transmission - HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, locking, processing and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
• Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
• Field Maintenance - RS-232 connection for simple field firmware upgrade with Kramer K-Upload tool, easy EDID handling with Kramer EDID-Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
• Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.

• Audio - E


• Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.


• Force RGB


• HDCP authorization control


• Compliance - HDMI 2.0, HDCP 2.2


• Simple, intelligent EDID operation


• Bandwidth - Up to 17.82Gbps


• Resolution - Up to 4K@60Hz (4:4:4)


• 1:3 HDMI distributor
