Phybridge NVT Phybridge 32-Channel StubEQ Active Receiver Hub, 1.7 in, RJ45, NV-3242, Wired

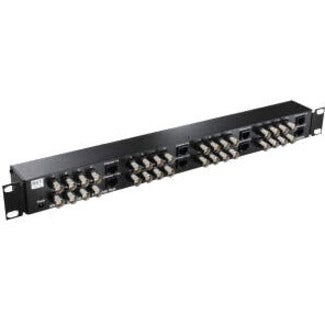

NVT Phybridge 32-Channel StubEQ Active Receiver Hub
Features:

• Adaptive StubEQTM fully automatic 2-band equalization provides adjustment-free equalization every time
• Compact rack-mountable 19" 1U high enclosure features 32 channels
• Full motion CCTV video at distances up to 1,500ft (460km) when used with any passive NVT transceiver or hub; 2,000ft (600m) when used with the NV-653T active transmitter
• RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptors (included)
• Exceptional interference rejection
• Built-in transient protection and ground-lifting
• Compatible with qualified UTP cameras
• Includes rack mount hardware and eight NV-RJ45A adaptors
• Limited lifetime warranty

Employing NVT's latest generation StubEQTM technology, the NV-3242 is a 32-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category 2 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content. The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "humbars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.

• Video Extender Receiver is all you need for dependable and productive audio/video transmission


• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference


• 1509186.35 ft maximum operating distance for reliable coverage and maximum portability


• Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
