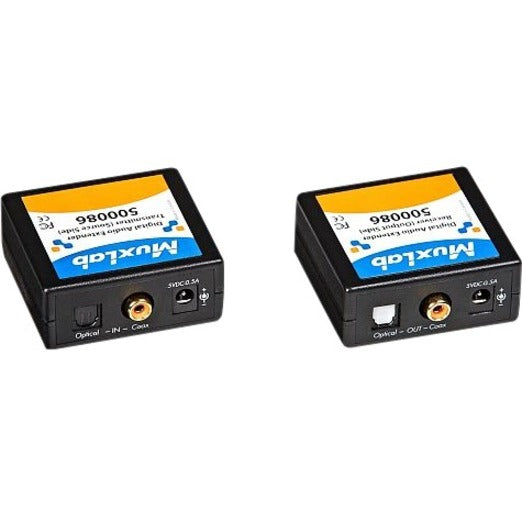

MuxLab Digital Audio Extender Kit (500086) is a versatile digital audio standards extender and converter, 1 m, Wired

The MuxLab Digital Audio Extender Kit (500086) is a versatile digital audio standards extender and converter.

The product allows one (1) Digital Coax (S/PDIF), or Digital Optical (TOSLINK) source to be connected to a Digital Audio Receiver supporting either Digital Coax (S/PDIF), or Digital Optical (TOSLINK) inputs. Outputs on the 500086 receiver unit are simultaneous.

The audio transmission signal can be distributed to up to a distance of 500 ft / 150m in a point-to-point configuration over single Cat5e/6.

The extender supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolby® Digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby Digital® 5.1, DTS, and Dolby® True HD).

• 1m Digital Optical (TOSlink) cable included


• Power over cable - either Tx or Rx unit can be powered


• Input (Rx): one (1) RJ45


• Switch for selecting between S/PDIF and TOSlink inputs on source side (Tx unit)


• Output (Tx): one (1) RJ45


• Output: one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink) - outputs are simultaneous


• Input (Tx): one (1) Digital Coax RCA (S/PDIF), one (1) Digital Optical (TOSlink)


• Bit rate: 24bit S/PDIF compressed and uncompressed bit stream


• Sample rate: up to 96kHz


• Converts Digital Optical (TOSlink) to Digital Coax (S/PDIF), or Digital Coax (S/PDIF) to Digital Optical (TOSlink)
