ACRE ComNet Video Transmitter/Data Transceiver (1310/1550 nm), 1.1 in, Coax, M1, Wired

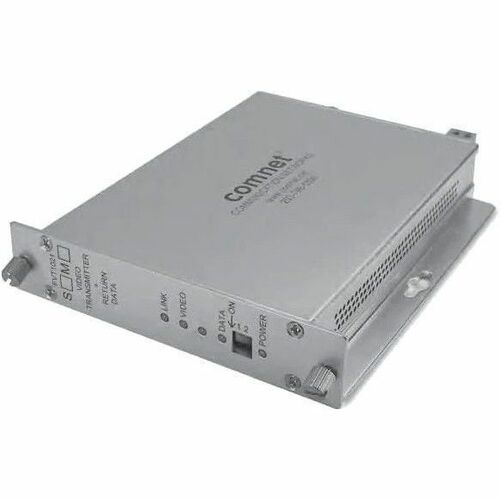

ComNet Video Transmitter/Data Transceiver (1310/1550 nm)

The ComNet™ FVT/FVR1021 series video transmitter/ receiver and data transmitter/receiver supports the simultaneous transmission of short-haul quality 10-bit digital video and return data over one multimode or single mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces. The FVT/FVR1021 allows the user to set the data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.


• Integrated WDM for greater product reliability


• No In-field electrical or optical adjustments


• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters


• Supports RS-232 and RS-422 data interfaces


• Supports Manchester and bi-phase data


• Full Color Compatibility


• Exceeds RS-250C Short-Haul quality


• Compatible with all NTSC, PAL, or SECAM CCTV camera systems


• 10-bit Digital Video Transmission
